2016 Kawasaki Vulcan® S Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

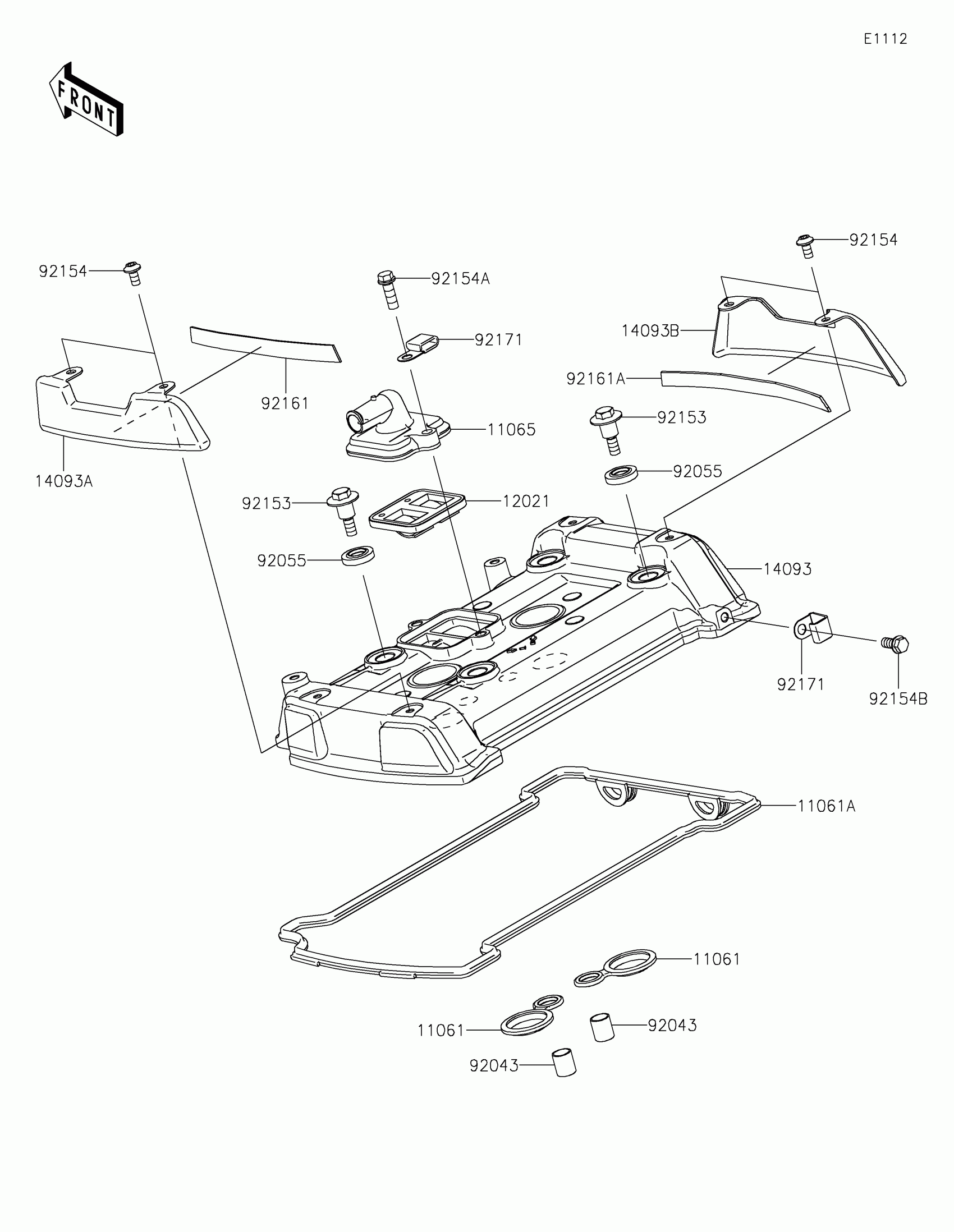

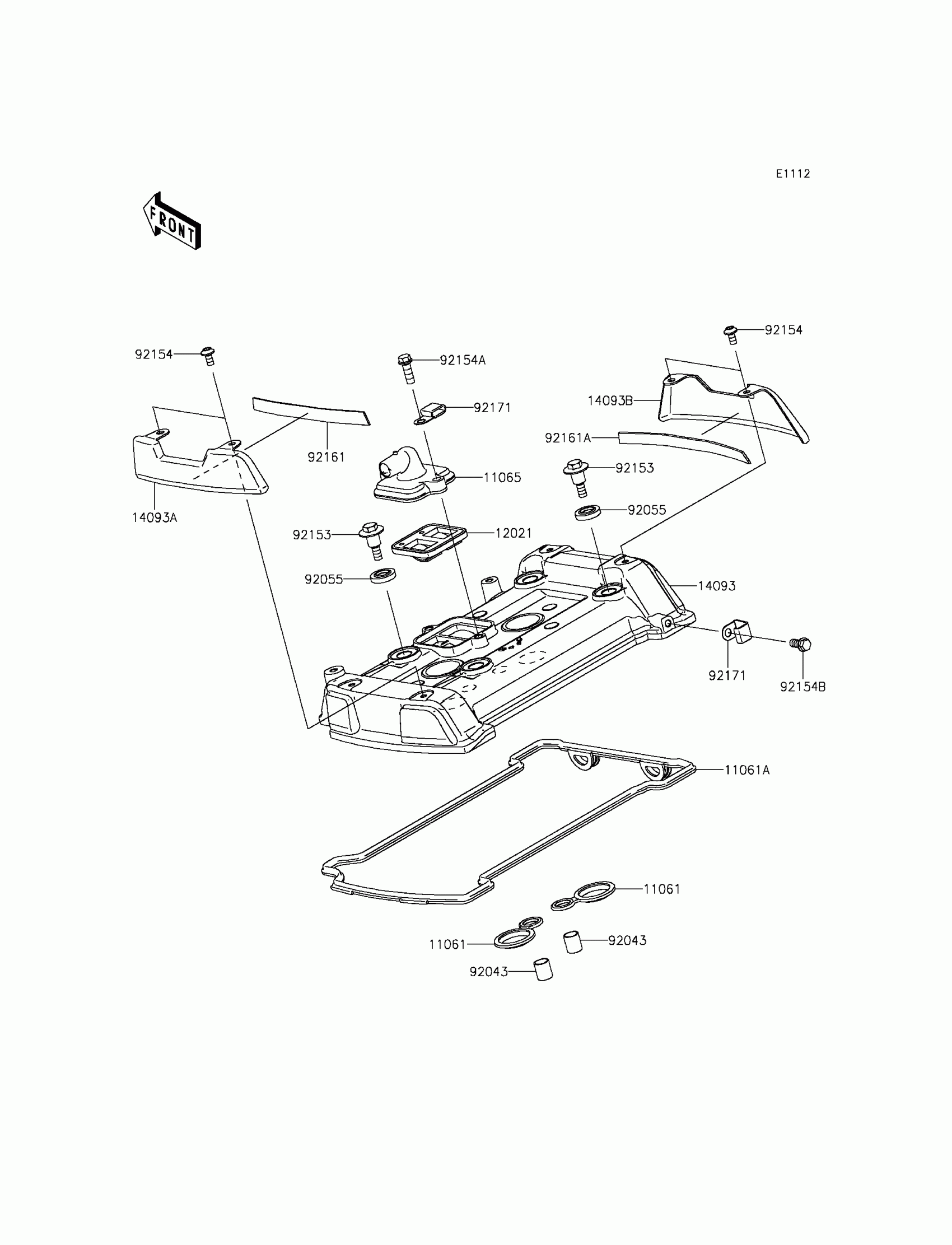

2016 Kawasaki Vulcan® S Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$8.95

In stock

11061A

GASKET,HEAD COVER

11061-0926

1

$33.70

In stock

11065

CAP

11065-0709

1

$37.74

In stock

12021

VALVE-ASSY-REED

12021-0708

1

$81.59

In stock

14093

COVER,HEAD

14093-0053

1

$136.14

In stock

14093A

COVER,DRESS,LH

14093-0361

1

$71.95

In stock

14093B

COVER,DRESS,RH

14093-0362

1

$78.27

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

1

$7.98

In stock

92153

BOLT,HEAD COVER

92153-0793

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1691

1

$1.32

In stock

92154A

BOLT,FLANGED,6X18

92154-1775

1

$0.68

In stock

92154B

BOLT,FLANGED,6X12

92154-1776

1

$0.69

In stock

92161

1

$1.32

In stock

92161A

1

$1.47

In stock

92171

CLAMP

92171-0813

1

$8.46

In stock
