2016 Kawasaki Vulcan® S Throttle Diagram

← All diagrams

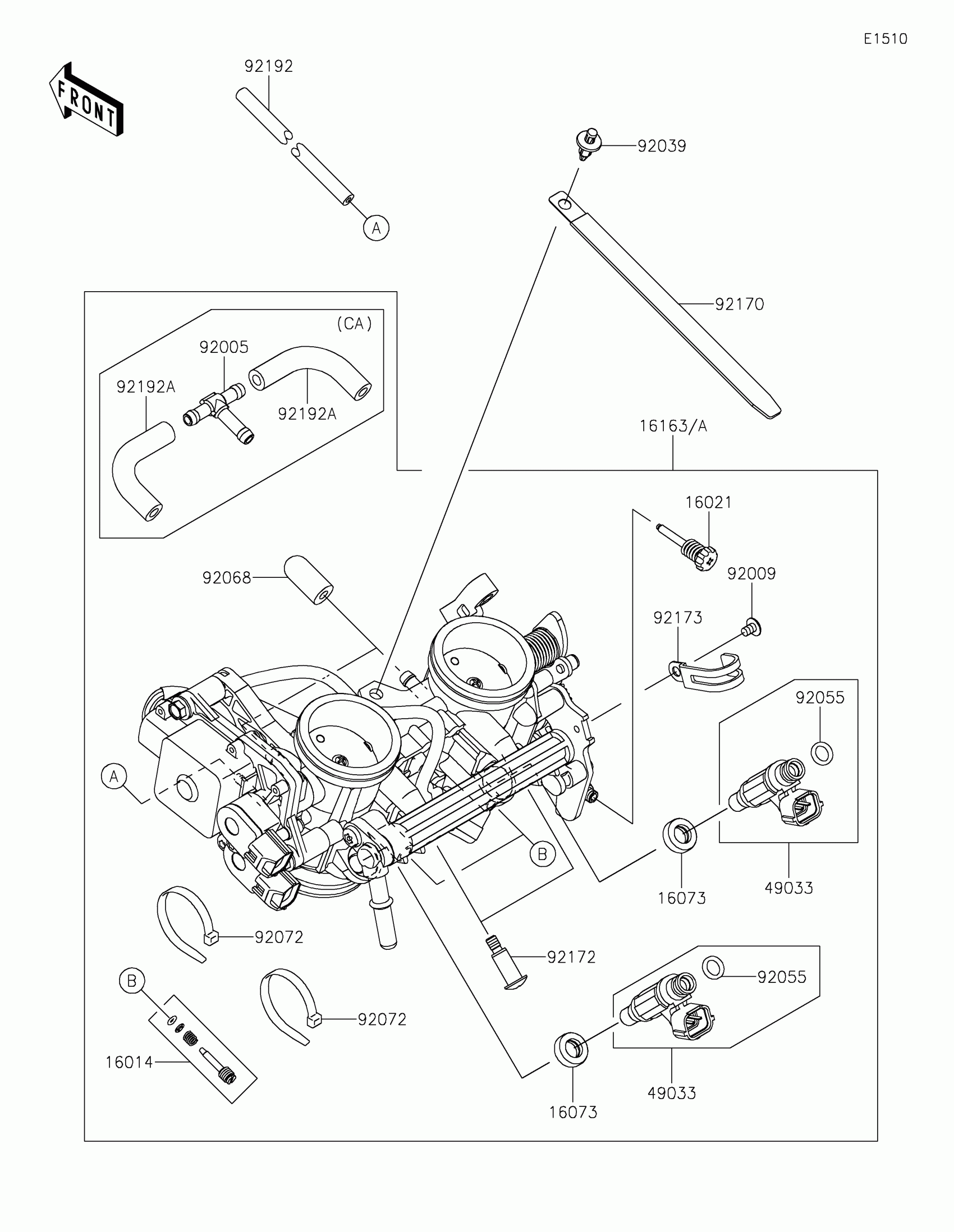

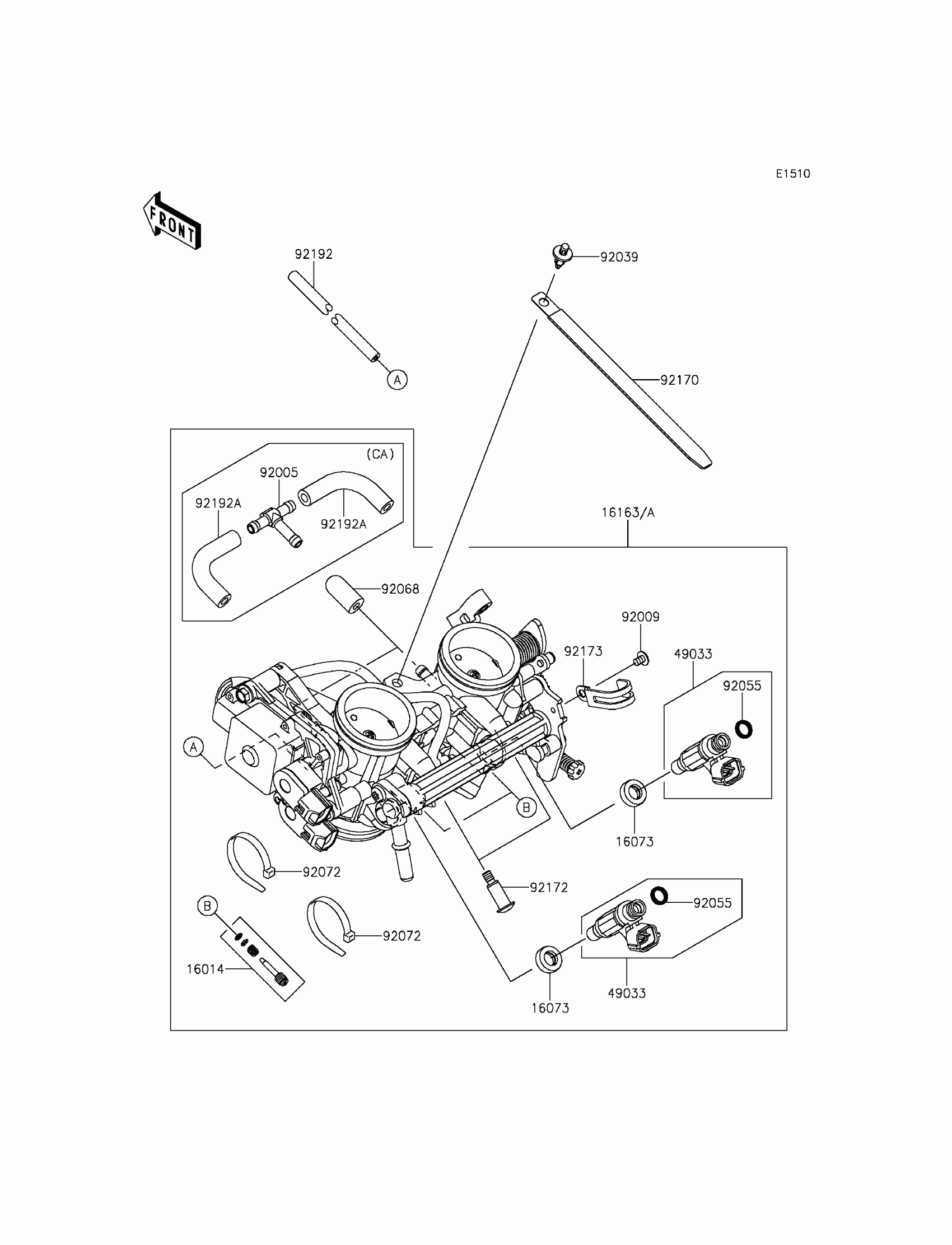

Find the part on the Throttle diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163A

THROTTLE-ASSY

16163-0838

1

$819.75

In stock

49033

NOZZLE-INJECTION

49033-0011

1

$83.76

In stock

92005

FITTING,3WAY

92005-0730

1
Out of stock

92009

SCREW,CLAMP

92009-1860

1
Out of stock

92039

RIVET

92039-0068

1

$2.42

In stock

92055

1

$1.64

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock

92172

1

$2.29

In stock

92173

CLAMP

92173-0288

1

$5.46

In stock

92192

TUBE,3X6.7X300

92192-0977

1
Out of stock

92192A

TUBE

92192-1045

1
Out of stock
