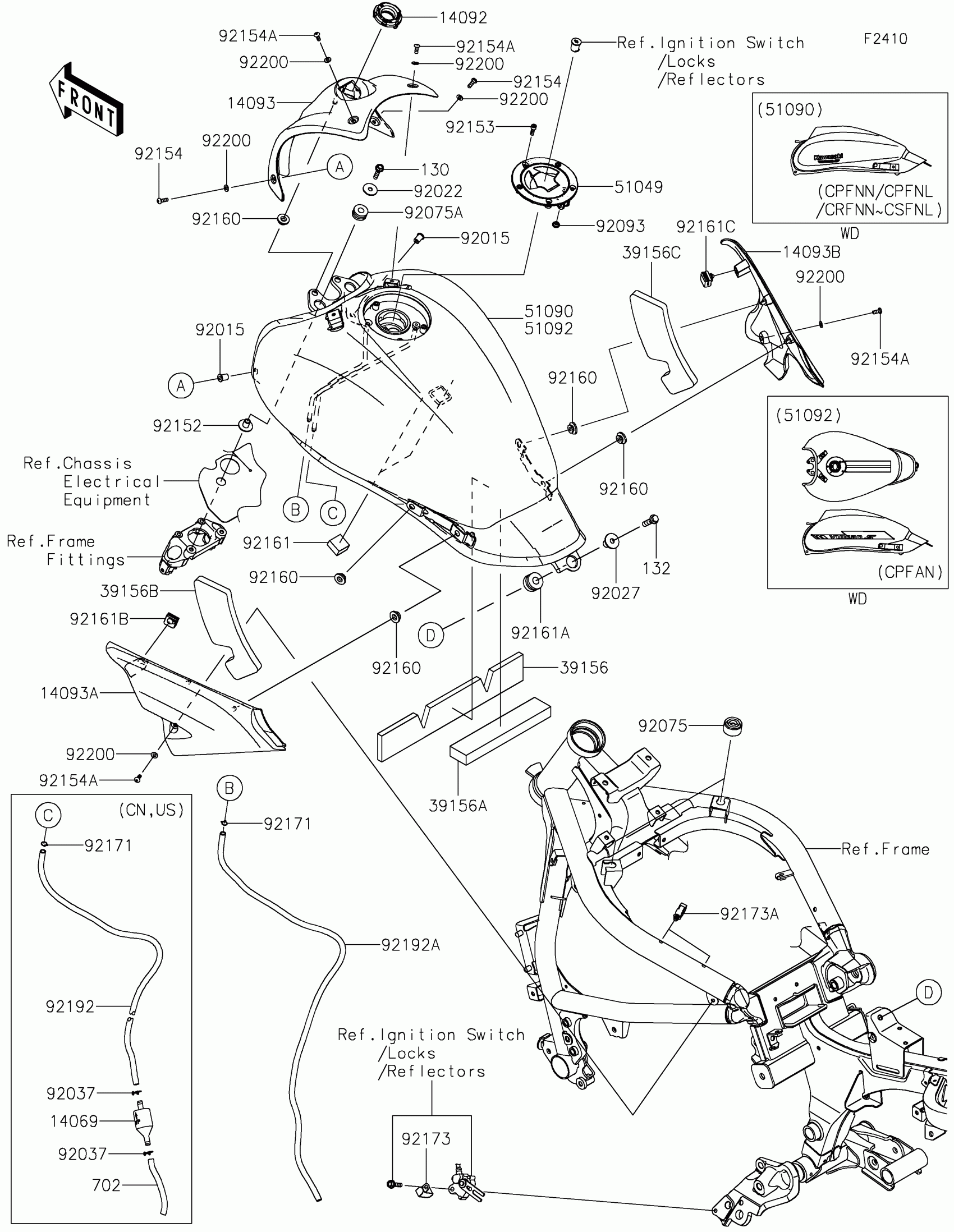

Kawasaki Vulcan® S Fuel Tank Diagram

#

Description
Price

14092

COVER,IGNITION SW.

14092-1033

$3.82

14093

COVER,TANK,FR,F.S.BLACK

14093-0105-18T

$156.04

14093A

COVER,TANK,LH

14093-0106

$80.06

14093B

COVER,TANK,RH

14093-0107

$77.52

39156

PAD,53X334X10

39156-1833

$48.76

39156A

PAD,38X200X20

39156-1893

$42.92

39156B

PAD,TANK COVER,LH

39156-1929

$8.43

39156C

PAD,TANK COVER,RH

39156-1930

$10.64

51049

CAP-TANK,FUEL

51049-0714

$139.17

51089C

TANK-COMP-FUEL,C.M.ORANGE

51089-5324-53P

$1,069.81

51089D

TANK-COMP-FUEL,U.C.WHITE

51089-5327-53Q

$989.10

92022

WASHER,7X24X1.6

92022-228

$2.99

92027

COLLAR,L=19.3

92027-1780

$4.93

92075

DAMPER

92075-015

$3.81

92075A

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.5X10X13.1

92152-0910

$1.44

92153

BOLT,SOCKET,5X16

92153-1616

$1.04

92154

BOLT,SOCKET,5X16

92154-1470

$1.14

92154A

BOLT,SOCKET,5X12

92154-1471

$1.14

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,T=13

92161-0792

$3.27

92161A

DAMPER,12X28X17

92161-1494

$2.44

92161B

DAMPER,TANK COVER,LH

92161-1679

$1.88

92161C

DAMPER,TANK COVER,RH

92161-1744

$2.25

92171

CLAMP,8X0.7

92171-1973

$1.04

92173

CLAMP

92173-0833

$3.29

130

BOLT-FLANGED,6X25

130CA0625

$3.39

132

BOLT-FLANGED-SMALL,8X30

132BA0830

$3.39

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92192A

TUBE,DRAIN,6X9X870

92192-1433

$7.41

92200

WASHER,5.3X11X1

92200-0973

$0.81

92210

NUT,WELL,5MM

92210-0498

$5.58
