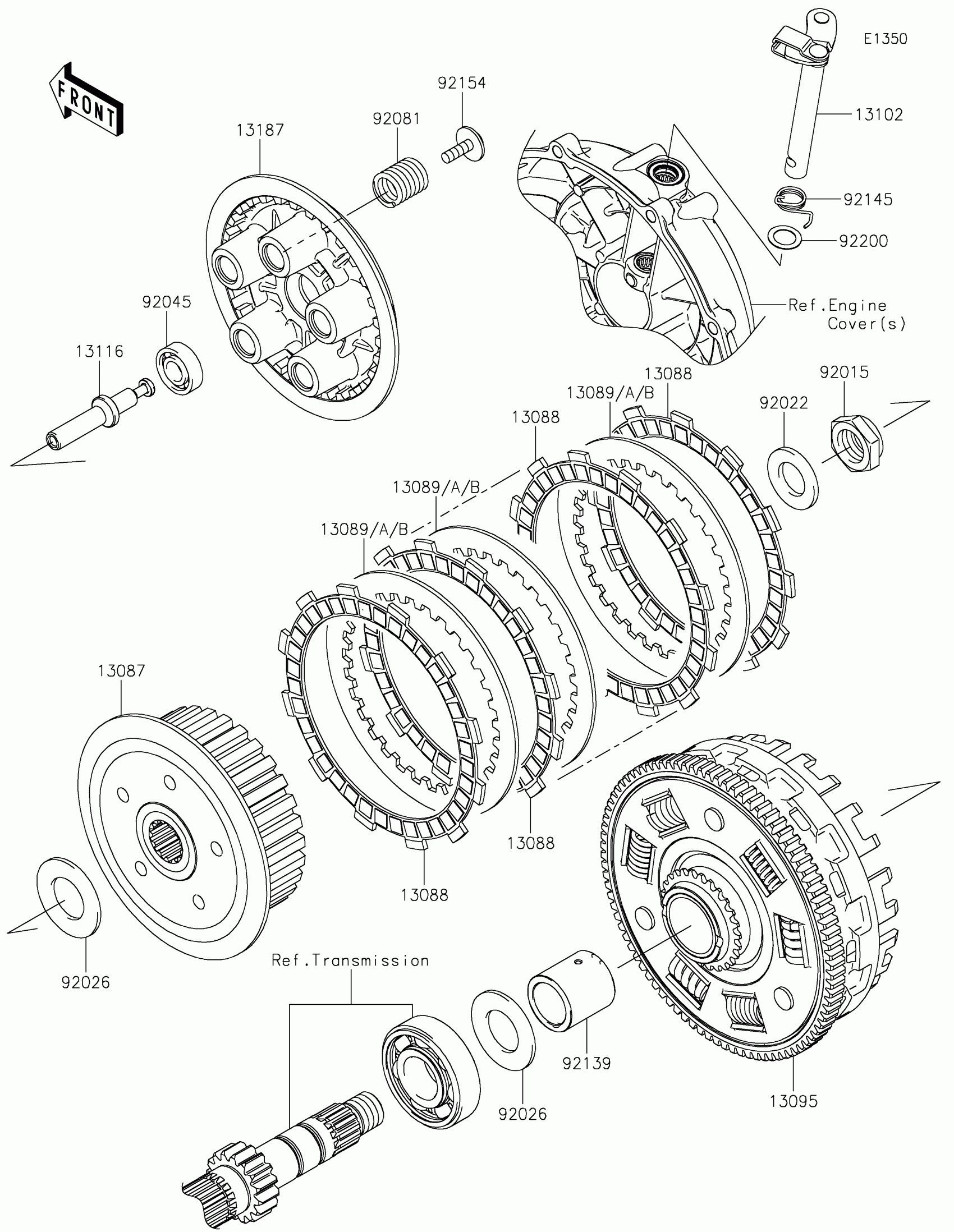

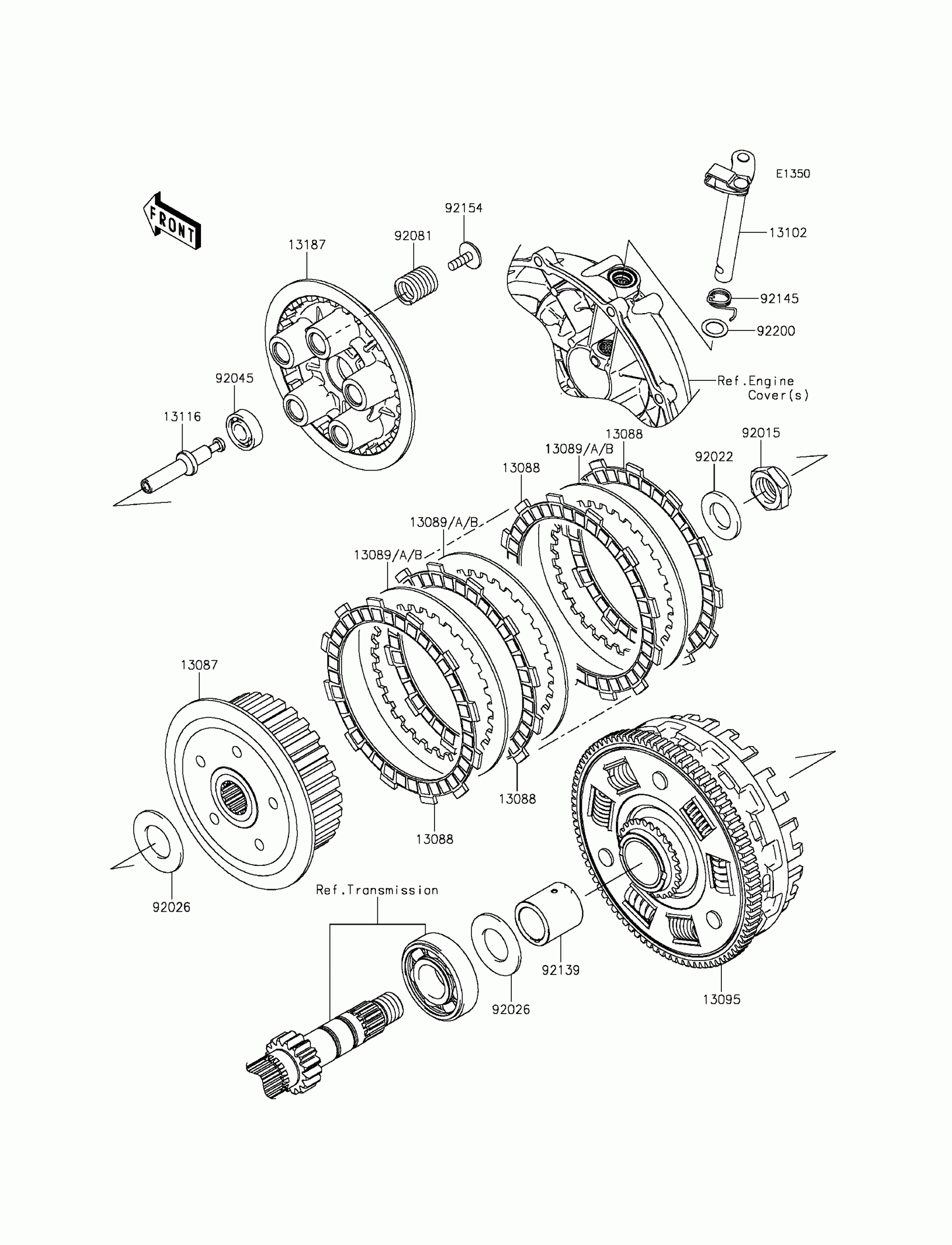

Find the part on the Clutch diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0046

1

$149.30

In stock

13088

PLATE-FRICTION

13088-1105

1

$12.27

In stock

13089

PLATE-CLUTCH,T=2.3

13089-0016

1

$10.10

In stock

13089A

PLATE-CLUTCH,T=2.6

13089-0017

—

$12.71

In stock

13089B

PLATE-CLUTCH,T=2.0

13089-026

—

$10.14

In stock

13095

HOUSING-COMP-CLUTCH

13095-0559

1

$435.07

In stock

13102

RELEASE-COMP-CLUTCH

13102-0037

1

$45.93

In stock

13116

ROD-PUSH

13116-0035

1

$20.41

In stock

13187

1

$82.13

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-0716

1
Out of stock

92045

1

$12.85

In stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

92139

BUSHING

92139-0710

1

$30.39

In stock

92145

1

$6.02

In stock

92154

BOLT,UPSET-WP,6X20

92154-0079

1

$4.39

In stock

92200

WASHER,12X18.5X0.5

92200-1487

1
Out of stock
