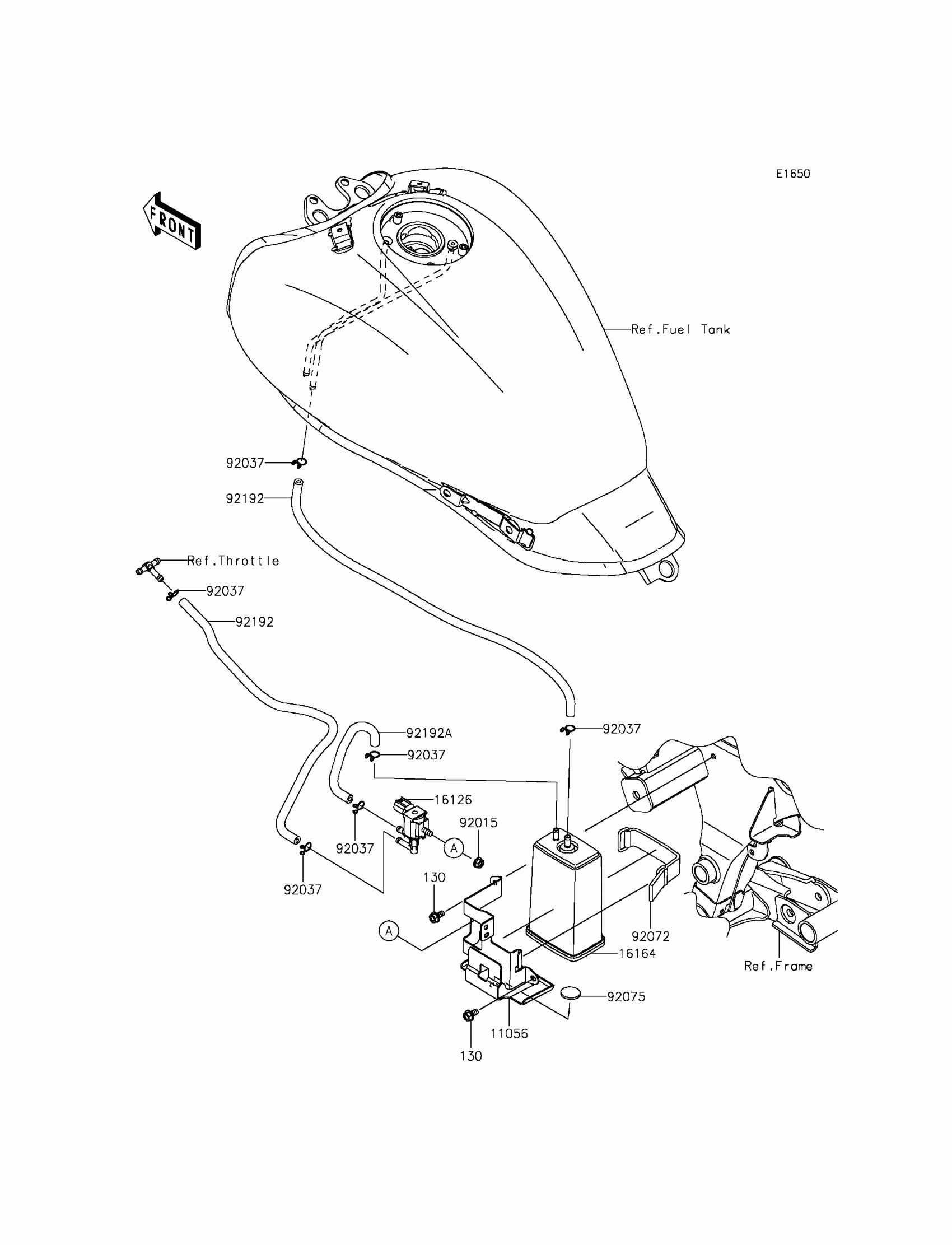

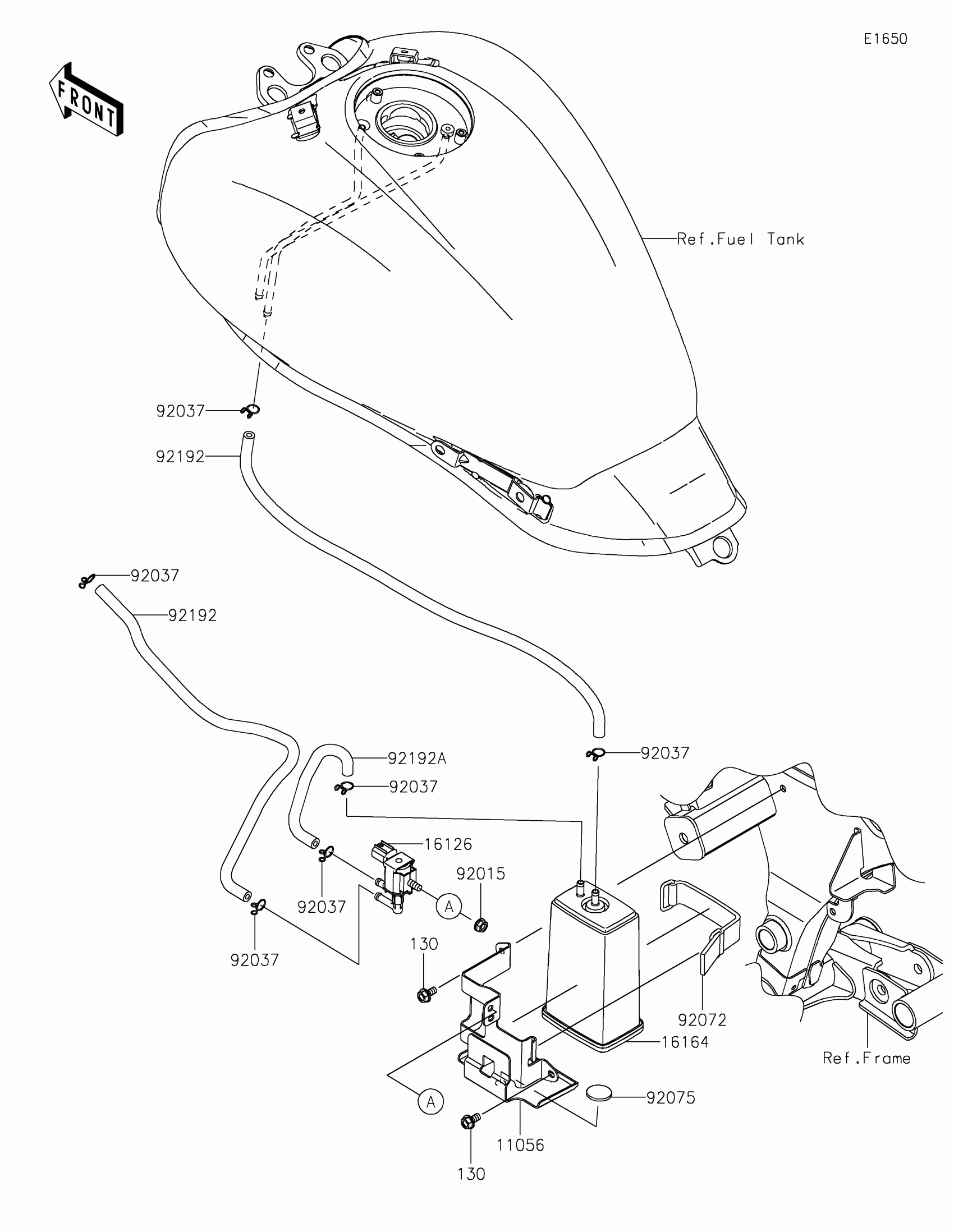

Kawasaki Vulcan® S Fuel Evaporative System(CA) Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

11056

BRACKET

11056-3991

$19.64

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-147

$5.61

92072

BAND,L=90

92072-0135

$13.62

92075

DAMPER,RUBBER

92075-261

$3.85

92192

TUBE,5X10.4X470&40

92192-1385

$55.92

92192A

TUBE,CANISTER-VALVE

92192-1386

$30.28
