2016 Kawasaki Vulcan® S Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

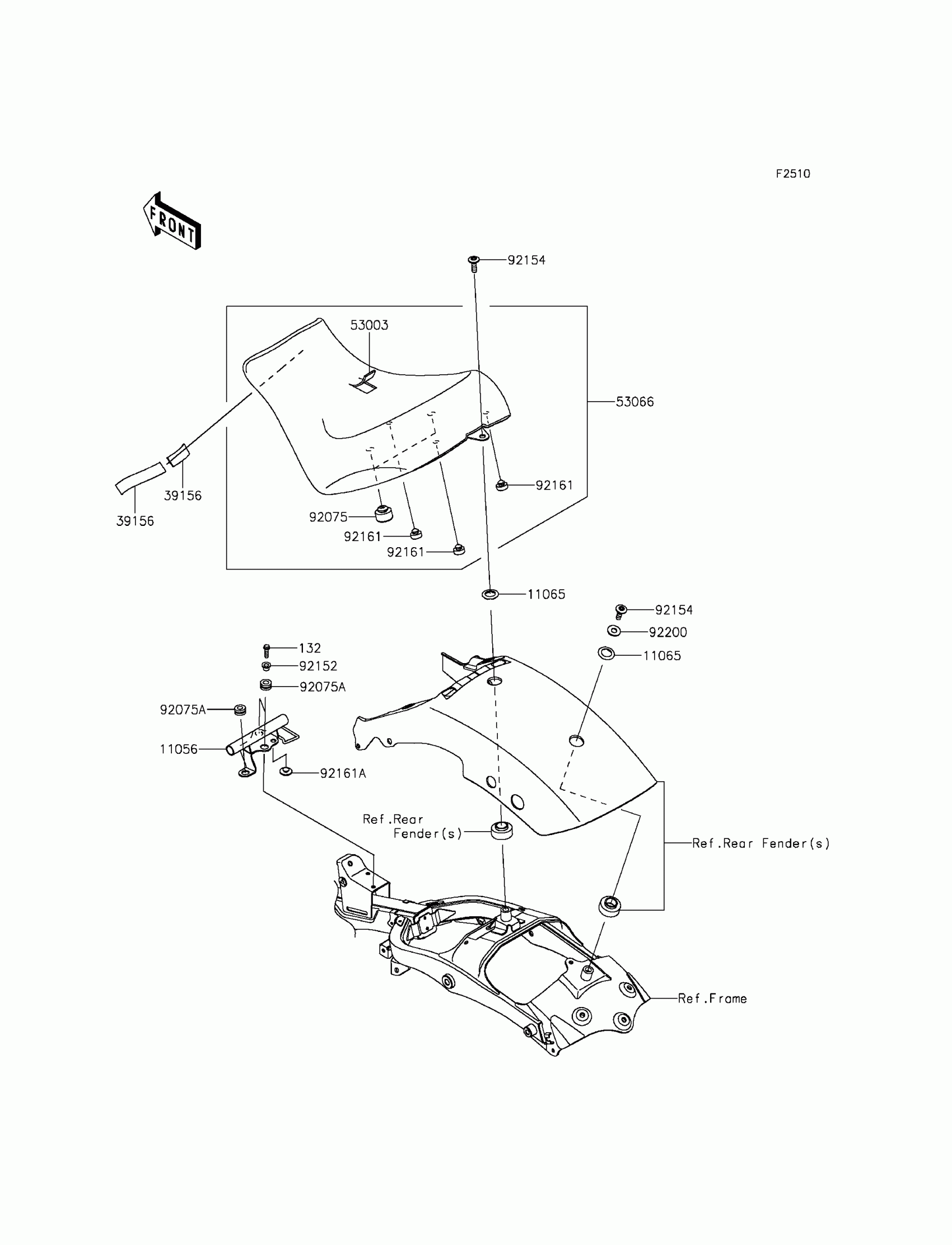

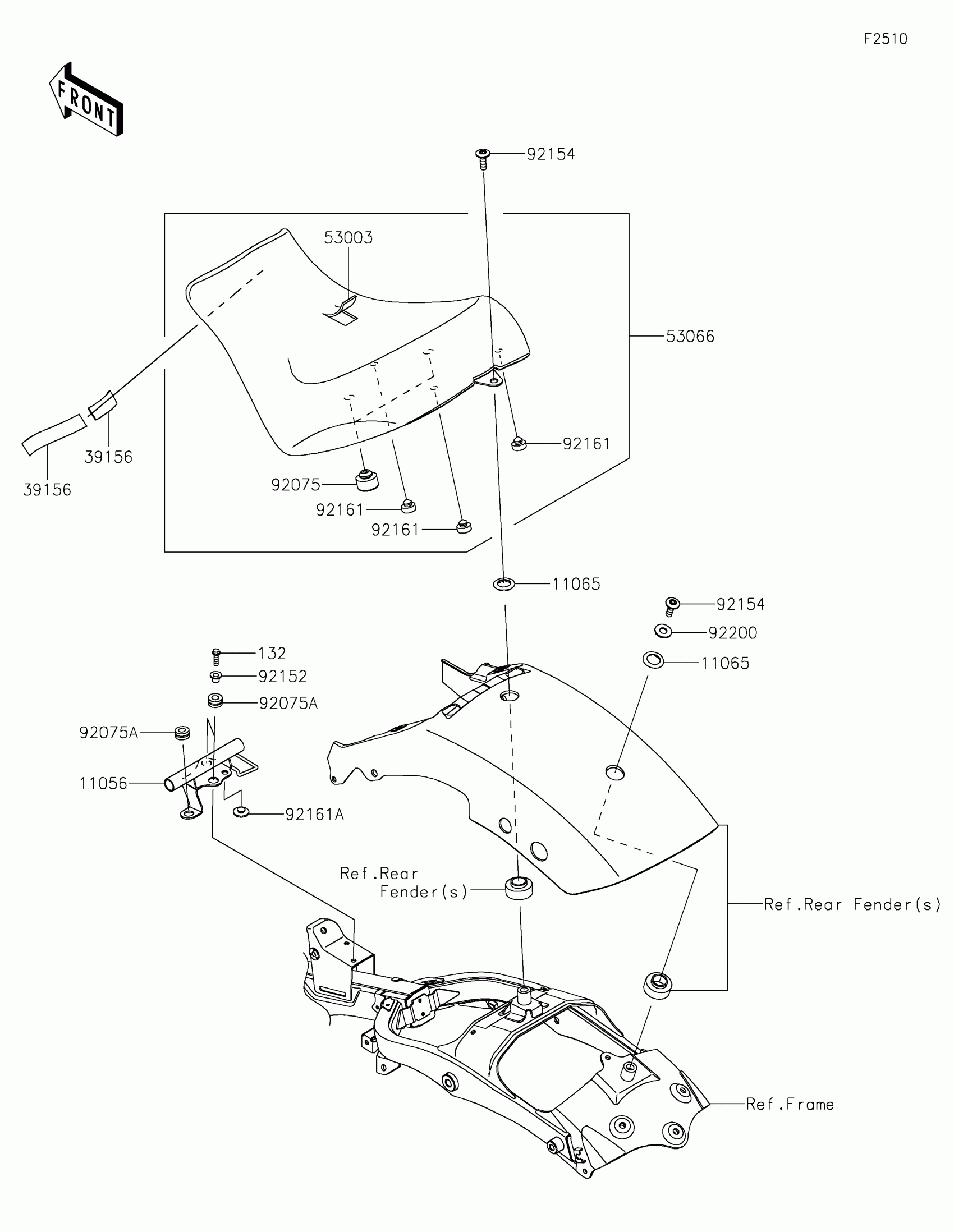

2016 Kawasaki Vulcan® S Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

11056

BRACKET,SEAT

11056-4009

1

$23.07

In stock

11065

CAP

11065-0872

1

$1.10

In stock

39156

PAD,20X100X2

39156-1934

1

$2.20

In stock

53003

LEATHER,FR SEAT,BLACK

53003-0387-MA

1

$178.85

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0502-MA

1

$235.12

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92075A

DAMPER

92075-1880

1

$1.44

In stock

92152

COLLAR,6.8X10X11.6

92152-0977

1

$2.44

In stock

92154

BOLT,SOCKET,8X25

92154-1805

1

$4.39

In stock

92161

DAMPER,10X20X8

92161-0855

1

$3.39

In stock

92161A

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92200

WASHER,10.5X24X2

92200-0987

1
Out of stock
