2016 Kawasaki Vulcan® S Rear Fender Diagram

← All diagrams

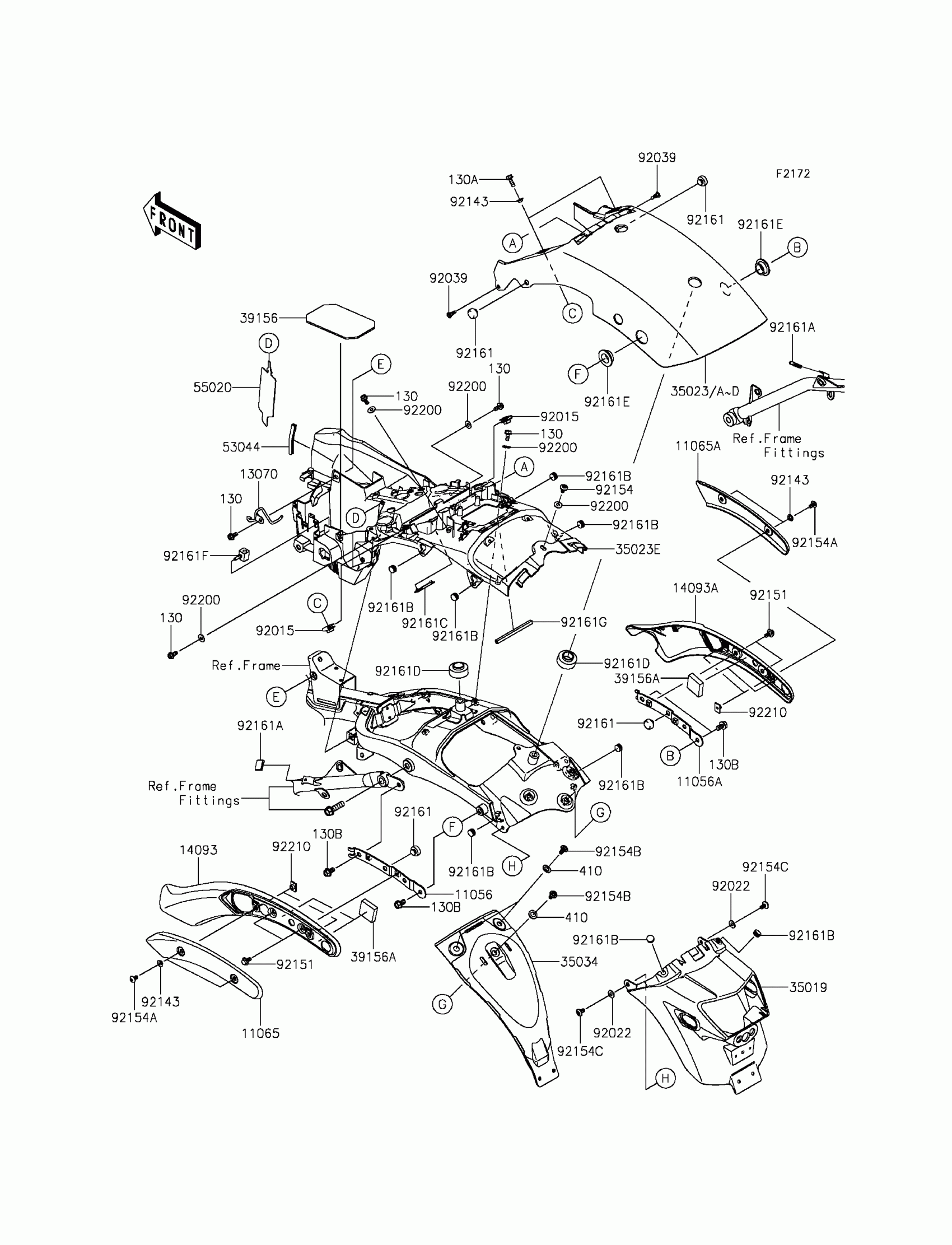

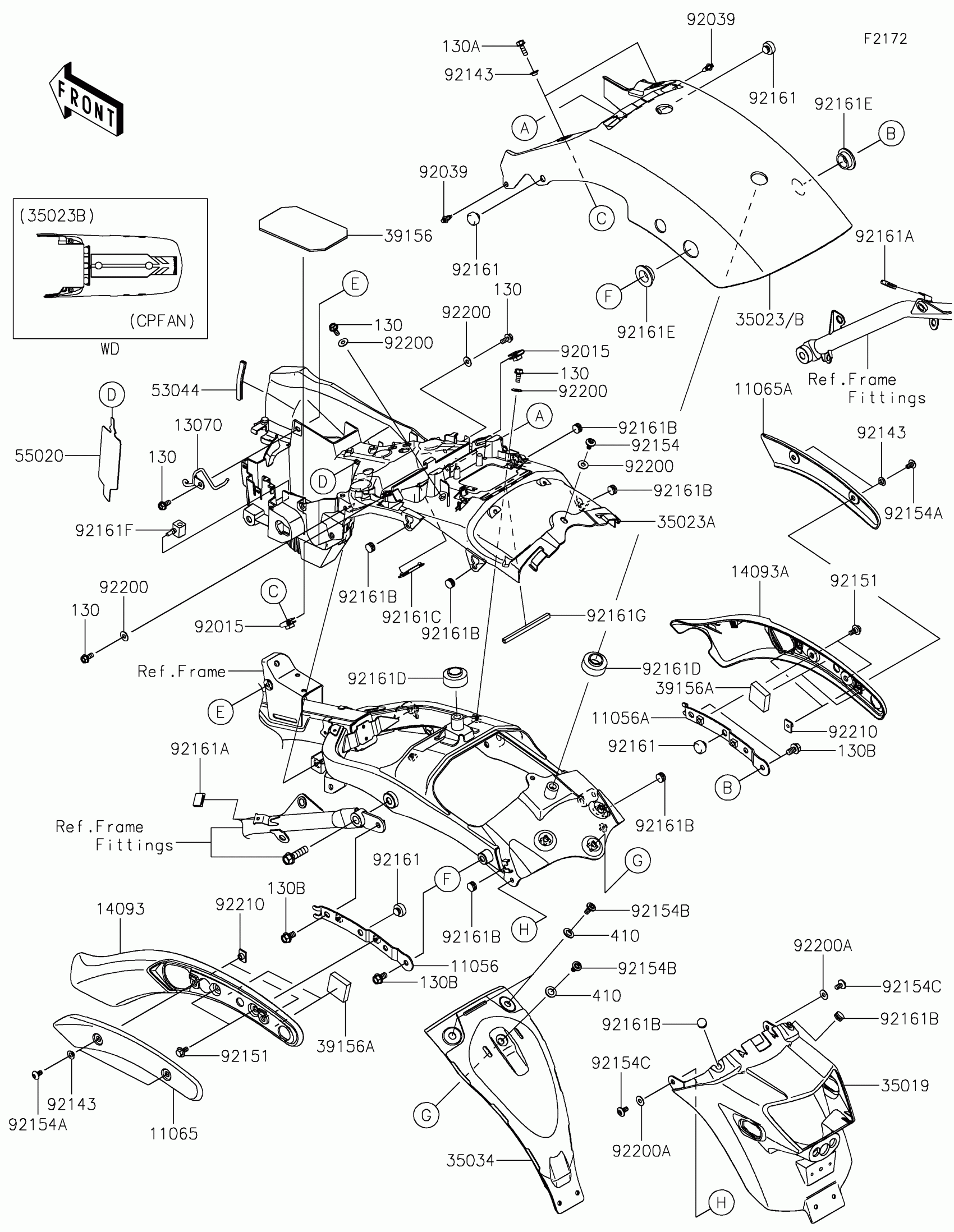

Find the part on the Rear Fender diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STRUT COVER,LH

11056-3997

1
Out of stock

11056A

BRACKET,STRUT COVER,RH

11056-3998

1
Out of stock

11065

CAP,LH,F.S.BLACK

11065-0864-18T

1
Out of stock

11065A

CAP,RH,F.S.BLACK

11065-0865-18T

1
Out of stock

13070

GUIDE

13070-0791

1
Out of stock

14093

COVER,STRUT,LH,F.S.BLACK

14093-0103-18T

1
Out of stock

14093A

COVER,STRUT,RH,F.S.BLACK

14093-0104-18T

1
Out of stock

35019

FLAP

35019-0595

1
Out of stock

35023B

FENDER-REAR,C.M.ORANGE

35023-0391-53P

1
Out of stock

35023C

FENDER-REAR,U.C.WHITE

35023-0391-53Q

1
Out of stock

35023E

FENDER-REAR

35023-0407

1
Out of stock

35034

REINFORCE

35034-0593

1
Out of stock

39156

PAD

39156-1829

1
Out of stock

39156A

PAD,35X35X10

39156-1901

1
Out of stock

53044

TRIM,L=65

53044-0584

1
Out of stock

55020

GUARD

55020-1881

1
Out of stock

92015

NUT,6MM

92015-1094

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92151

BOLT,FLANGED,6X13

92151-1703

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-0951

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-1484

1
Out of stock

92154B

BOLT,SOCKET,8X14

92154-1769

1
Out of stock

92154C

BOLT,SOCKET,6X12

92154-1788

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock

92161A

DAMPER,15X21X5.5

92161-1472

1
Out of stock

92161B

DAMPER,8X14X8.9

92161-1666

1
Out of stock

92161C

DAMPER,GPS HOLE

92161-1682

1
Out of stock

92161D

DAMPER

92161-1683

1
Out of stock

92161E

DAMPER

92161-1693

1
Out of stock

92161F

DAMPER,TOOL WRENCH

92161-1760

1
Out of stock

92161G

DAMPER,7X6X100

92161-1761

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,6X18

130BA0618

1
Out of stock

130B

BOLT-FLANGED,8X14

130BA0814

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM

410AA1000

1
Out of stock
