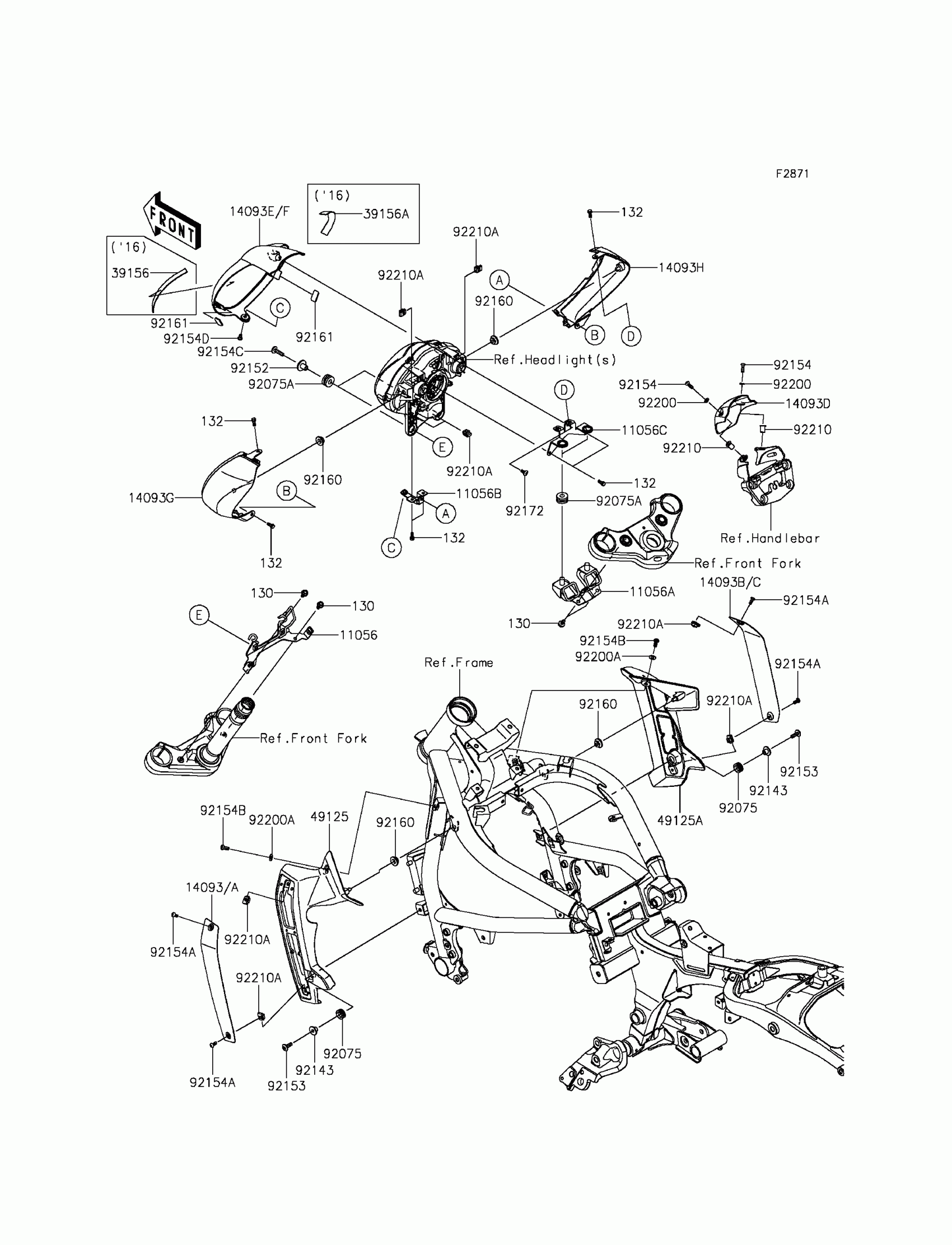

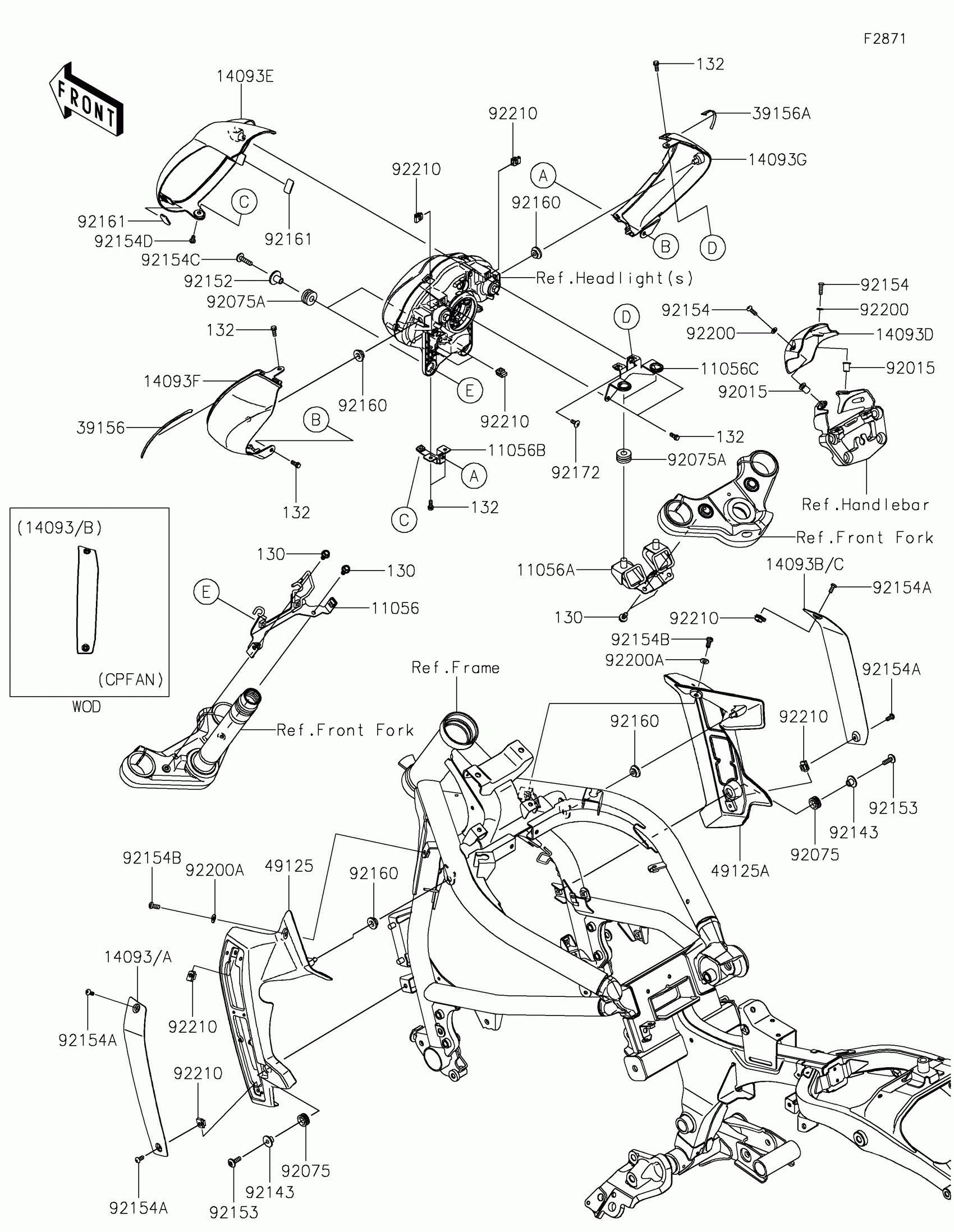

Find the part on the Cowling diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

132

1

$2.92

In stock

11056

1

$16.53

In stock

11056A

1

$38.46

In stock

11056B

1

$3.56

In stock

11056C

1

$11.75

In stock

14093

COVER,SHROUD,LH,EBONY

14093-0113-H8

1

$74.98

In stock

14093B

COVER,SHROUD,RH,EBONY

14093-0114-H8

1

$74.98

In stock

14093D

COVER,METER

14093-0128

1

$9.53

In stock

14093E

COVER,HEAD LAMP,EBONY

14093-0339-H8

1

$131.04

In stock

14093G

1

$67.75

In stock

14093H

1

$67.75

In stock

39156

PAD,COWLING,UPP,LH

39156-1969

1

$3.63

In stock

39156A

PAD,COWLING,UPP,RH

39156-1970

1

$3.63

In stock

49125

SHROUD,LH

49125-0586

1

$66.77

In stock

49125A

SHROUD,RH

49125-0587

1

$66.77

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92143

COLLAR

92143-1962

1

$4.42

In stock

92152

COLLAR,6.5X24X15.3

92152-2106

1
Out of stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1470

1

$1.32

In stock

92154A

BOLT,SOCKET,5X12

92154-1471

1

$1.32

In stock

92154B

BOLT,SOCKET,6X14

92154-1512

1

$1.56

In stock

92154C

BOLT,SOCKET,6X25

92154-1532

1

$1.95

In stock

92154D

BOLT,SOCKET,5X10

92154-1547

1

$1.32

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92200

WASHER,5.3X11X1

92200-0973

1
Out of stock

92200A

WASHER,6.5X14X1

92200-1388

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

92210A

NUT,PLATE,5MM

92210-0935

1
Out of stock
