2016 Kawasaki Vulcan® S Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

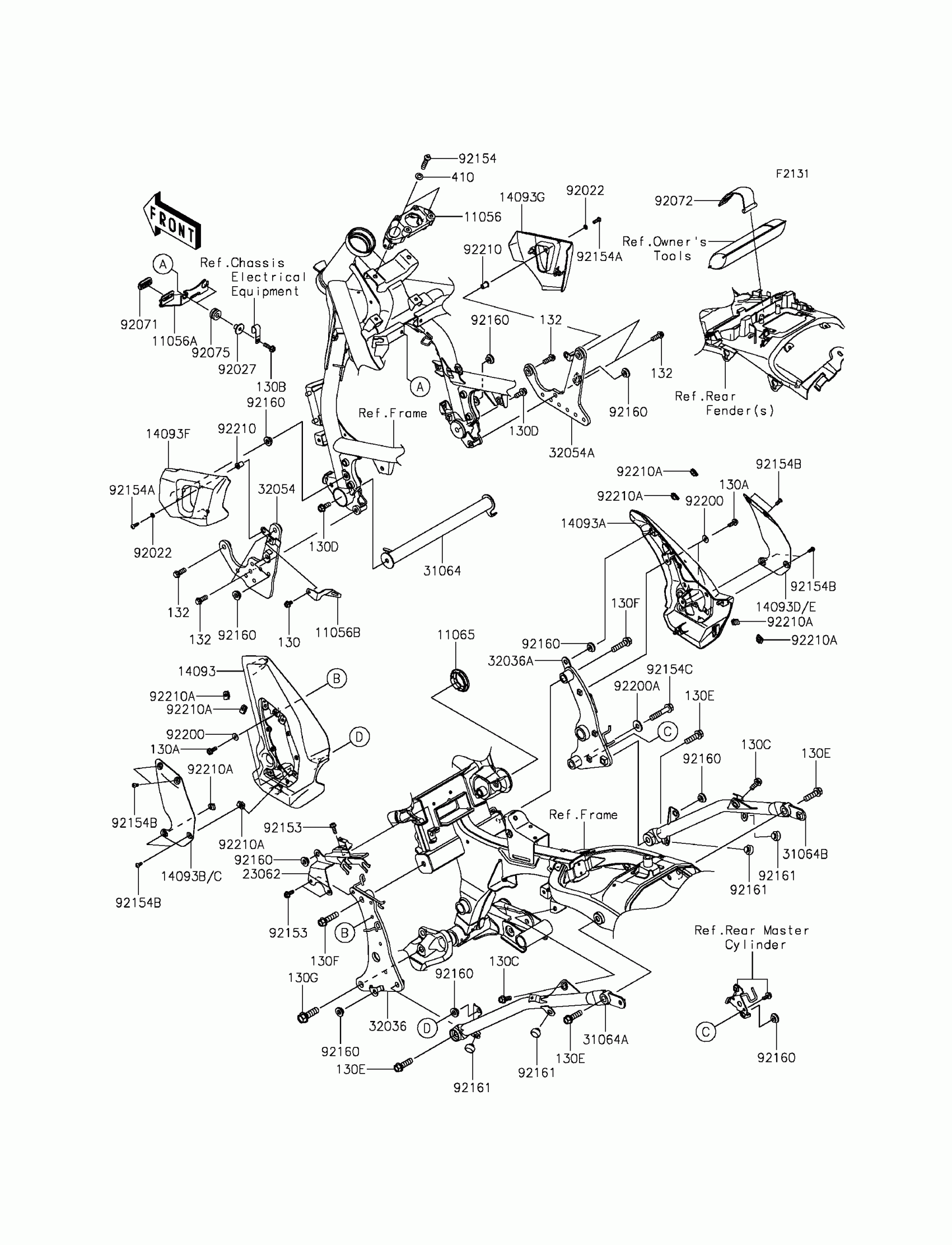

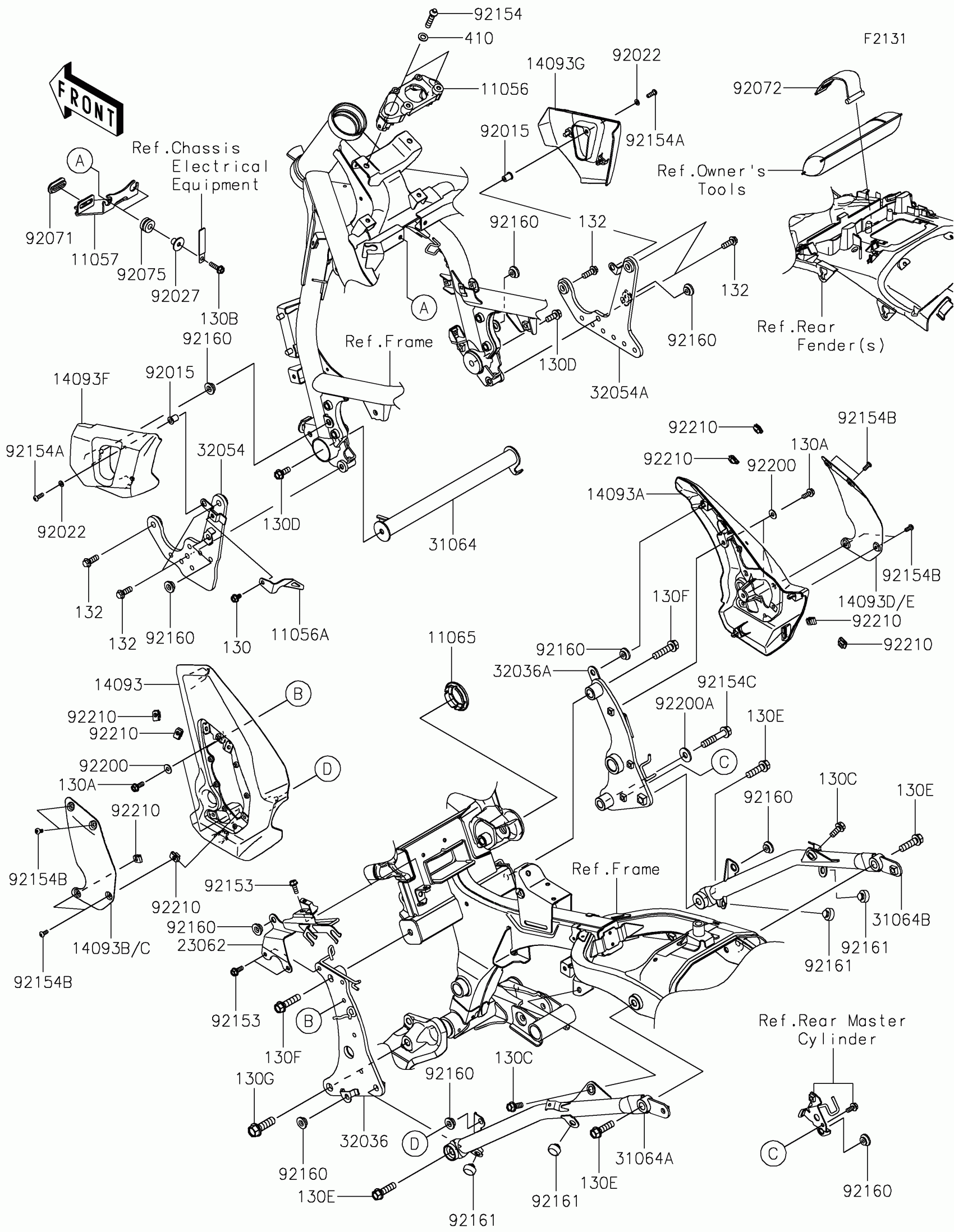

2016 Kawasaki Vulcan® S Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

130B

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

130C

BOLT-FLANGED,8X20

130BA0820

1
Out of stock

11056

BRACKET,IGNITION SW.

11056-0805

1
Out of stock

11056A

BRACKET,REGULATOR

11056-4099

1
Out of stock

11056B

BRACKET,STEP STAY COVER,LH

11056-4456

1
Out of stock

11065

CAP,SHOCK BKT.,F.S.BLACK

11065-0868-18T

1
Out of stock

14093

COVER,PIVOT,LH

14093-0115

1
Out of stock

14093A

COVER,PIVOT,RH

14093-0116

1
Out of stock

14093B

COVER,PIVOT,PLATE,LH,EBONY

14093-0117-H8

1
Out of stock

14093D

COVER,PIVOT,PLATE,RH,EBONY

14093-0118-H8

1
Out of stock

14093F

COVER,STEP STAY,LH,F.S.BLACK

14093-0348-18T

1
Out of stock

14093G

COVER,STEP STAY,RH,F.S.BLACK

14093-0349-18T

1
Out of stock

23062

BRACKET-COMP,SIDE COVER

23062-0822

1
Out of stock

31064

PIPE-COMP,FR FRAME

31064-0649

1
Out of stock

31064A

PIPE-COMP,RR,LH,F.S.BLACK

31064-0652-18R

1
Out of stock

31064B

PIPE-COMP,RR,RH,F.S.BLACK

31064-0653-18R

1
Out of stock

32036

BRACKET-SWINGARM,LH

32036-0349

1
Out of stock

32036A

BRACKET-SWINGARM,RH

32036-0350

1
Out of stock

32054

BRACKET-STEP,LH

32054-0075

1
Out of stock

32054A

BRACKET-STEP,RH

32054-0076

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92071

GROMMET

92071-0013

1
Out of stock

92072

BAND,TOOL

92072-0056

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92153

BOLT,FLANGED,6X16

92153-0713

1
Out of stock

92154

BOLT,TORX,8X35

92154-0730

1
Out of stock

92154A

BOLT,SOCKET,5X16

92154-1470

1
Out of stock

92154B

BOLT,SOCKET,5X12

92154-1471

1
Out of stock

92154C

BOLT,FLANGED,10X50

92154-1620

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92200A

WASHER,10.2X25X2.3

92200-1686

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

92210A

NUT,PLATE,5MM

92210-0935

1
Out of stock

130D

BOLT-FLANGED,8X20

130CA0820

1
Out of stock

130E

BOLT-FLANGED,10X35

130CA1035

1
Out of stock

130F

BOLT-FLANGED,10X40

130CA1040

1
Out of stock

130G

BOLT-FLANGED,12X40

130CB1240

1
Out of stock

132

BOLT-FLANGED-SMALL,8X22

132BB0822

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock
