2016 Kawasaki Vulcan® S Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

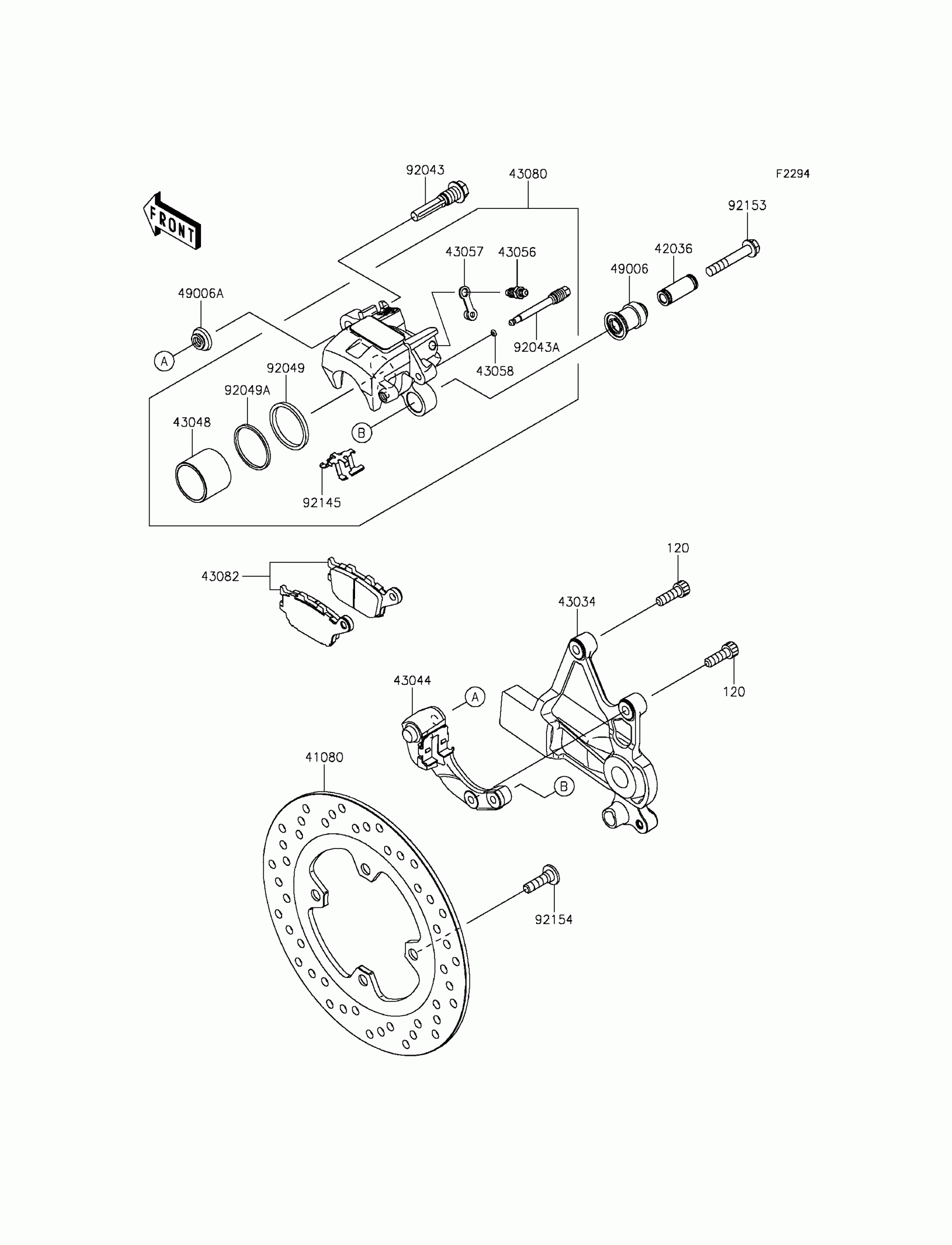

2016 Kawasaki Vulcan® S Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120CB0825

1

$3.72

In stock

41080

DISC,RR,BLACK

41080-0625-11H

1

$341.15

In stock

42036

SLEEVE

42036-0050

1

$7.61

In stock

43034

HOLDER-BRAKE,RR

43034-0103

1

$138.83

In stock

43044

HOLDER-COMP-CALIPER

43044-0080

1

$155.66

In stock

43048

PISTON-CALIPER

43048-0008

1

$31.05

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43058

RING,STOPPER

43058-1100

1

$11.22

In stock

43080

1

$318.75

In stock

43082

PAD-ASSY-BRAKE

43082-0155

1

$62.63

In stock

49006

BOOT

49006-0058

1

$12.83

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92043

PIN

92043-0137

1

$10.77

In stock

92043A

PIN,HANGER

92043-0820

1

$7.24

In stock

92049

SEAL-OIL

92049-1449

1
Out of stock

92049A

SEAL-OIL

92049-1450

1
Out of stock

92145

SPRING,PAD

92145-0493

1

$6.12

In stock

92153

BOLT,FLANGED

92153-1826

1

$8.17

In stock

92154

BOLT,SOCKET,8X30

92154-0844

1

$3.26

In stock
