2016 Kawasaki Vulcan® S Front Master Cylinder Diagram

← All diagrams

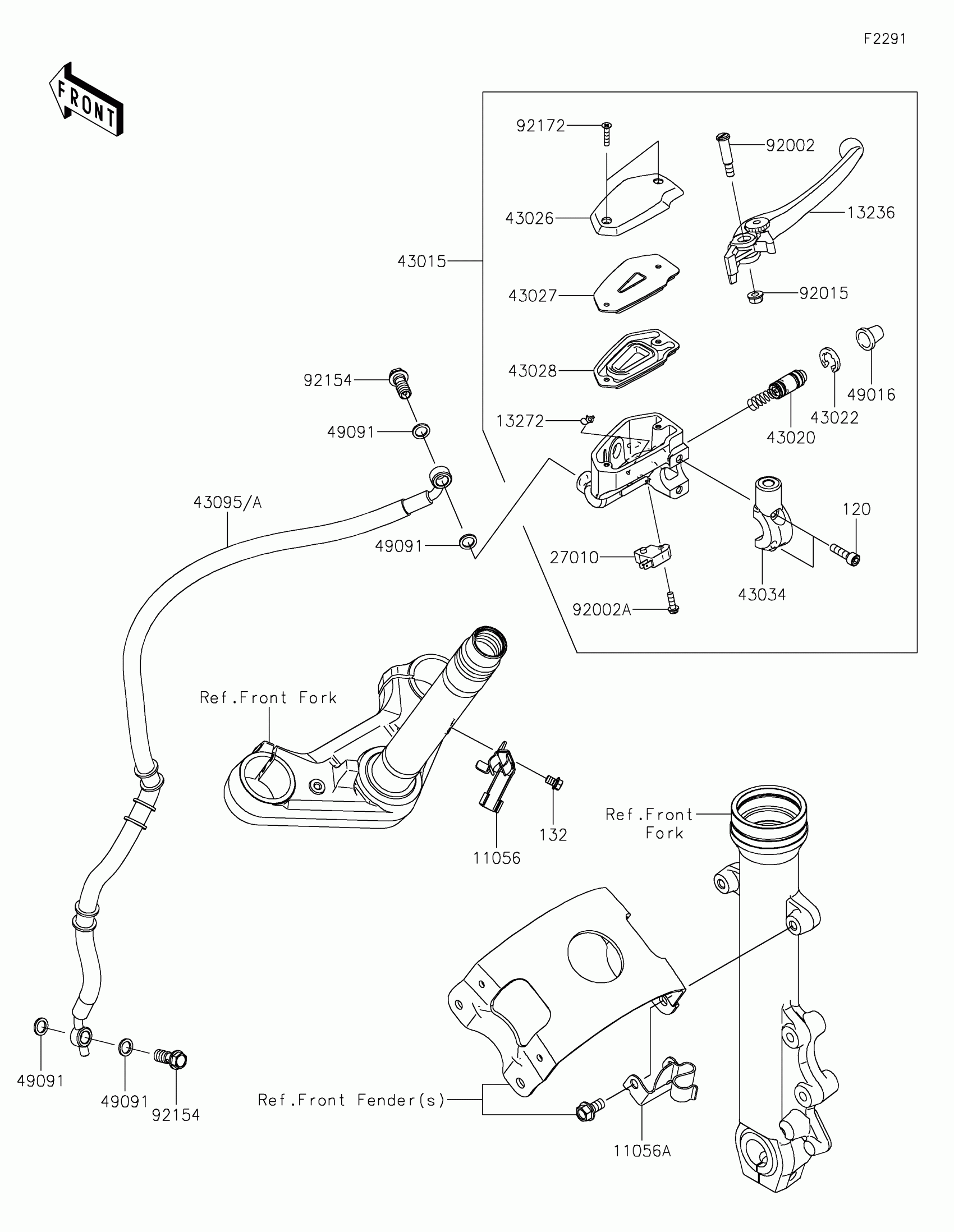

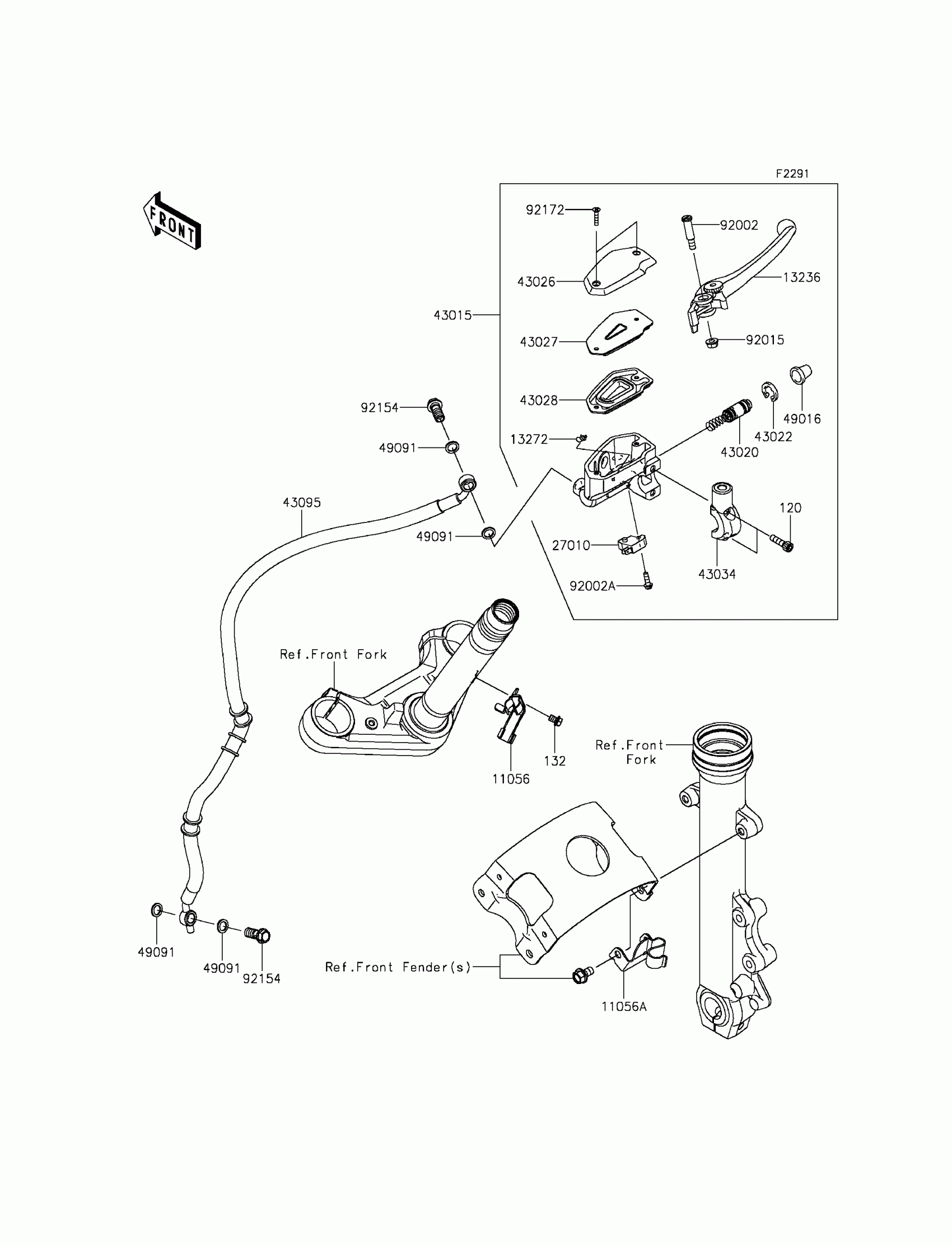

Find the part on the Front Master Cylinder diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X22

120CB0622

1

$4.68

In stock

132

1

$3.24

In stock

11056

1

$9.37

In stock

11056A

BRACKET,FR FENDER

11056-7694

1

$5.66

In stock

13236

1

$62.48

In stock

13272

PLATE

13272-0573

1

$7.47

In stock

27010

SWITCH,BRAKE

27010-0762

1

$32.10

In stock

43015

1

$419.59

In stock

43020

PISTON-COMP-BRAKE

43020-1095

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0019

1

$47.10

In stock

43027

PLATE-DIAPHRAGM

43027-0008

1

$8.47

In stock

43028

DIAPHRAGM

43028-0015

1

$37.15

In stock

43034

1

$45.93

In stock

43095

HOSE-BRAKE,FR,974MM

43095-0833

1

$105.49

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92172

SCREW,4X20

92172-0320

1

$3.11

In stock
