2016 Kawasaki Vulcan® S Front Brake Diagram

← All diagrams

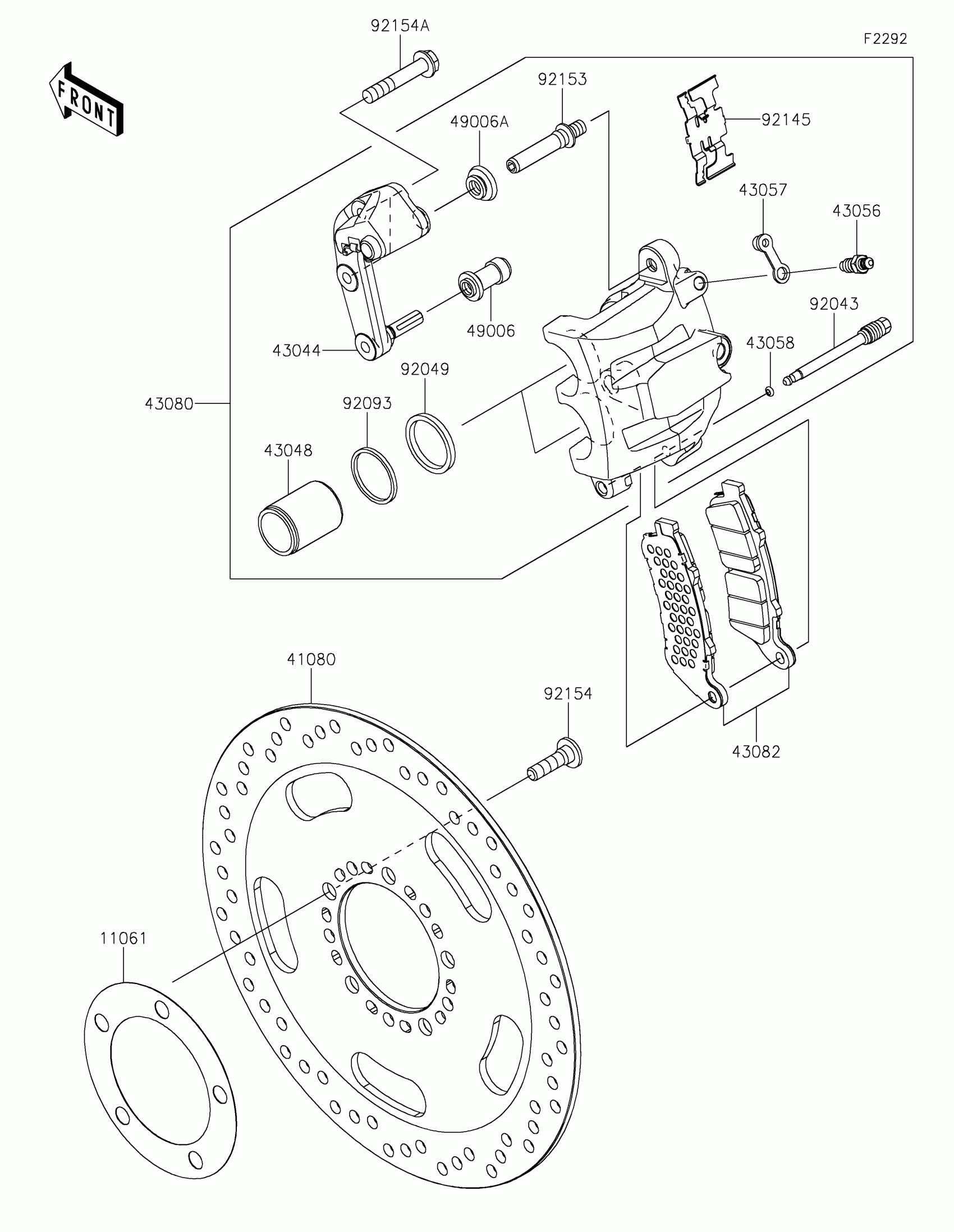

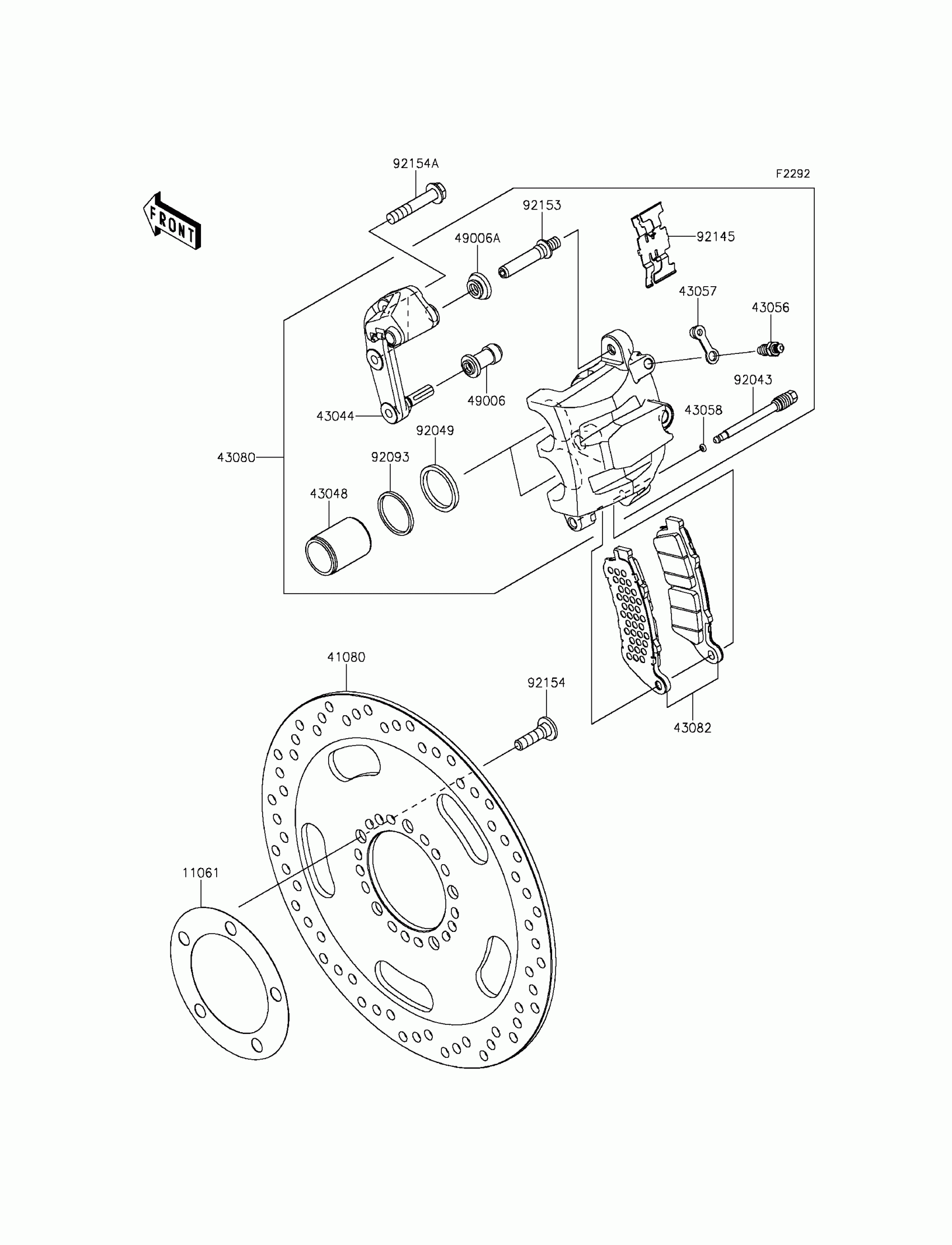

Find the part on the Front Brake diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0029

1

$14.31

In stock

41080

DISC,FR,BLACK

41080-0624-11H

1

$395.94

In stock

43044

HOLDER-COMP-CALIPER

43044-0077

1

$125.43

In stock

43048

PISTON-CALIPER

43048-0026

1

$83.43

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43058

RING,STOPPER

43058-1100

1

$11.22

In stock

43080

1

$391.82

In stock

43082

PAD-ASSY-BRAKE

43082-0152

1

$85.47

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92043

PIN,HANGER

92043-0824

1

$7.58

In stock

92049

SEAL-OIL,PISTON

92049-1331

1
Out of stock

92093

SEAL,PISTON

92093-1272

1

$15.29

In stock

92145

SPRING,PAD

92145-1632

1

$10.63

In stock

92153

BOLT

92153-1872

1

$12.95

In stock

92154

BOLT,SOCKET,8X30

92154-0844

1

$3.26

In stock

92154A

BOLT,FLANGED,8X45

92154-1706

1

$3.19

In stock
