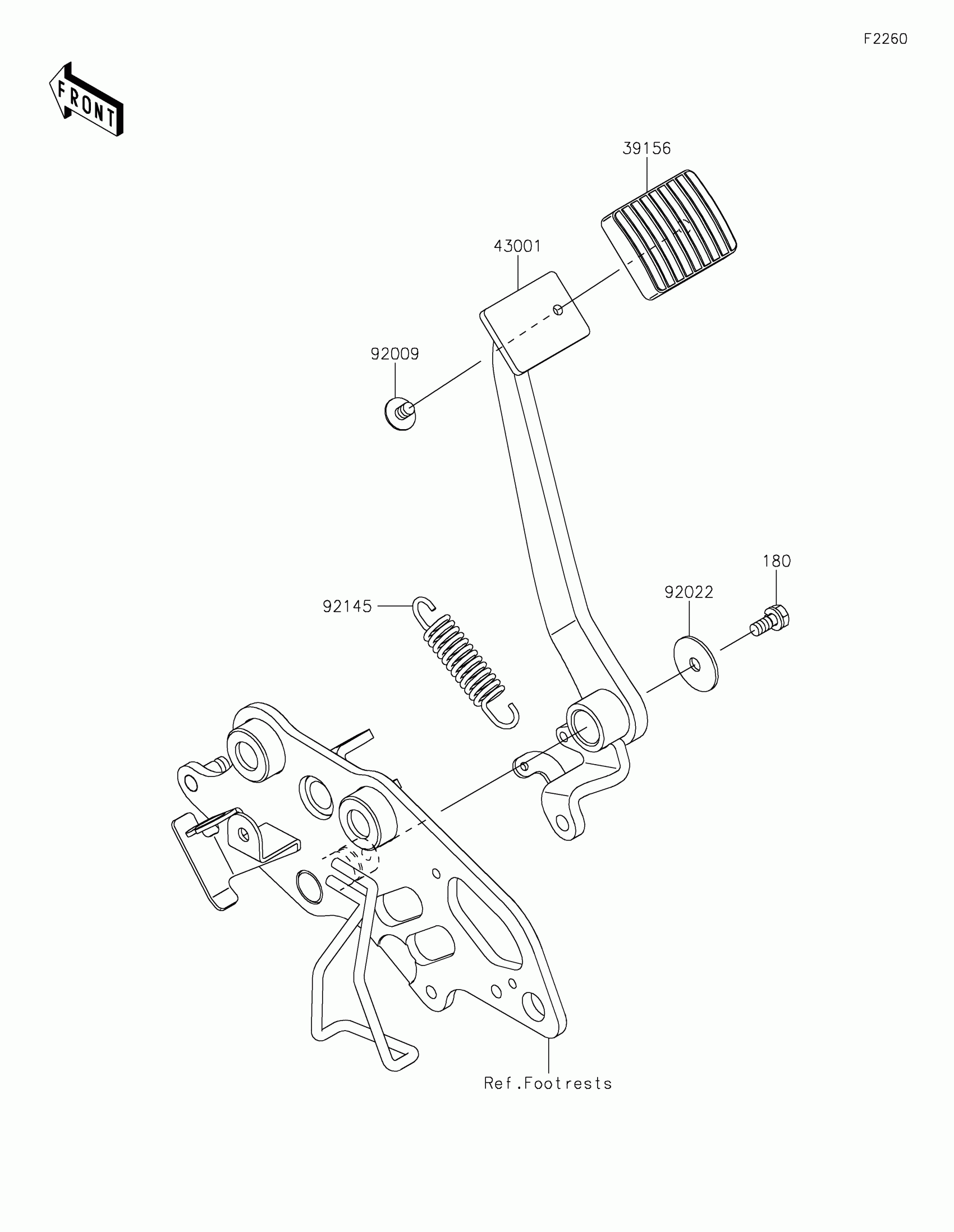

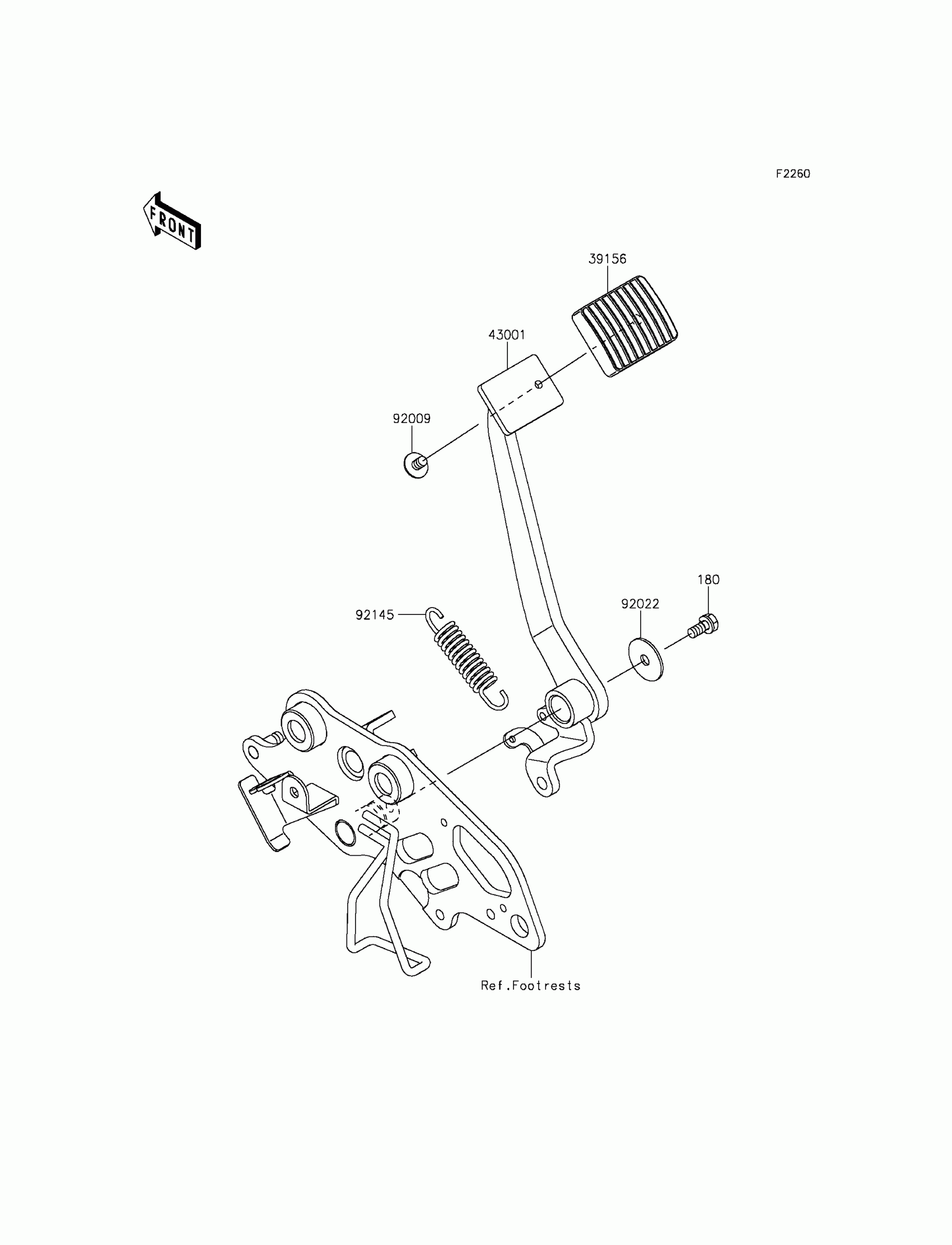

Find the part on the Brake Pedal/torque Link diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS,6X14

180BB0614

1
Out of stock

39156

PAD

39156-1641

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-0733

1
Out of stock

92009

SCREW,6X8

92009-1677

1
Out of stock

92022

WASHER,7X28X1.6,BLACK

92022-1392

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-1158

1
Out of stock
