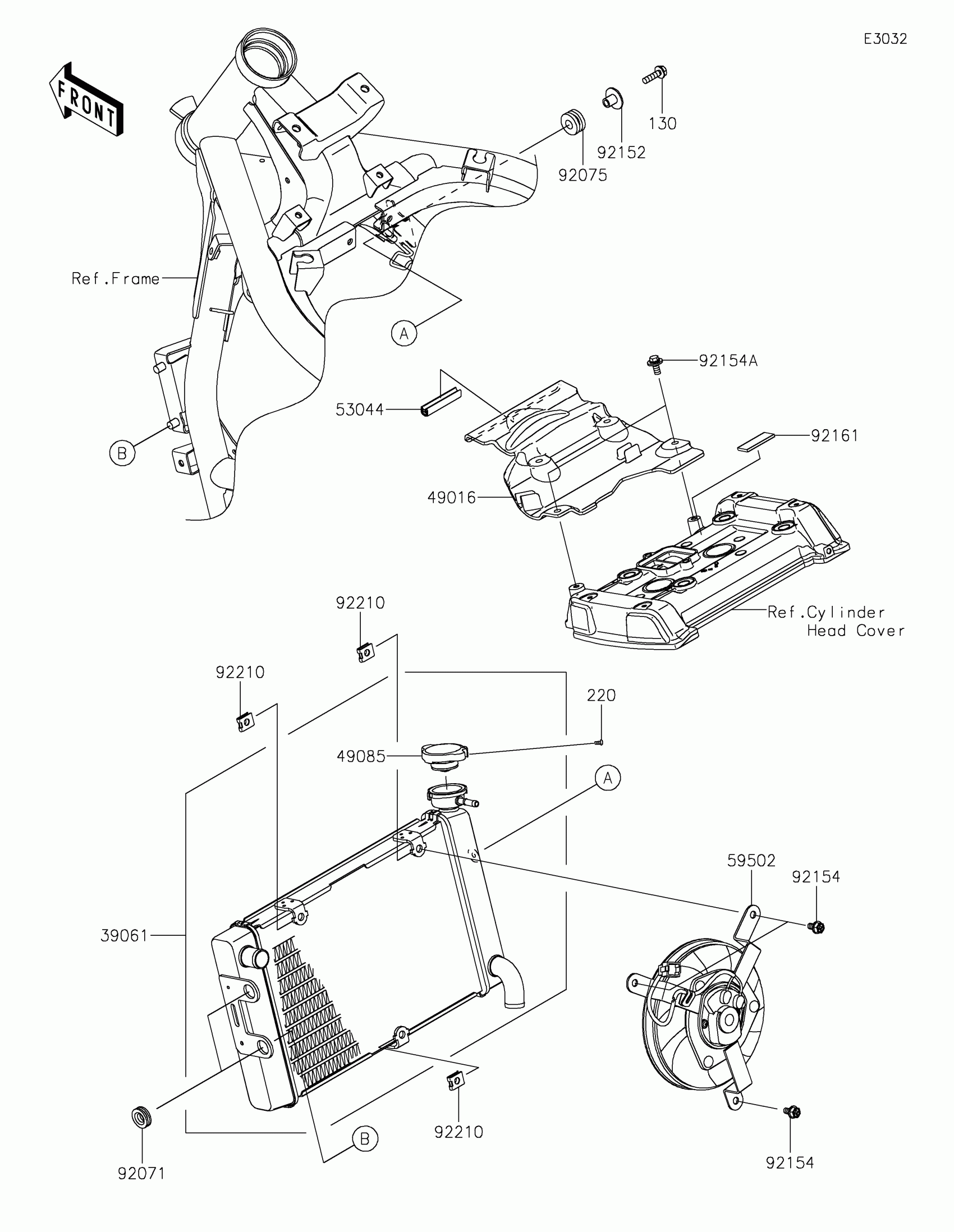

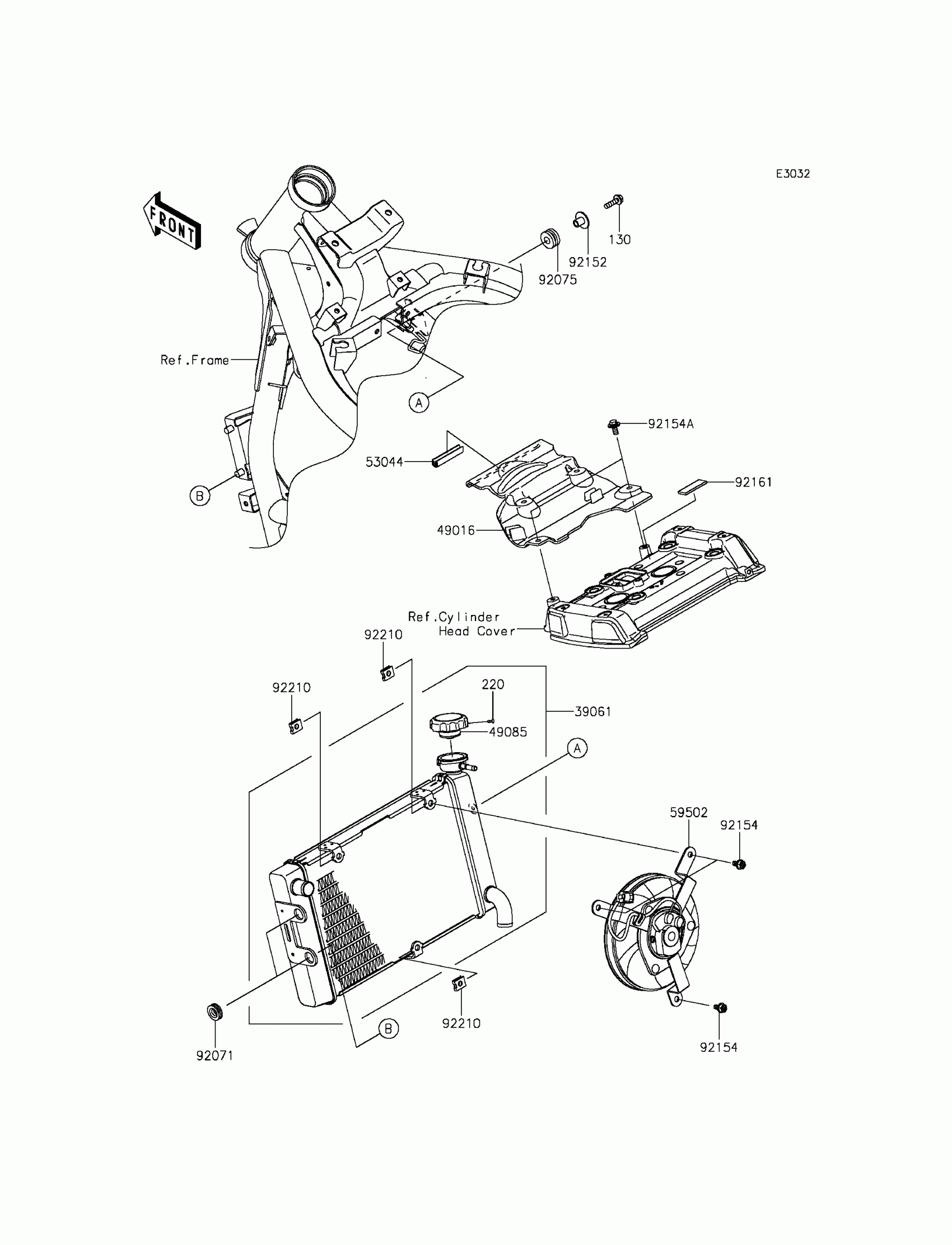

2016 Kawasaki Vulcan® S Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

220

SCREW-PAN-CROS,3X6

220AB0306

1

$2.29

In stock

39061

RADIATOR-ASSY

39061-0714

1

$881.07

In stock

49016

COVER-SEAL

49016-0622

1

$22.39

In stock

49085

CAP-ASSY-PRESSURE

49085-0012

1

$51.50

In stock

53044

TRIM,L=50

53044-1185

1

$4.66

In stock

59502

FAN-ASSY

59502-0600

1

$377.19

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92152

COLLAR,6.5X10X13.1

92152-0910

1

$1.44

In stock

92154

BOLT

92154-1429

1

$3.75

In stock

92154A

1

$1.47

In stock

92161

DAMPER

92161-0301

1

$1.81

In stock

92210

NUT

92210-1323

1
Out of stock
