2016 Kawasaki Vulcan® S Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

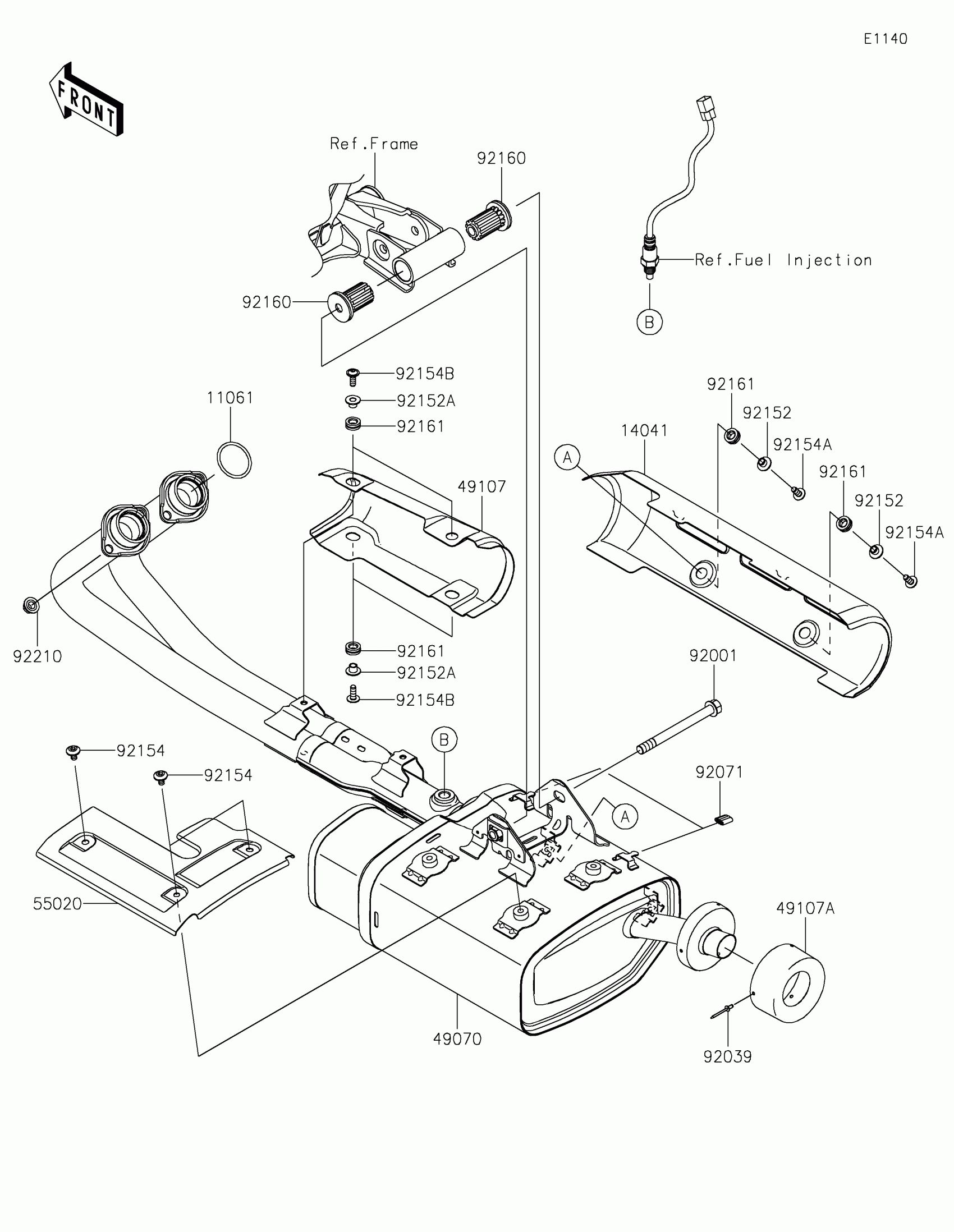

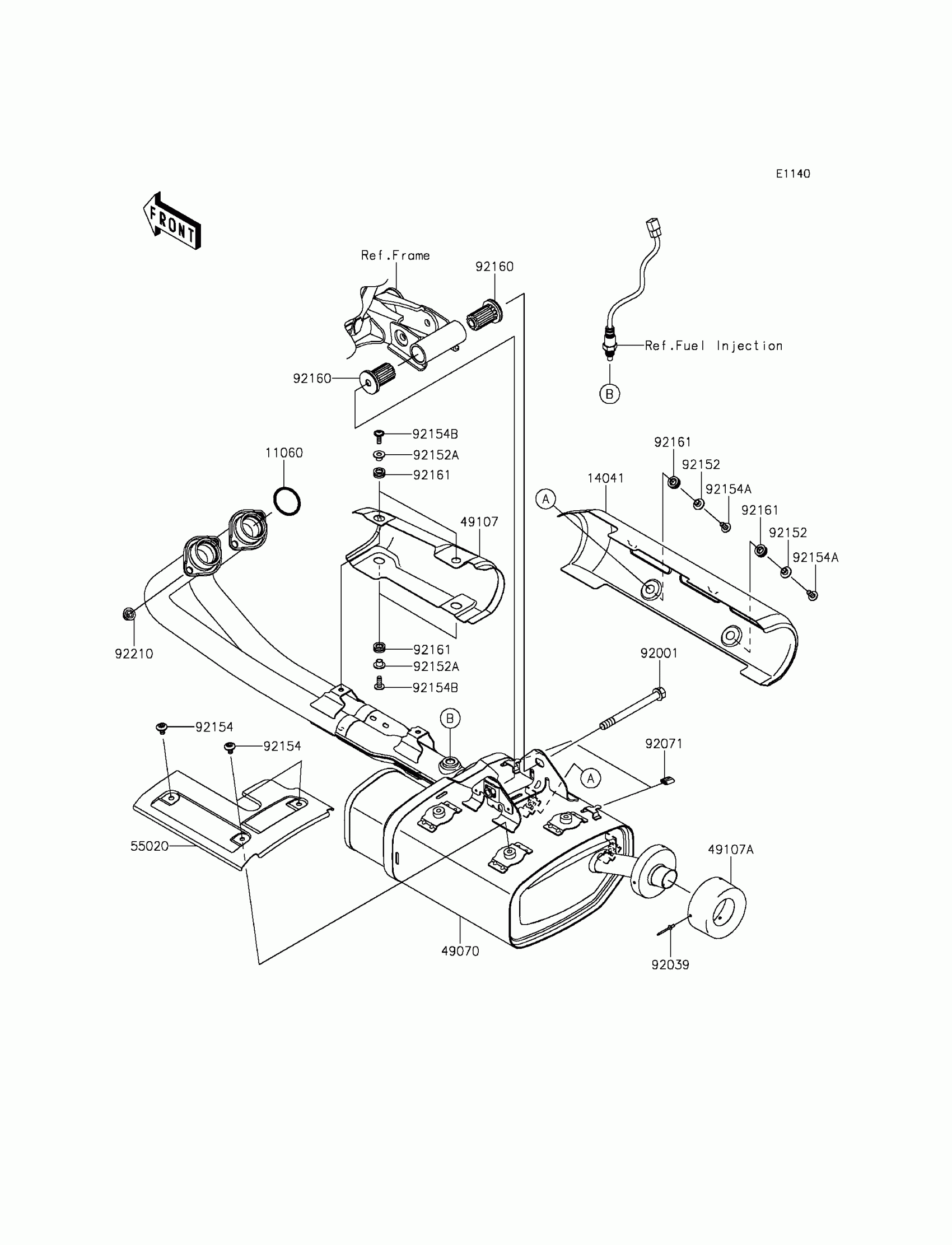

2016 Kawasaki Vulcan® S Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$6.27

In stock

14041

COVER-COMP,MUFFLER

14041-0581

1

$360.00

In stock

49070

MUFFLER-COMP

49070-0815

1

$1,373.80

In stock

49107

1

$206.19

In stock

49107A

1

$113.87

In stock

55020

GUARD,MUFFLER

55020-1855

1

$113.82

In stock

92001

BOLT,FLANGED,10X110

92001-1602

1

$10.63

In stock

92039

RIVET

92039-0088

1

$1.47

In stock

92071

GROMMET

92071-1270

1

$7.14

In stock

92152

COLLAR,6.3X8.3X16

92152-1602

1
Out of stock

92152A

COLLAR

92152-1988

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-0774

1

$1.44

In stock

92154A

BOLT,SOCKET,6X14

92154-0856

1

$1.66

In stock

92154B

BOLT,SOCKET,6X16

92154-1678

1

$1.47

In stock

92160

DAMPER

92160-1423

1

$20.81

In stock

92161

DAMPER

92161-1475

1

$4.23

In stock

92210

NUT,8MM

92210-1114

1
Out of stock
