2025 Kawasaki Vulcan S Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki Vulcan S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

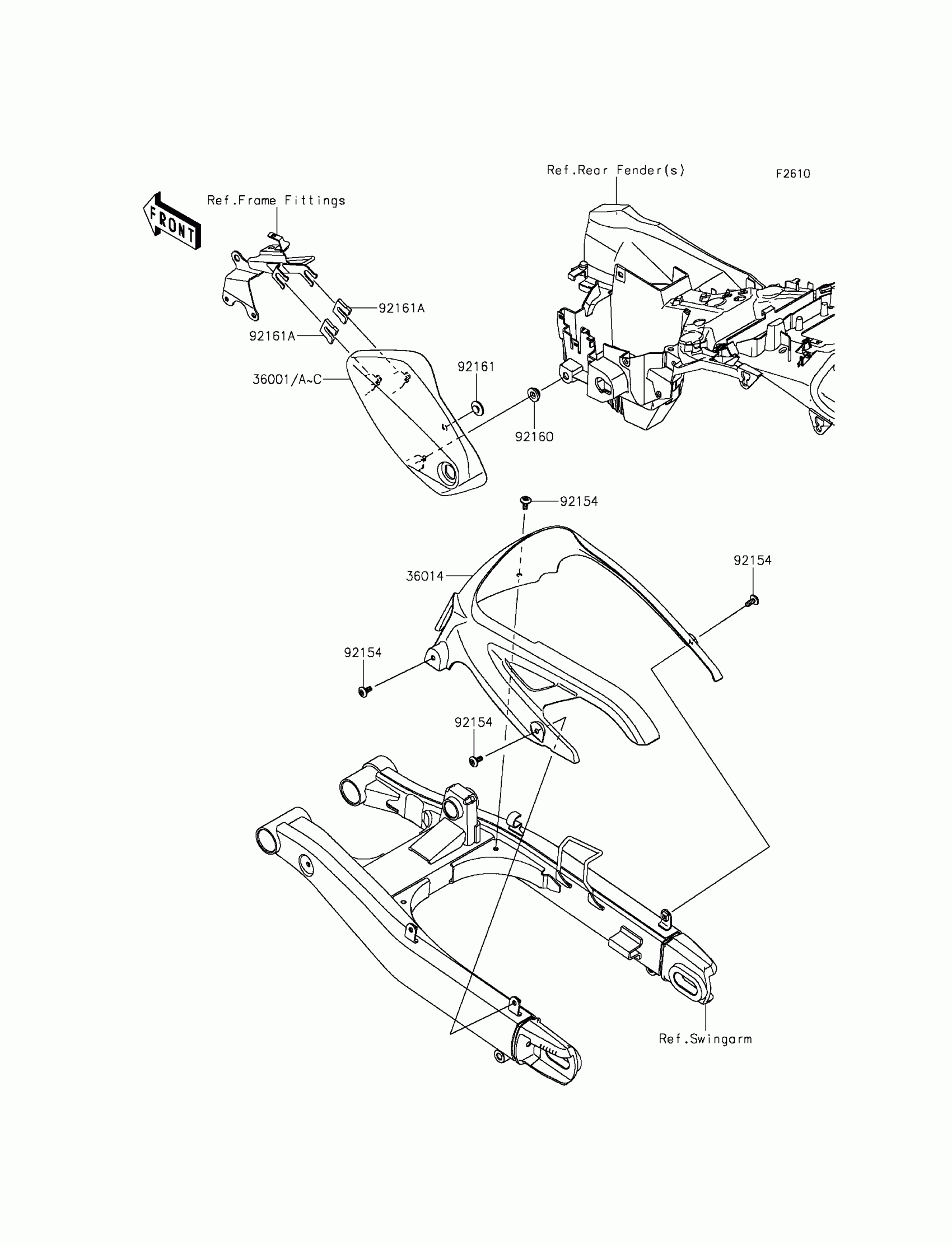

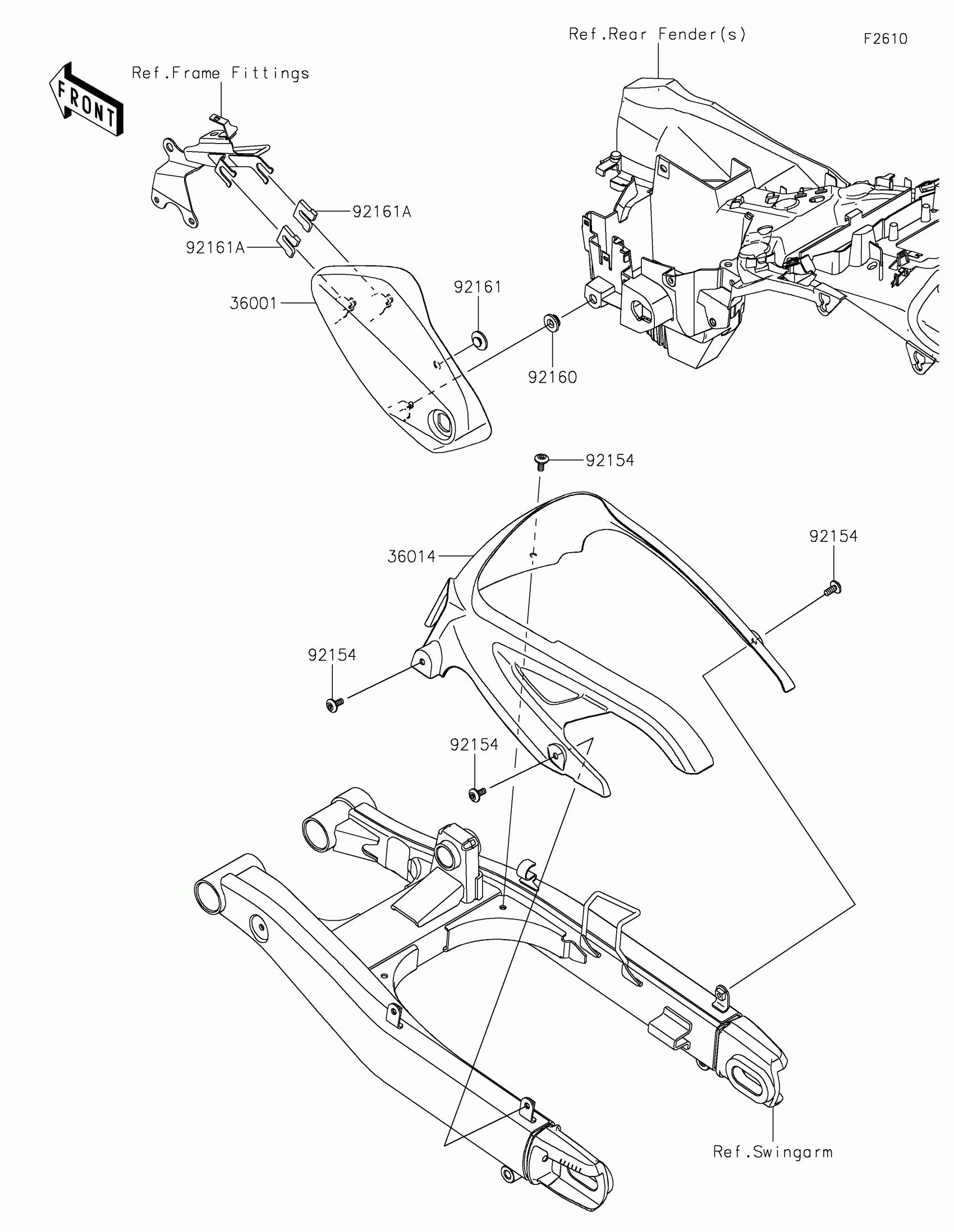

2025 Kawasaki Vulcan S Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,F.S.BLACK

36001-0615-18T

1

$67.01

In stock

36014

CASE-CHAIN

36014-0566

1

$80.06

In stock

92154

BOLT,SOCKET,6X14

92154-1511

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161A

DAMPER

92161-1764

1

$2.25

In stock
