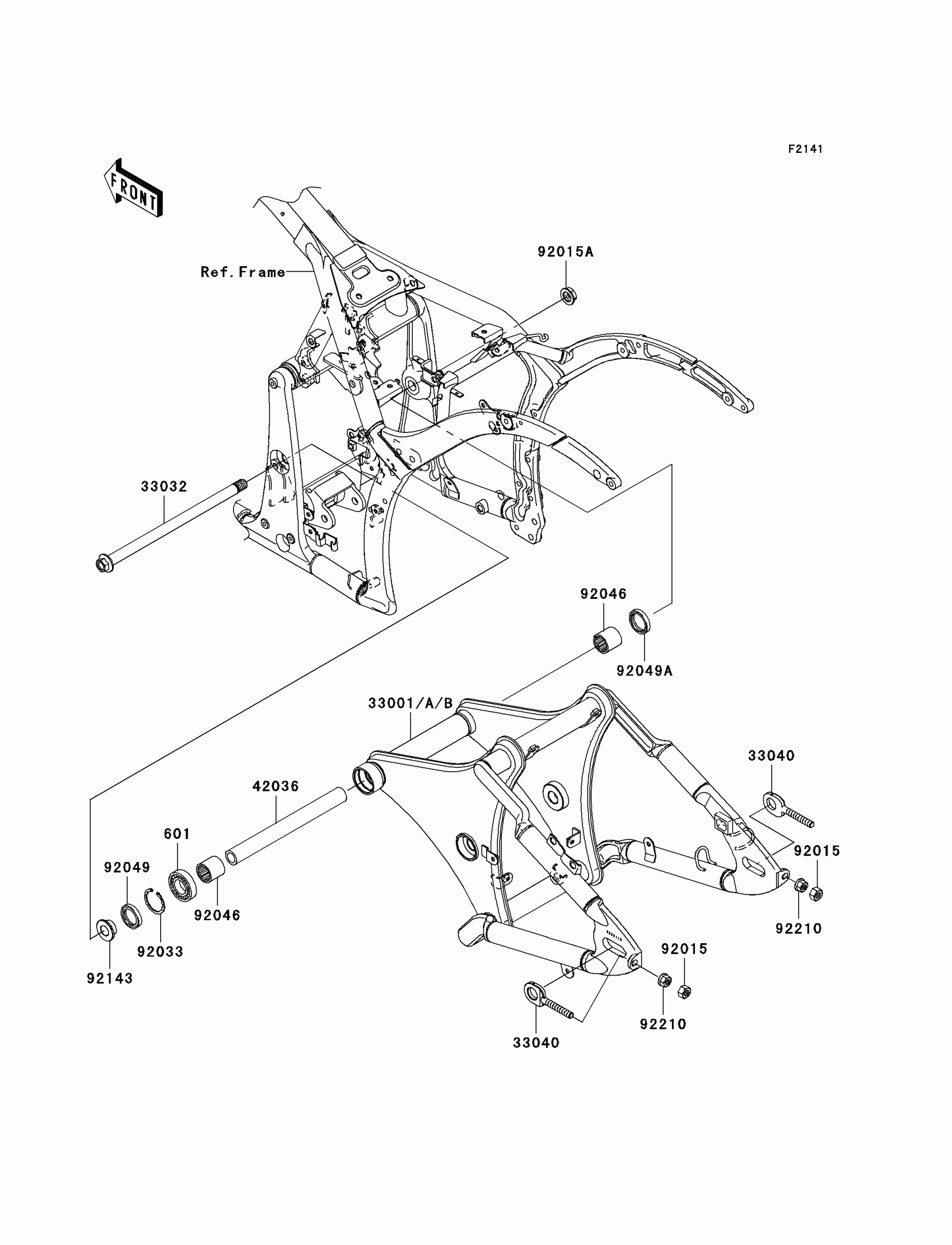

Find the part on the Swingarm diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

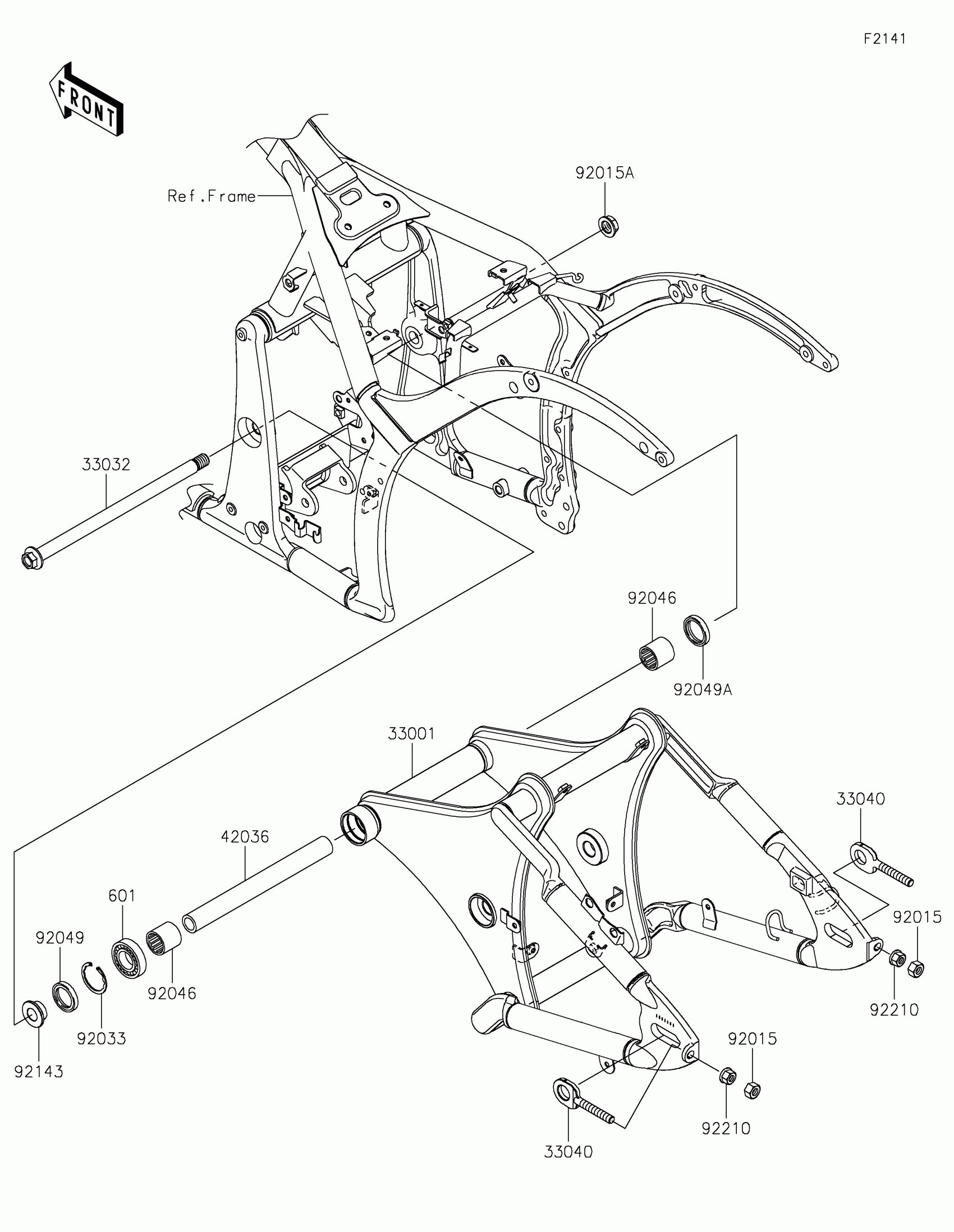

2009 Kawasaki Vulcan® 900 Custom Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$11.12

In stock

33001A

ARM-COMP-SWING,BLACK

33001-0100-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0018

1

$62.32

In stock

33040

ADJUSTER-CHAIN

33040-0005

1

$41.80

In stock

42036

1

$51.39

In stock

92015

NUT,LOCK,10MM

92015-1494

1

$5.42

In stock

92015A

NUT,FLANGED,16MM

92015-1946

1

$12.17

In stock

92033

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

92046

1

$23.73

In stock

92049

SEAL-OIL

92049-1047

1
Out of stock

92049A

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92143

COLLAR,RR AXLE,L=14

92143-1188

1

$17.66

In stock

92210

NUT,FLANGED,10MM

92210-0349

1
Out of stock
