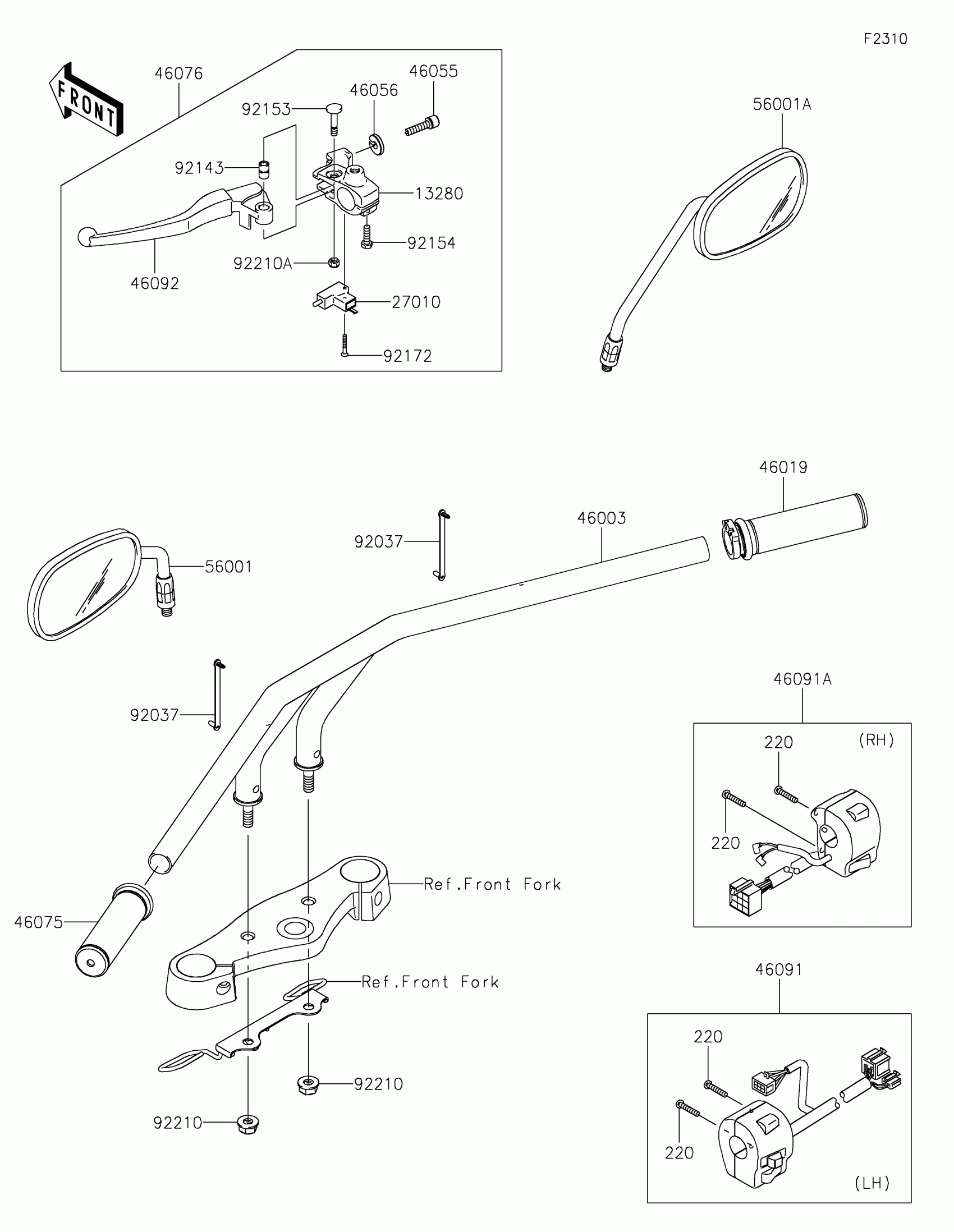

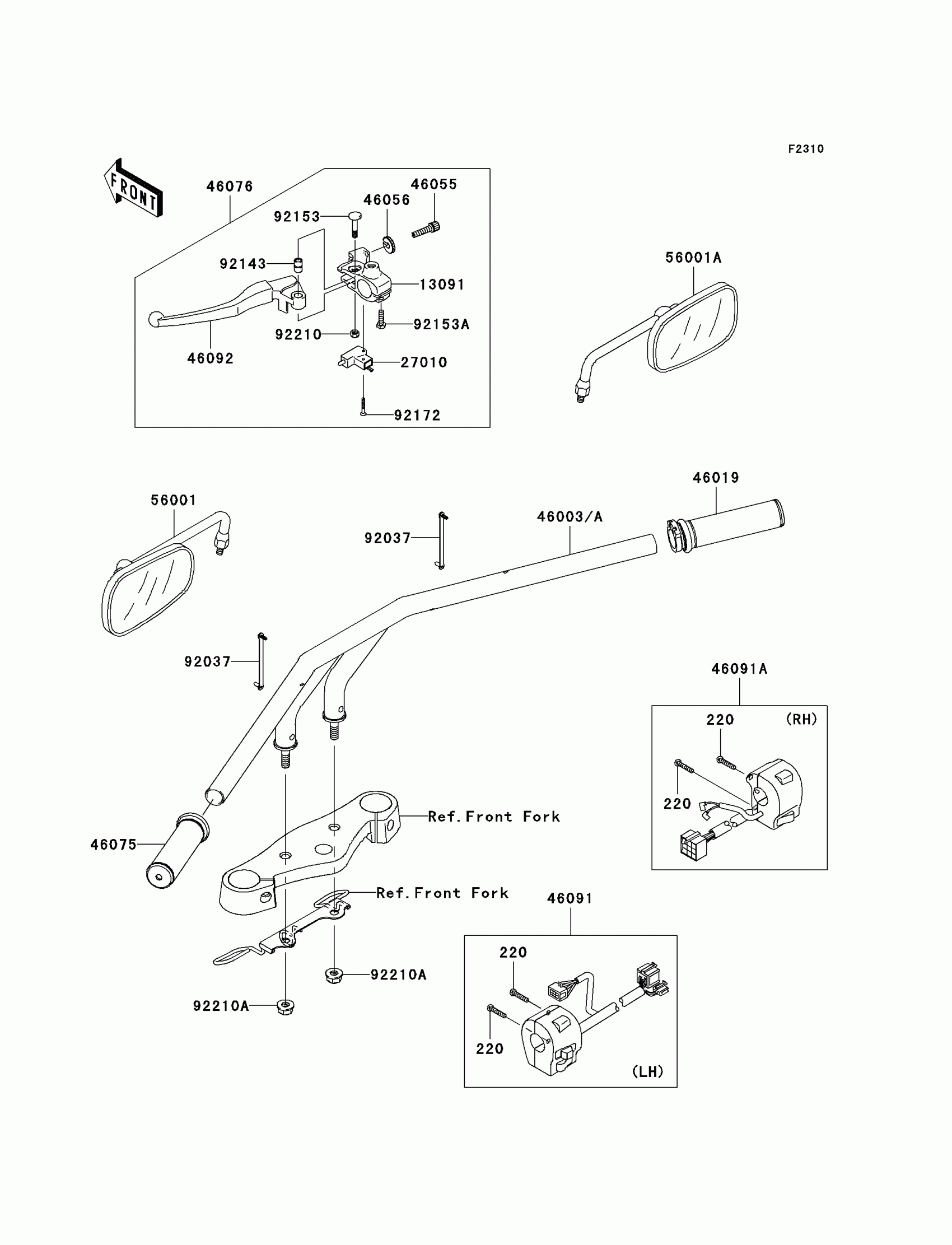

Kawasaki Vulcan® 900 Custom Handlebar Diagram

Description

Price

220

SCREW-PAN-CROS,5X25

220R0525

$4.23

13091

HOLDER,CLUTCH LEVER

13091-1632

Unavailable

27010

SWITCH,CLUTCH

27010-1268

$25.31

46003

HANDLE

46003-0115

$230.87

46019

GRIP-ASSY,THROTTLE

46019-1123

$72.61

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$6.75

46075

GRIP,LH

46075-1212

$26.07

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0010

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-0070

$341.05

46091A

HOUSING-ASSY-CONTROL,RH

46091-0099

$257.77

46092

LEVER-GRIP,CLUCTH

46092-1204

$23.22

56001

MIRROR-ASSY,LH

56001-0088

$70.13

56001A

MIRROR-ASSY,RH

56001-0104

$70.13

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92143

COLLAR

92143-1351

$16.78

92153

BOLT,LEVER SET

92153-0716

$5.08

92153A

BOLT,6X20

92153-0721

$2.78

92172

SCREW,3X20

92172-0164

$2.47

92210

NUT,LOCK,6MM

92210-0006

$1.76

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
