2009 Kawasaki Vulcan® 900 Custom Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

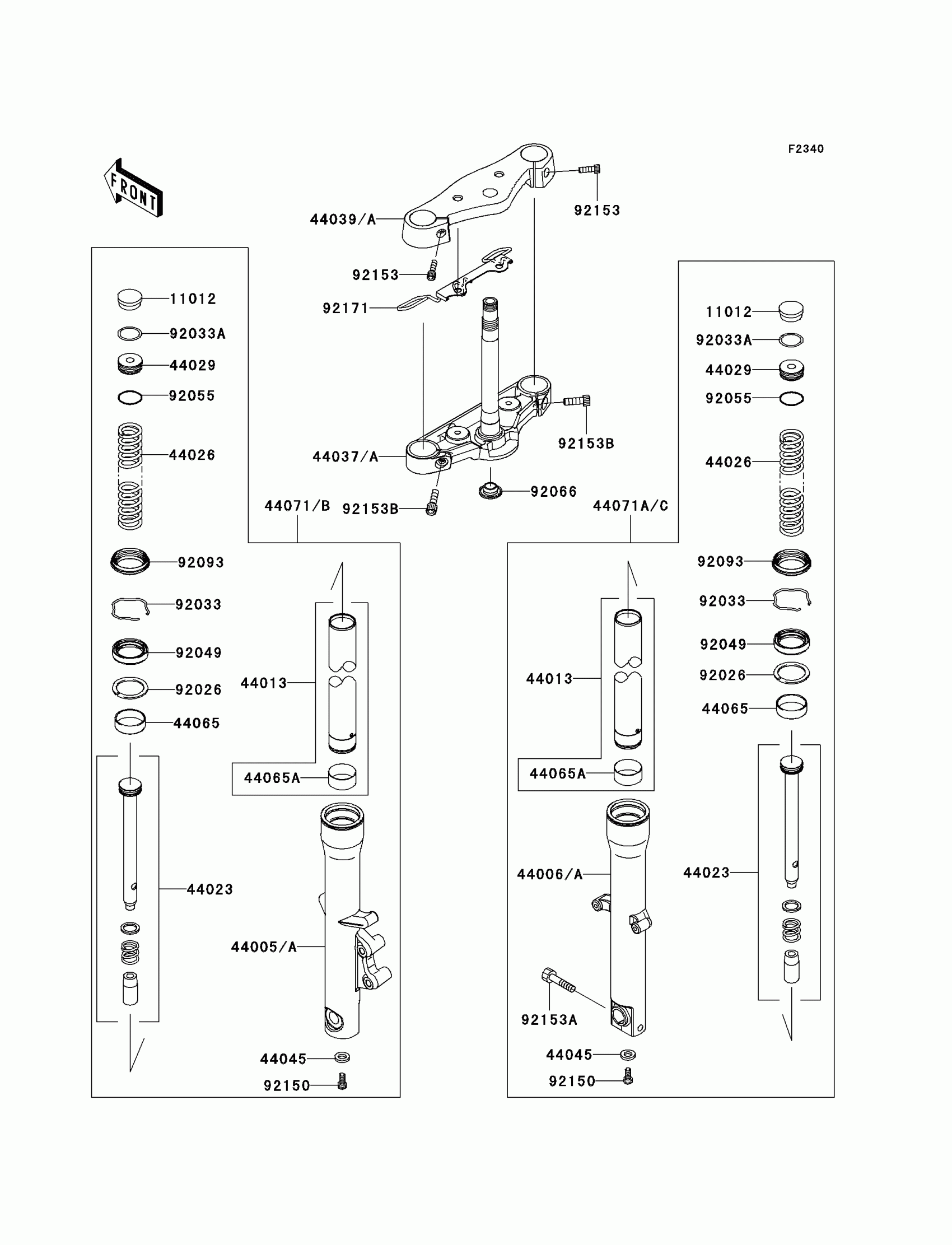

2009 Kawasaki Vulcan® 900 Custom Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,FORK TOP

11012-1618

1

$23.07

In stock

44005

1

$398.80

In stock

44006

PIPE-RIGHT FORK OUTER

44006-0048

1
Out of stock

44013

PIPE-FORK INNER

44013-0049

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0042

1
Out of stock

44026

SPRING-FRONT FORK

44026-0101

1

$75.26

In stock

44029

SEAT-FORK SPRING

44029-0008

1

$30.32

In stock

44037

HOLDER-FORK UNDER

44037-0070

1

$376.92

In stock

44039

HOLDER-FORK UPPER

44039-0062

1

$323.31

In stock

44045

1

$4.88

In stock

44065

BUSHING-FRONT FORK

44065-0019

1

$23.13

In stock

44065A

1

$27.24

In stock

44071

DAMPER-ASSY,FORK,LH

44071-0459

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-0460

1
Out of stock

92026

SPACER,FORK

92026-0090

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92033A

1

$5.40

In stock

92049

SEAL-OIL

92049-0058

1
Out of stock

92055

RING-O,SPRING SEAT

92055-1363

1

$5.84

In stock

92066

PLUG

92066-0078

1

$11.66

In stock

92093

SEAL,DUST

92093-0035

1

$23.33

In stock

92150

BOLT,SOCKET,8X18

92150-1432

1

$7.86

In stock

92153

BOLT,SOCKET,8X30

92153-0500

1
Out of stock

92153A

BOLT

92153-0533

1
Out of stock

92153B

BOLT,SOCKET,10X25

92153-1376

1
Out of stock

92171

CLAMP

92171-0580

1

$53.36

In stock
