2025 Kawasaki Vulcan 900 Classic OIL Pump Diagram

← All diagrams

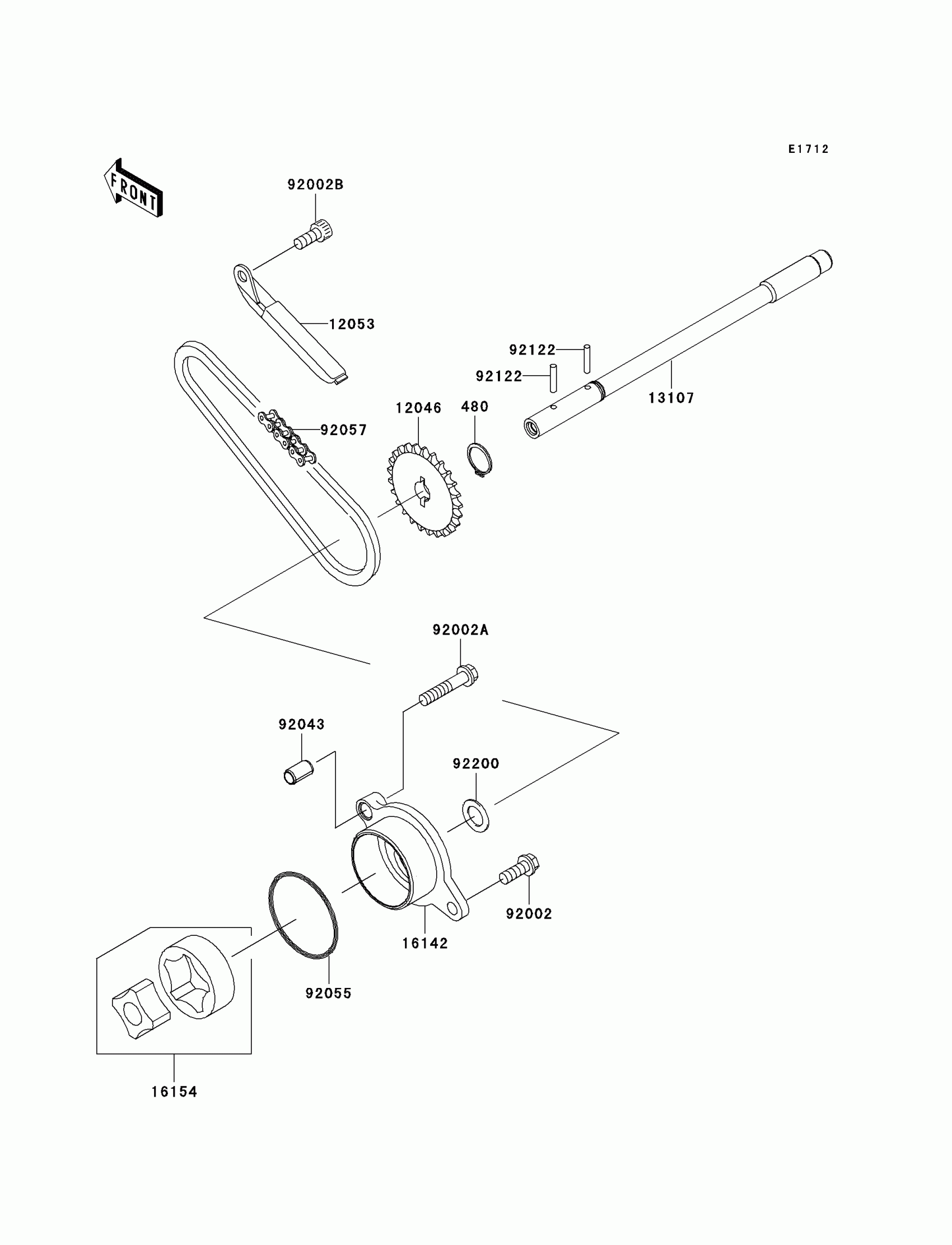

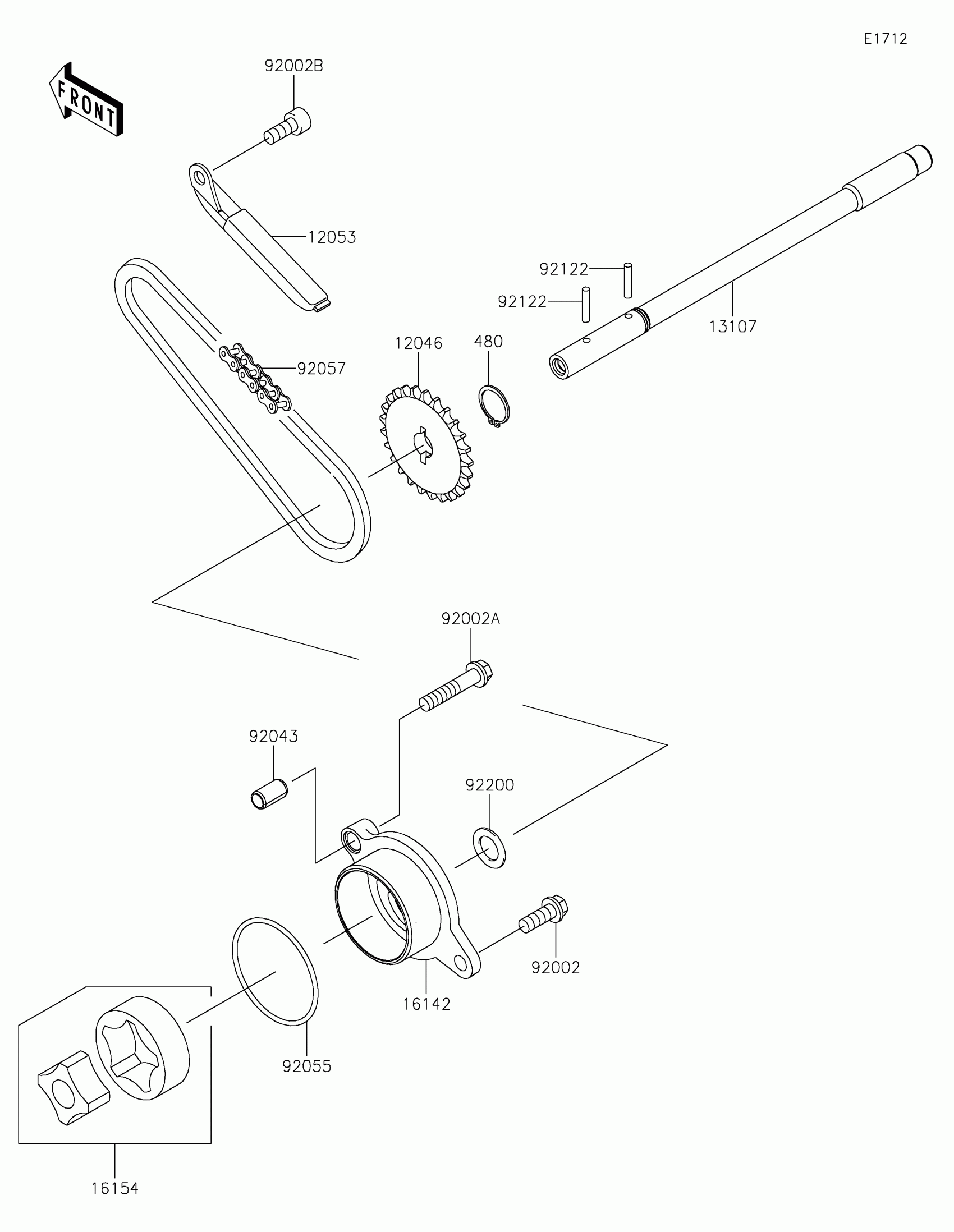

Find the part on the OIL Pump diagram for your 2025 Kawasaki Vulcan 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Vulcan 900 Classic OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,24T

12046-0045

1
Out of stock

12053

GUIDE-CHAIN

12053-0070

1
Out of stock

13107

SHAFT

13107-0116

1
Out of stock

16142

COVER-PUMP,OIL

16142-0028

1
Out of stock

16154

ROTOR-PUMP,40.56X18

16154-1056

1
Out of stock

92002

BOLT,6X16

92002-1439

1
Out of stock

92002A

BOLT,6X30

92002-1534

1
Out of stock

92002B

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,44.7X2.4

92055-1279

1
Out of stock

92057

CHAIN,DID 25H,54LE

92057-0113

1
Out of stock

92122

ROLLER,3X15.8

92122-1126

1
Out of stock

92200

WASHER

92200-1009

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock
