2010 Kawasaki Vulcan® 900 Classic Crankshaft Diagram

← All diagrams

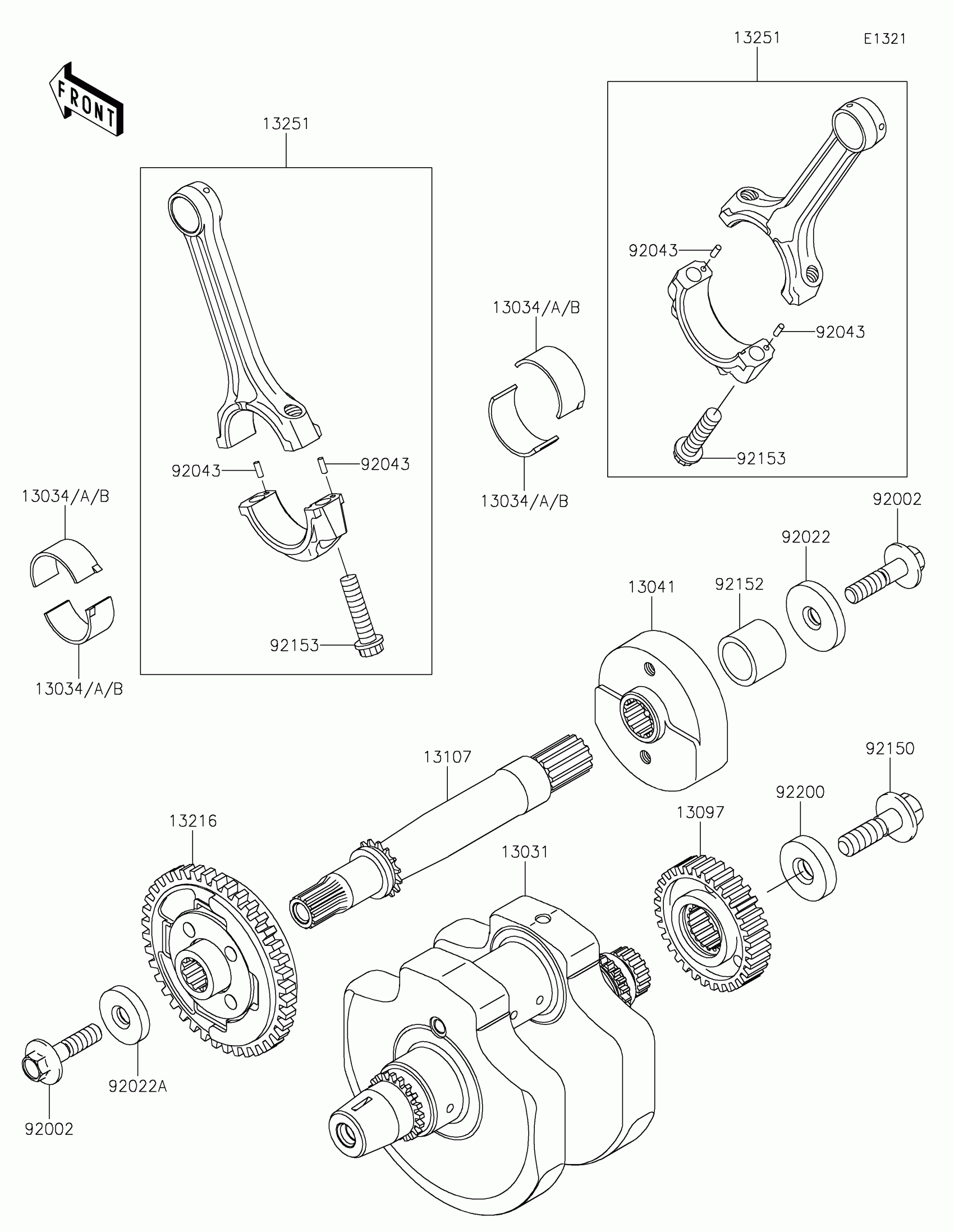

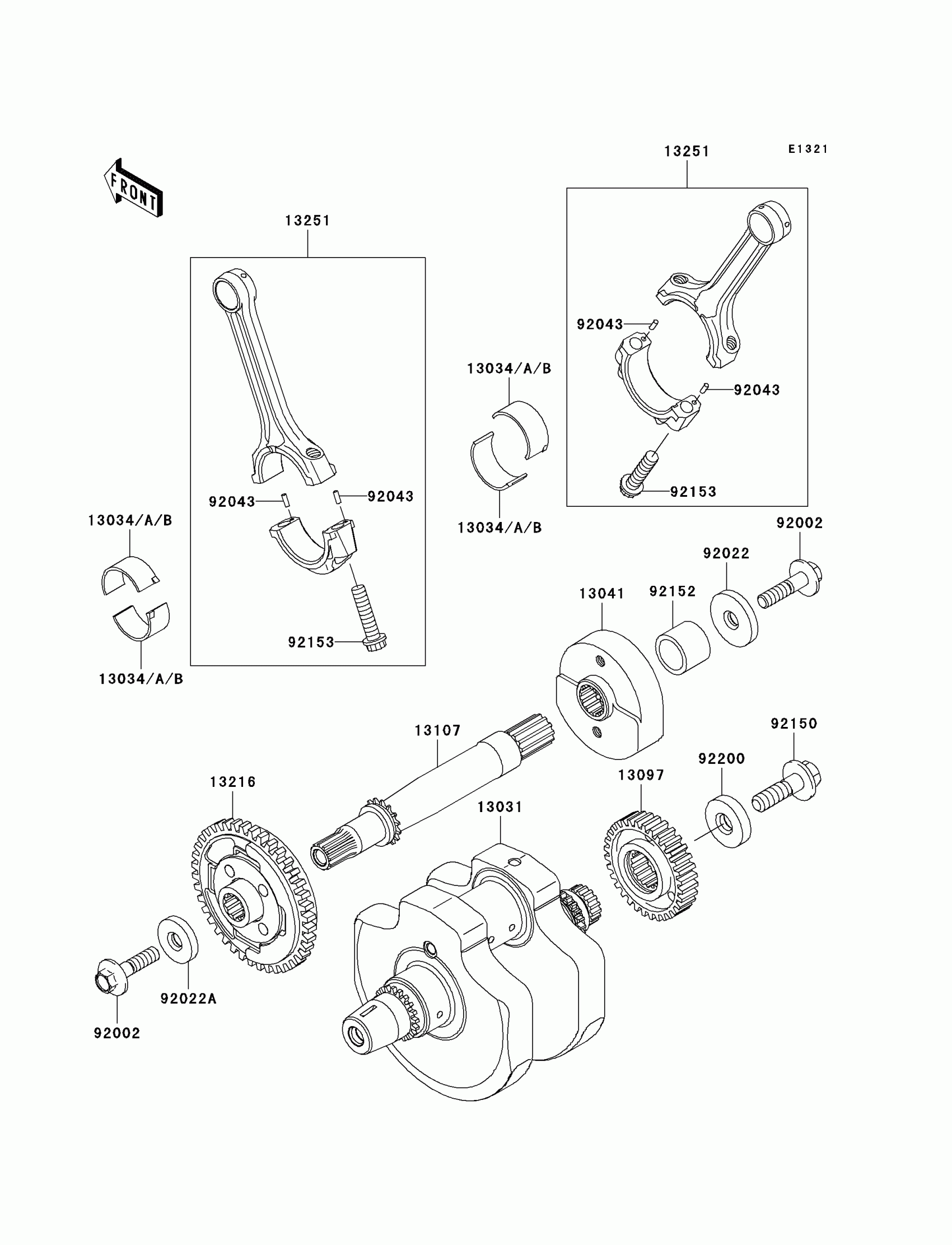

Find the part on the Crankshaft diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0058

1
Out of stock

13034

METAL,CONNECTING ROD,BLUE

13034-1057

—
Out of stock

13034A

METAL,CONNECTING ROD,BLACK

13034-1058

—
Out of stock

13034B

METAL,CONNECTING ROD,BROWN

13034-1059

—
Out of stock

13041

BALANCER,RH

13041-0009

1
Out of stock

13097

1

$102.85

In stock

13107

SHAFT,BALANCER

13107-0115

1
Out of stock

13216

GEAR-COMP,BALANCER,LH

13216-0016

1
Out of stock

13251

ROD-ASSY-CONNECTING,J

13251-0016-JJ

—
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92022

WASHER,10X40X6

92022-1905

1
Out of stock

92022A

WASHER,10X33X6

92022-1906

1
Out of stock

92043

PIN,3X8.5

92043-0033

1
Out of stock

92150

BOLT,12X40

92150-1717

1
Out of stock

92152

COLLAR,23X30X23

92152-0358

1
Out of stock

92153

BOLT,CON-ROD,9X38

92153-1330

1
Out of stock

92200

WASHER,12X36X8

92200-1249

1
Out of stock
