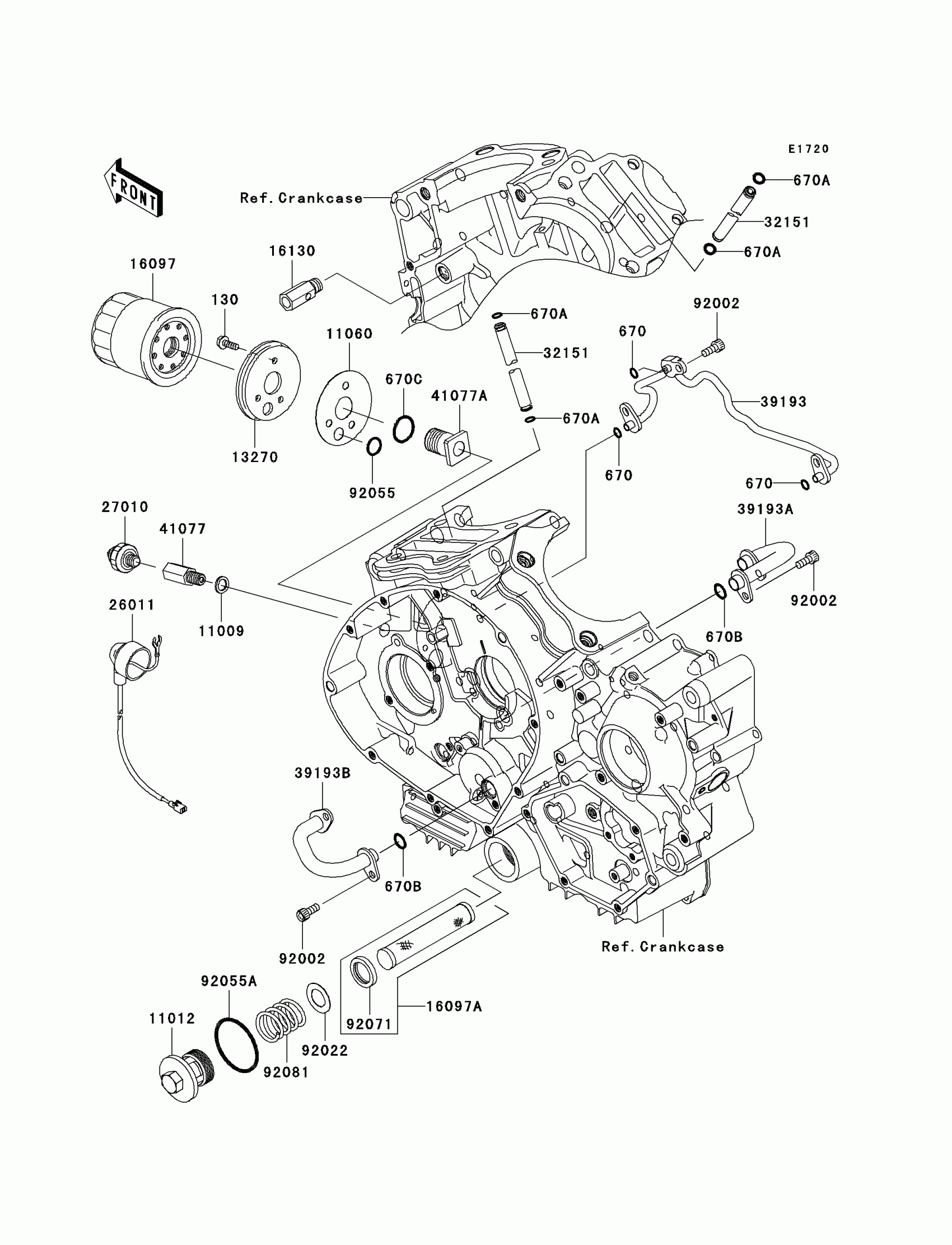

2010 Kawasaki Vulcan® 900 Classic OIL Filter Diagram

← All diagrams

Find the part on the OIL Filter diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic OIL Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130CA0514

1

$4.46

In stock

670

O RING,6MM

670D1506

1
Out of stock

670A

O RING,7MM

670D1507

1
Out of stock

670B

O RING,12MM

670D2012

1
Out of stock

670C

O RING,20MM

670D2020

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1
Out of stock

11012

CAP,OIL FILTER

11012-1461

1
Out of stock

11060

GASKET,OIL FILTER

11060-1092

1
Out of stock

13270

PLATE,OIL FILTER

13270-1170

1

$29.98

In stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16097A

FILTER-ASSY-OIL

16097-1058

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1001

1
Out of stock

26011

WIRE-LEAD

26011-0109

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

32151

PIPE

32151-1895

1
Out of stock

39193

PIPE-OIL

39193-0035

1

$57.81

In stock

39193A

PIPE-OIL

39193-0036

1

$35.80

In stock

39193B

PIPE-OIL

39193-0037

1

$35.80

In stock

41077

ADAPTER,PRESSURE SWITCH

41077-0017

1
Out of stock

41077A

ADAPTER

41077-1052

1
Out of stock

92002

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92022

WASHER,16.5X28X0.5

92022-169

1
Out of stock

92055

RING-O,13.0X1.9

92055-1011

1
Out of stock

92055A

RING-O,35.2X2.4

92055-1358

1
Out of stock

92071

GROMMET,OIL STRAINER

92071-100

1
Out of stock

92081

SPRING,OIL FILTER

92081-1862

1
Out of stock
