2010 Kawasaki Vulcan® 900 Classic LT Water Pipe Diagram

← All diagrams

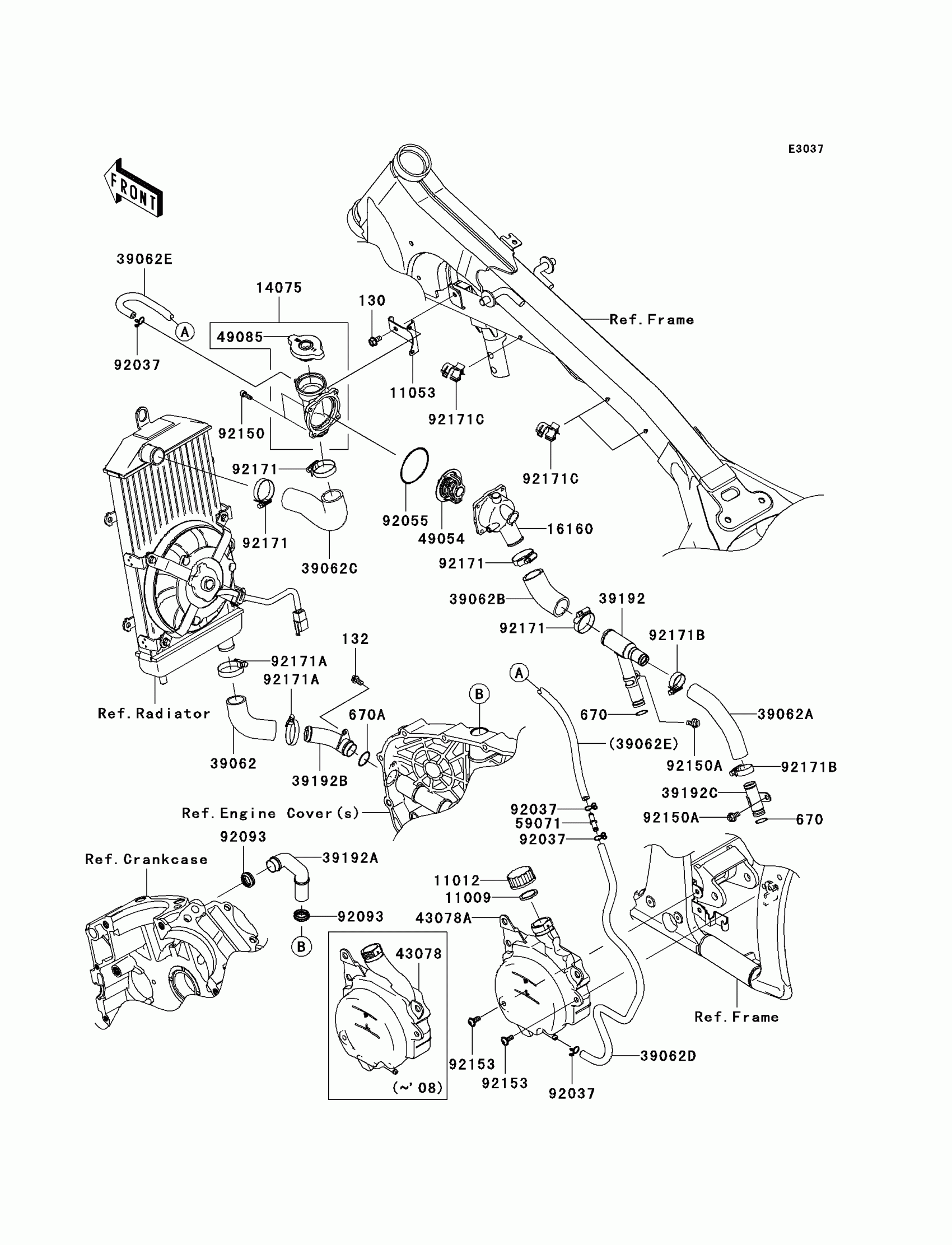

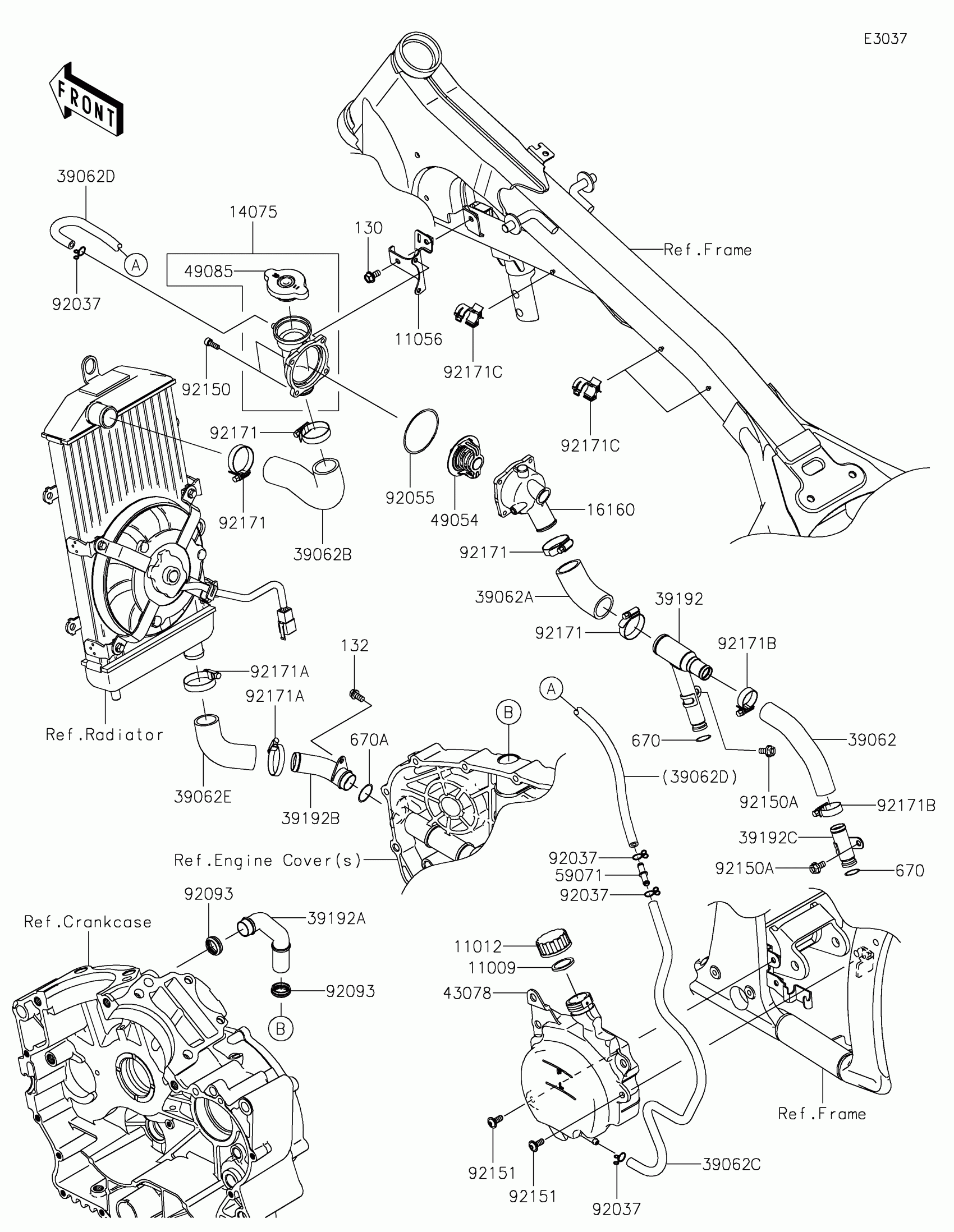

Find the part on the Water Pipe diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

670

O RING,14MM

670B2014

1
Out of stock

670A

O RING,21MM

670B2021

1
Out of stock

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

11053

BRACKET,THERMO CASE

11053-1989

1
Out of stock

14075

CAP-ASSY

14075-0001

1
Out of stock

16160

BODY,THERMOSTAT

16160-0095

1
Out of stock

39062

HOSE-COOLING,PIPE-WATER PUMP

39062-0009

1
Out of stock

39062A

HOSE-COOLING,RR HEAD-PIPE

39062-0118

1
Out of stock

39062B

HOSE-COOLING,PIPE-THERMO

39062-0120

1
Out of stock

39062C

HOSE-COOLING,THERMO-RAD

39062-0121

1
Out of stock

39062D

HOSE-COOLING,RESERVOIR-JOINT

39062-0124

1
Out of stock

39062E

HOSE-COOLING,JOINT-THERMO

39062-0132

1
Out of stock

39192

PIPE-WATER,FR HEAD

39192-0042

1
Out of stock

39192A

PIPE-WATER

39192-0043

1
Out of stock

39192B

PIPE-WATER

39192-0044

1
Out of stock

39192C

PIPE-WATER,RR HEAD

39192-0048

1
Out of stock

43078A

RESERVOIR

43078-0045

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

59071

JOINT

59071-3717

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,53.5X2.6

92055-112

1
Out of stock

92093

SEAL

92093-1427

1
Out of stock

92150

BOLT,SOCKET,5X14

92150-1180

1
Out of stock

92150A

BOLT,FLANGED,6X12

92150-1826

1
Out of stock

92153

BOLT,SOCKET,6X15

92153-1451

1
Out of stock

92171

CLAMP

92171-0179

1
Out of stock

92171A

CLAMP

92171-0261

1
Out of stock

92171B

CLAMP

92171-0338

1
Out of stock

92171C

CLAMP,DIA=15

92171-1424

1
Out of stock
