2010 Kawasaki Vulcan® 900 Classic LT Water Pump Diagram

← All diagrams

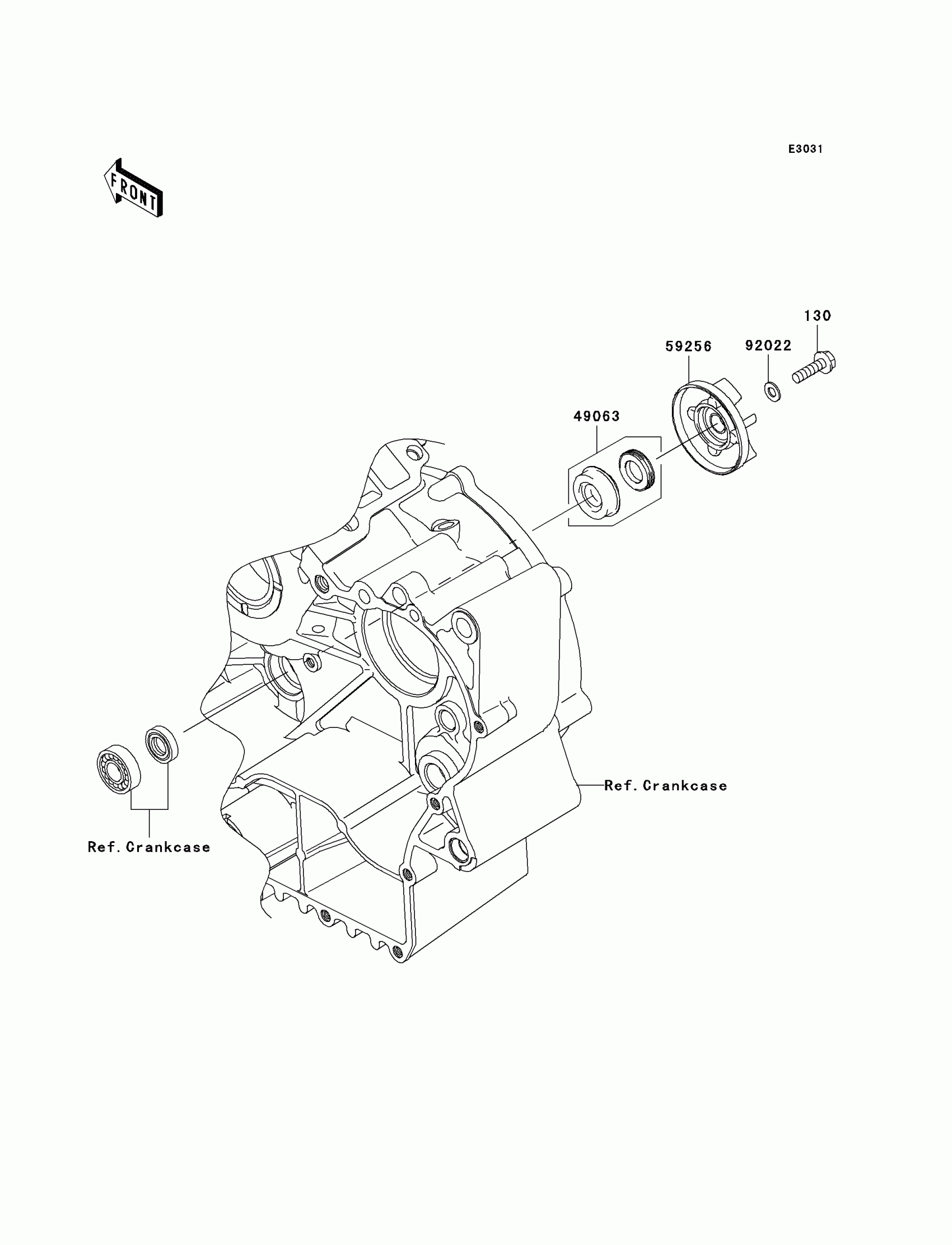

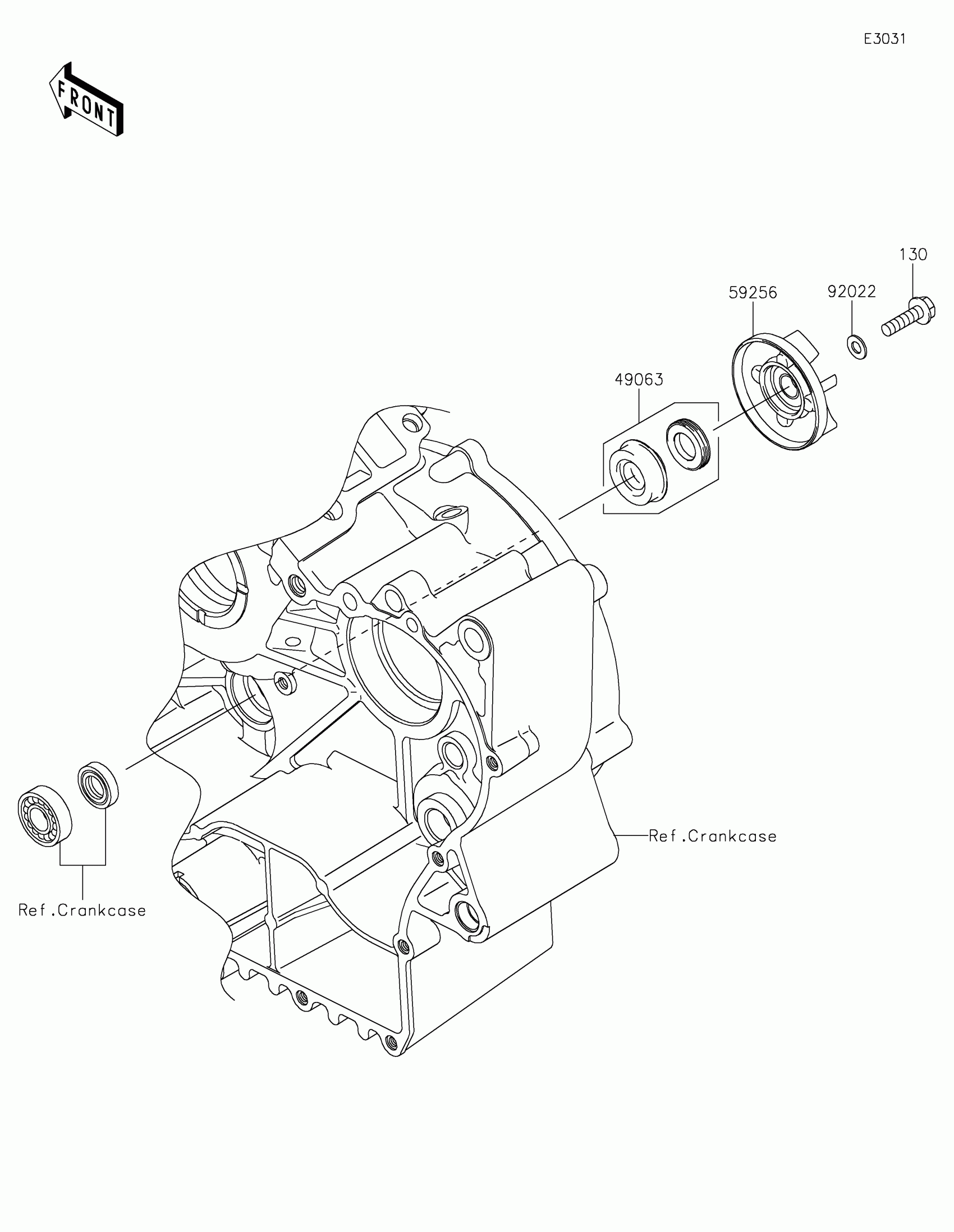

Find the part on the Water Pump diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 900 Classic LT Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-1073

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock
