2010 Kawasaki Vulcan® 900 Classic LT Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

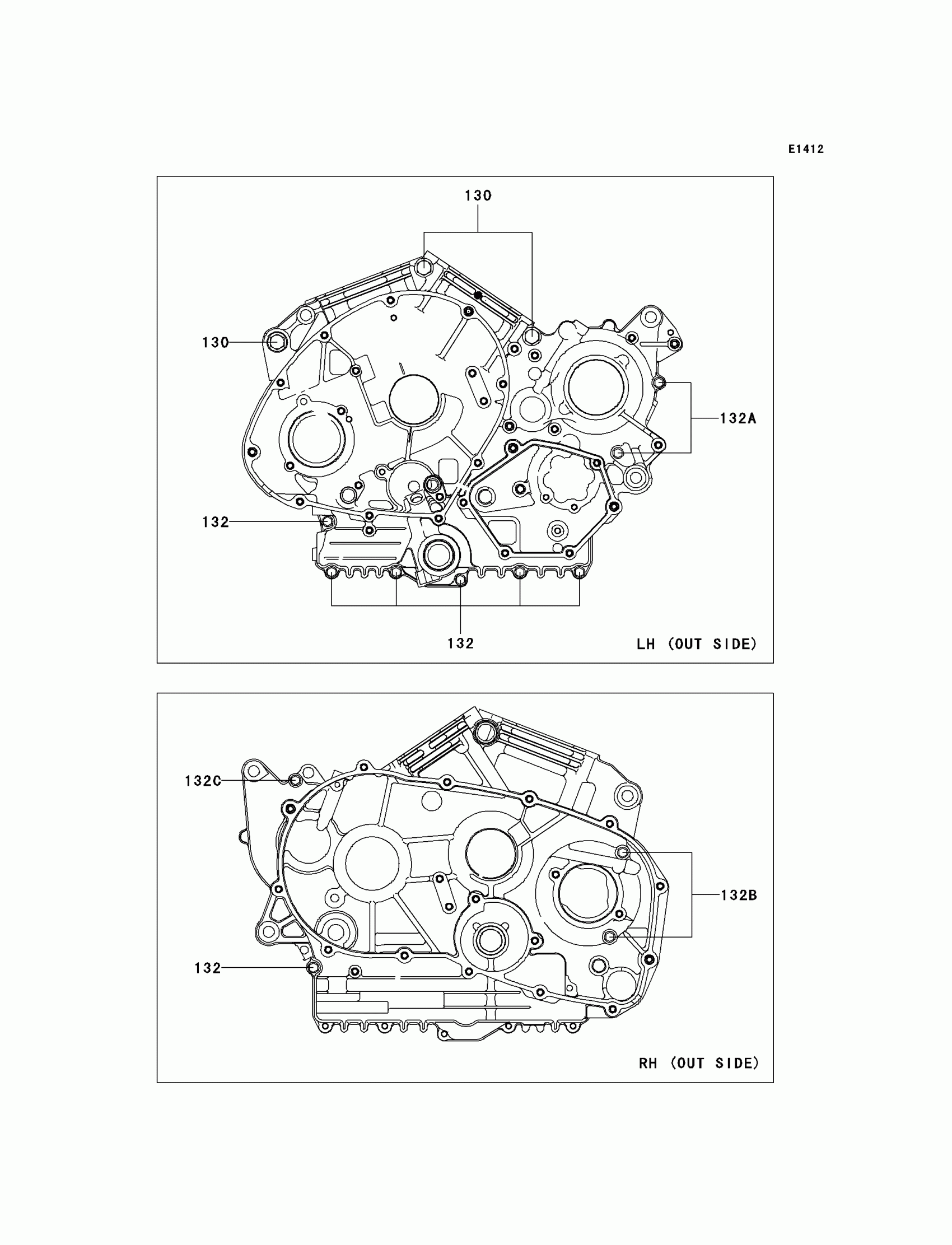

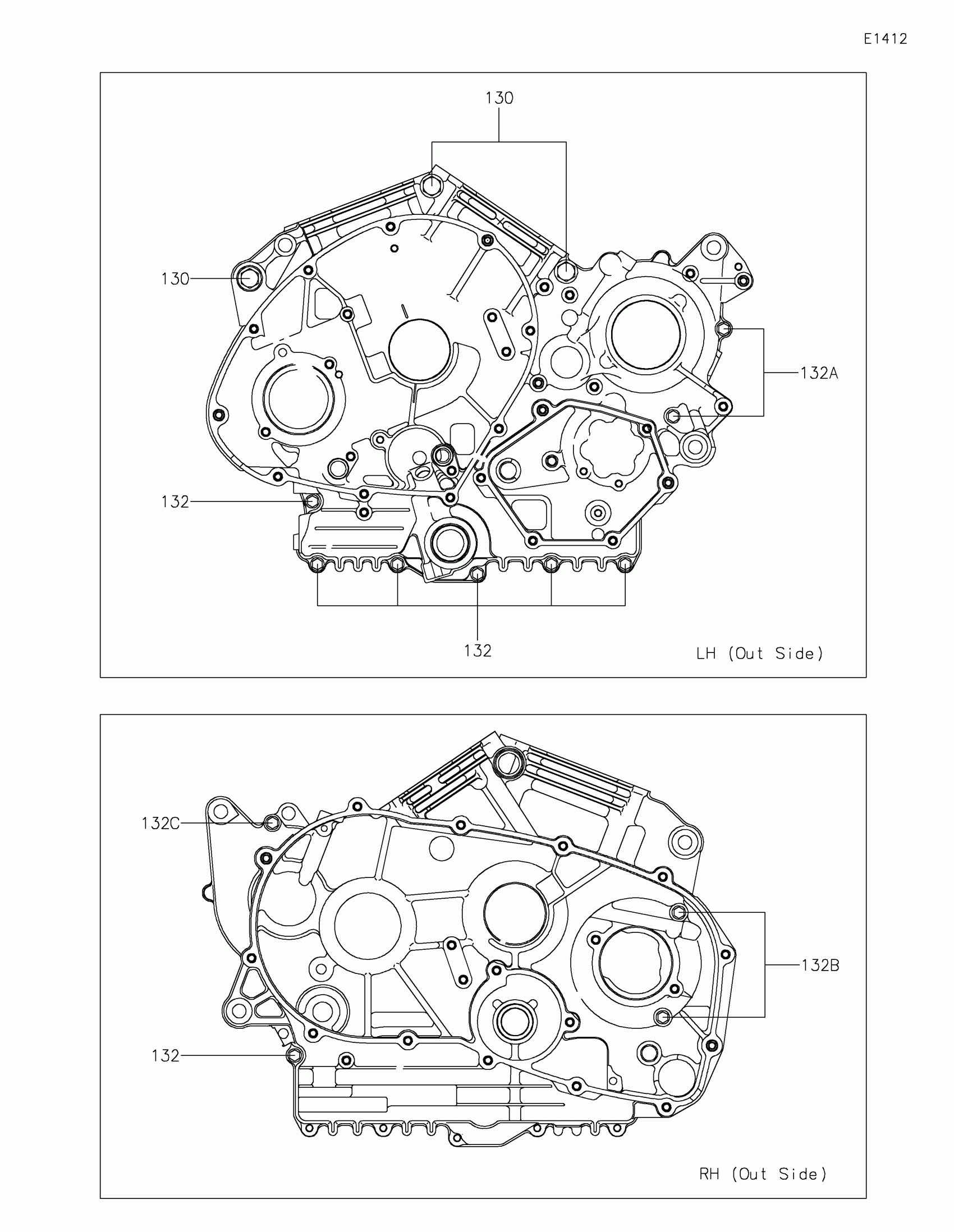

2010 Kawasaki Vulcan® 900 Classic LT Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X90

130BB1090

1

$3.19

In stock

132

1

$3.28

In stock

132A

1

$4.66

In stock

132B

1

$4.20

In stock

132C

1

$1.88

In stock
← Crankcase Crankshaft →
