2010 Kawasaki Vulcan® 900 Classic LT Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

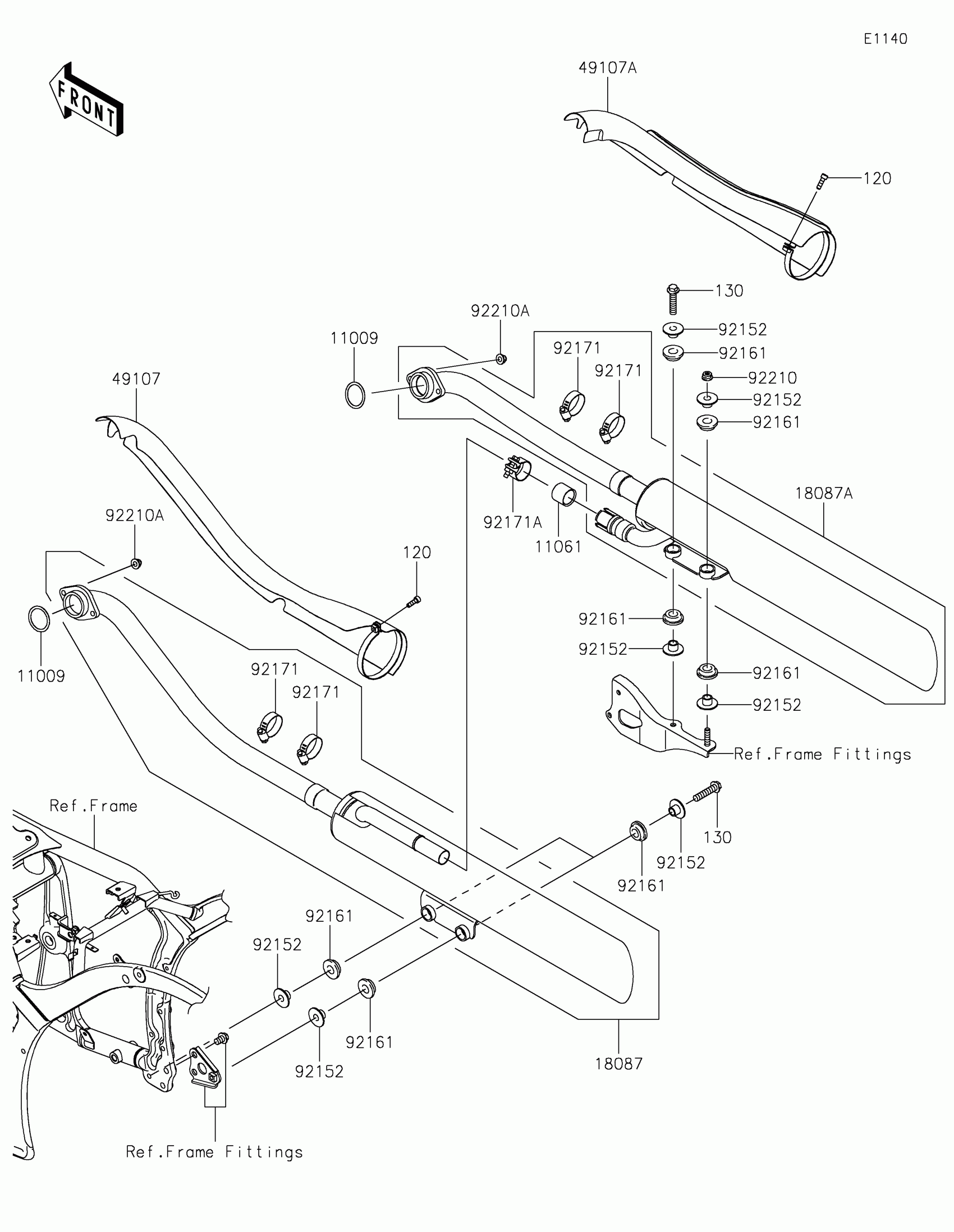

2010 Kawasaki Vulcan® 900 Classic LT Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120CC0620

1
Out of stock

130

BOLT-FLANGED,8X35

130BB0835

1
Out of stock

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

1
Out of stock

11061

GASKET,MUFFLER JOINT

11061-0207

1
Out of stock

18087B

MUFFLER

18087-0143

1
Out of stock

18087C

MUFFLER

18087-0144

1
Out of stock

49107

COVER-EXHAUST PIPE,FR

49107-0087

1
Out of stock

49107A

COVER-EXHAUST PIPE,RR

49107-0106

1
Out of stock

92015

NUT,8MM

92015-1357

1
Out of stock

92152

COLLAR,8.8X12X10.6

92152-0082

1
Out of stock

92161

DAMPER

92161-0135

1
Out of stock

92171

CLAMP

92171-0059

1
Out of stock

92171A

CLAMP

92171-0593

1
Out of stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
