2010 Kawasaki Vulcan® 900 Classic LT Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2010 Kawasaki Vulcan® 900 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

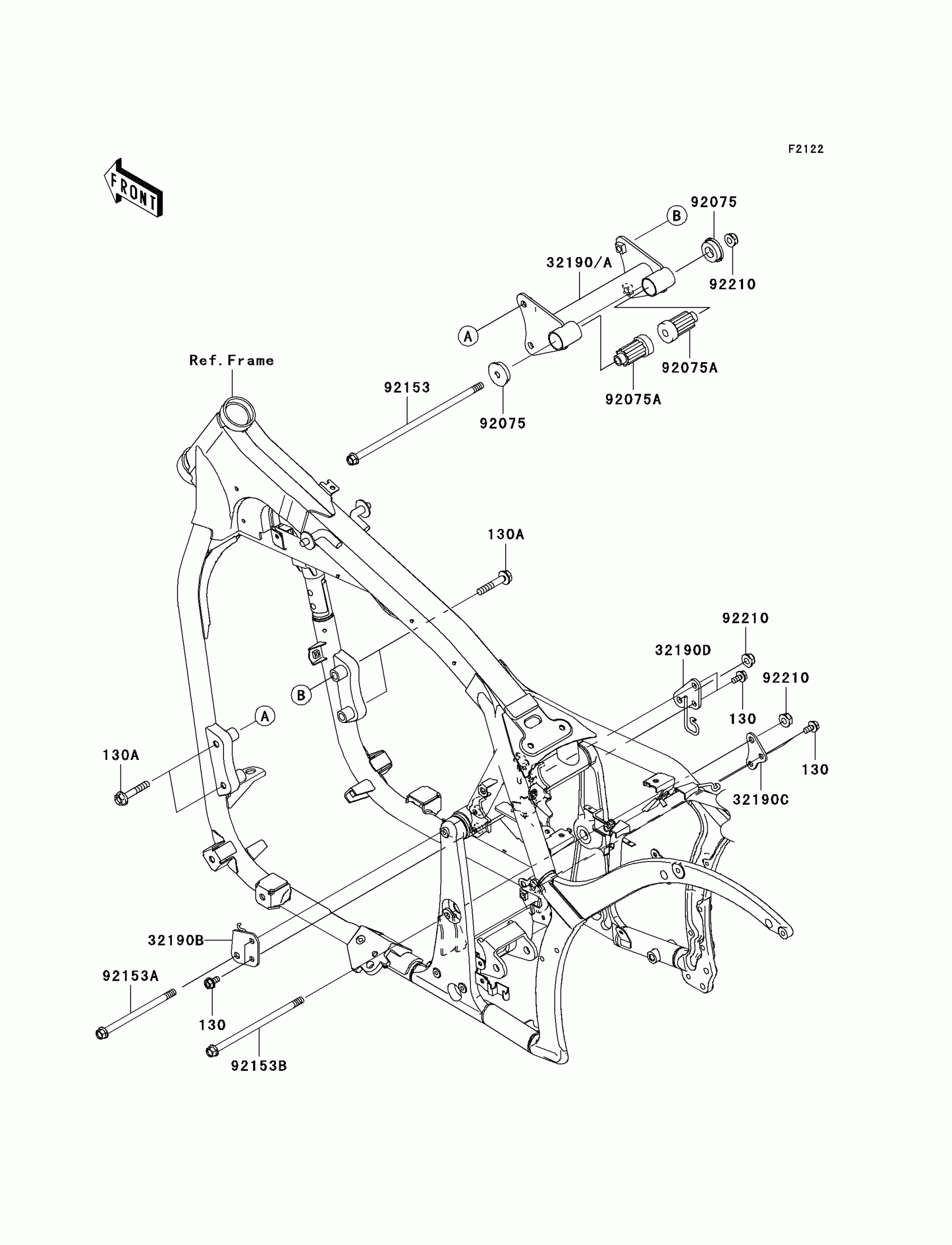

2010 Kawasaki Vulcan® 900 Classic LT Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130BB0816

1

$1.47

In stock

130A

BOLT-FLANGED,10X55

130BB1055

1

$5.28

In stock

32190A

1

$105.75

In stock

32190B

1

$14.39

In stock

32190C

1

$4.95

In stock

32190D

1

$17.39

In stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1

$21.76

In stock

92075A

1

$29.30

In stock

92153

BOLT,FLANGED,10X285

92153-1909

1

$21.24

In stock

92153A

BOLT,FLANGED,10X158

92153-1910

1

$10.85

In stock

92153B

BOLT,FLANGED,10X198

92153-1911

1

$12.58

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
