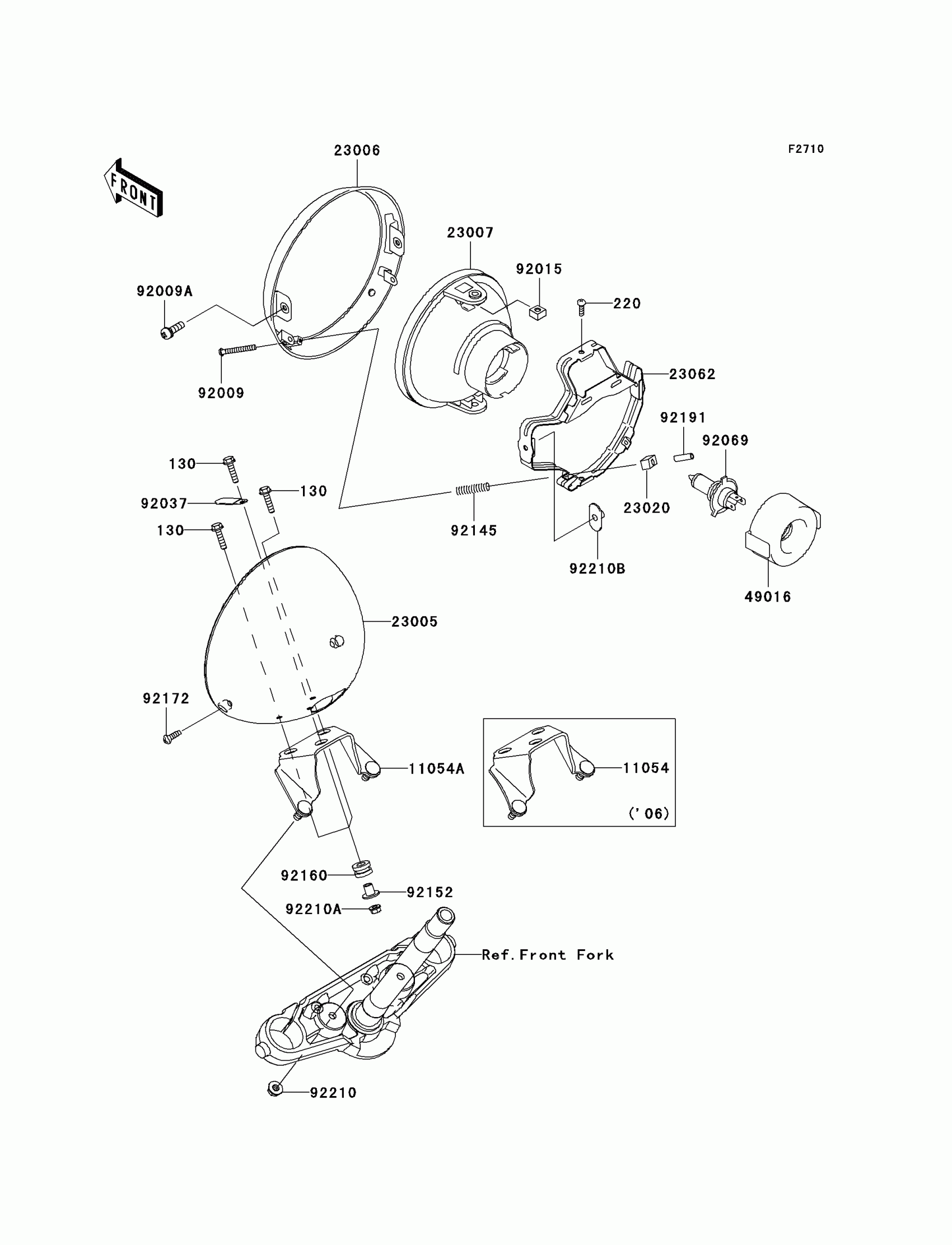

Find the part on the Headlight diagram for your 2008 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Vulcan® 900 Classic Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

220

1

$1.73

In stock

11054A

BRACKET,HEAD LAMP

11054-1201

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-0014

1
Out of stock

23006

RIM-LAMP

23006-1081

1

$79.14

In stock

23007

LENS-COMP,HEAD LAMP

23007-1396

1

$140.92

In stock

23020

1

$3.69

In stock

23062

1

$51.45

In stock

49016

COVER-SEAL,SOCKET

49016-1203

1

$11.61

In stock

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009A

SCREW,5X16

92009-1879

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

1

$4.39

In stock

92152

COLLAR

92152-1074

1

$4.93

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92172

SCREW,5X14

92172-0145

1

$1.78

In stock

92191

TUBE,3.5X5.5X19

92191-1217

1

$2.02

In stock

92210

NUT,FLANGED,8MM

92210-0004

1
Out of stock

92210A

NUT,FLANGED,6MM

92210-0368

1
Out of stock

92210B

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
