2025 Kawasaki Vulcan 900 Classic Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2025 Kawasaki Vulcan 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

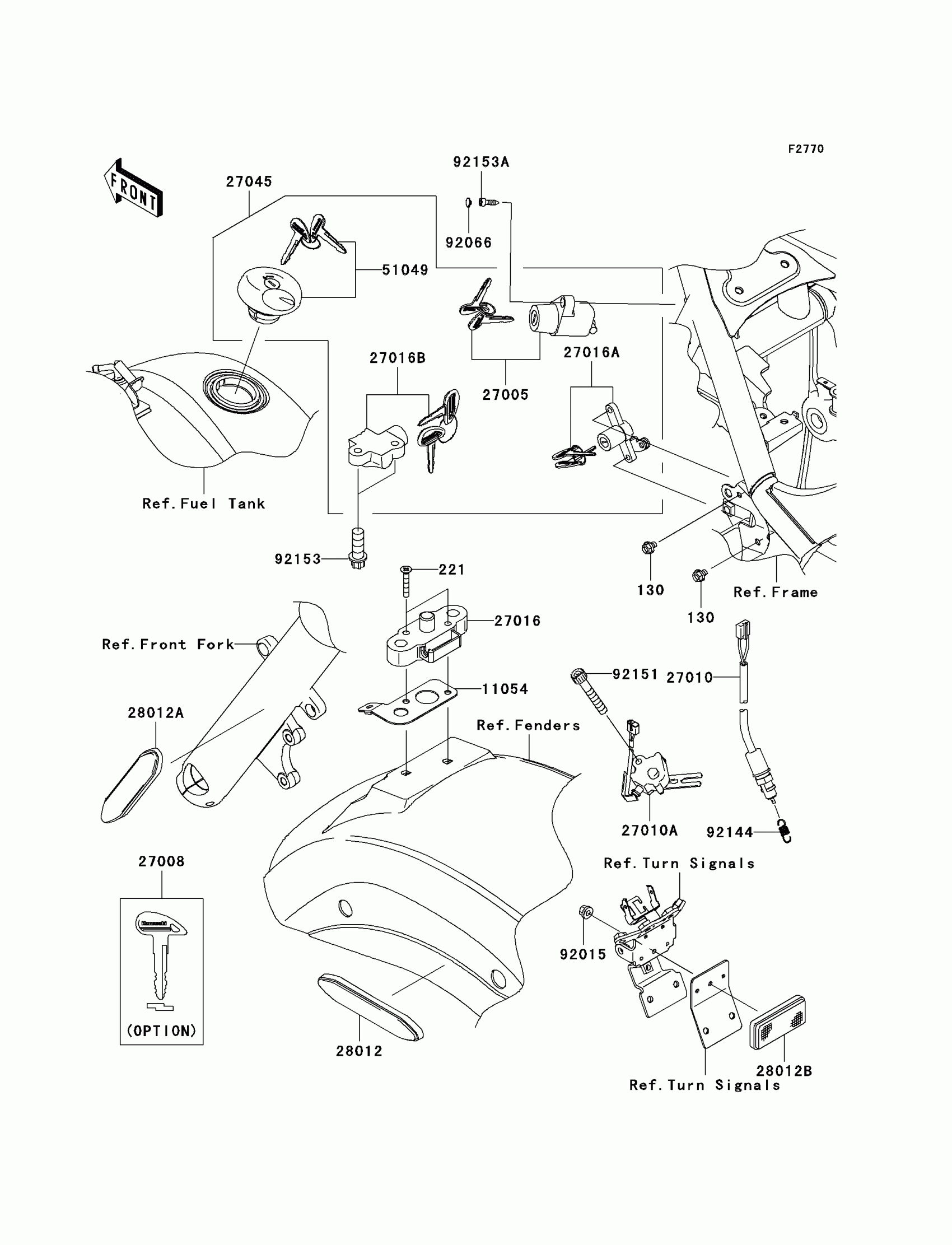

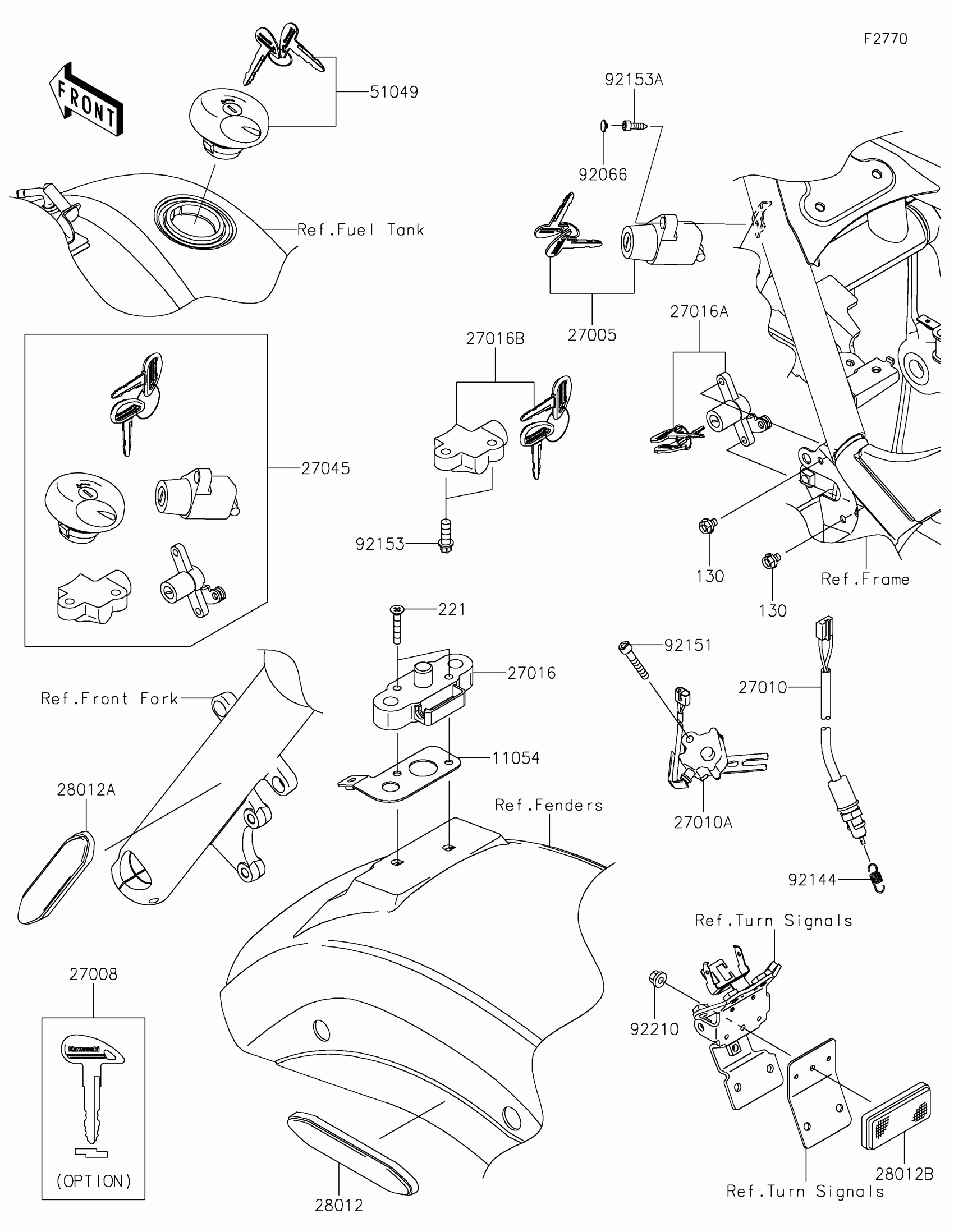

2025 Kawasaki Vulcan 900 Classic Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,SEAT LOCK

11054-0492

1

$8.46

In stock

27005

SWITCH-ASSY-IGNITION

27005-0032

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0042

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-0050

1
Out of stock

27010A

SWITCH,SIDE STAND

27010-1470

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5341

1
Out of stock

27016B

LOCK-ASSY,STEERING

27016-5342

1
Out of stock

27045

SWITCH-ASSY

27045-5323

1
Out of stock

28012

REFLECTOR-REFLEX

28012-0010

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0019

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

51049

CAP-TANK,FUEL

51049-5001

1
Out of stock

92066

PLUG

92066-1543

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92151

BOLT,SOCKET,6X35

92151-1390

1
Out of stock

92153

BOLT,TORX,8X22

92153-1273

1
Out of stock

92153A

BOLT,SOCKET,5X16

92153-1685

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,6X8

130BB0608

1

$5.31

In stock

221

SCREW-CSK-CROS,6X35

221AB0635

1
Out of stock
