Find the part on the Starter Motor diagram for your 2025 Kawasaki Vulcan 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

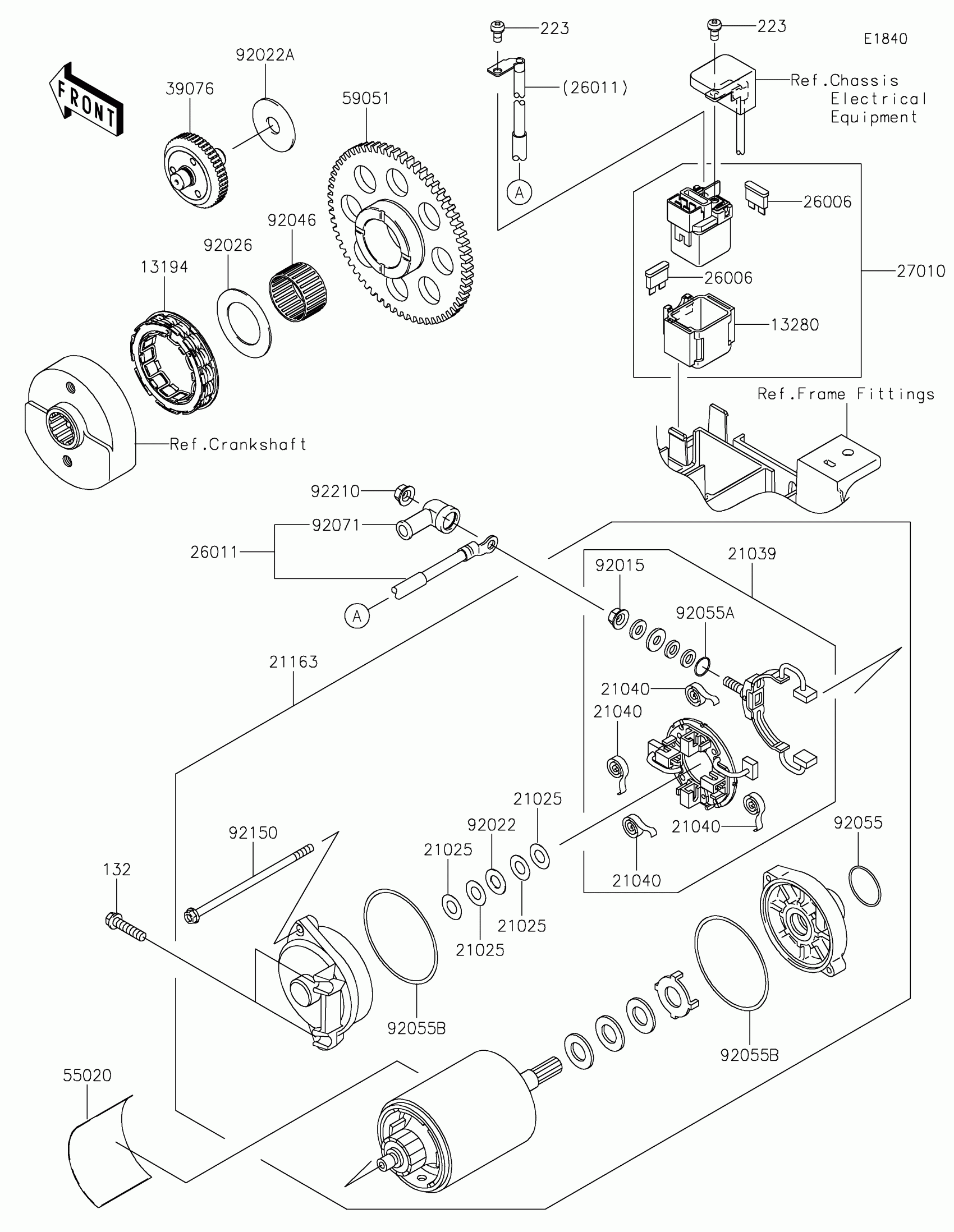

2025 Kawasaki Vulcan 900 Classic Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13194

CLUTCH-ONEWAY

13194-0009

1
Out of stock

13280

1

$12.47

In stock

21025

WASHER,9.1X18X0.2

21025-011

—
Out of stock

21039

BRUSH,CARBON

21039-1060

1
Out of stock

21040

SPRING-BRUSH

21040-1055

1
Out of stock

21163

STARTER-ELECTRIC

21163-0066

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-0126

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0793

1
Out of stock

39076

LIMITER

39076-0008

1

$130.83

In stock

55020

GUARD,STARTER MOTER

55020-1589

1
Out of stock

59051

GEAR-SPUR,63T

59051-0060

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92022A

WASHER,12.3X38X2.0

92022-1664

1
Out of stock

92026

SPACER,31X49.5X1.2

92026-1490

1
Out of stock

92046

BEARING-NEEDLE,K30X35X20

92046-1171

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92071

GROMMET

92071-0024

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1572

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$2.29

In stock

223

SCREW-PAN-WS-CROS,5X10

223AA0510

1
Out of stock
