2010 Kawasaki Vulcan® 900 Classic Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

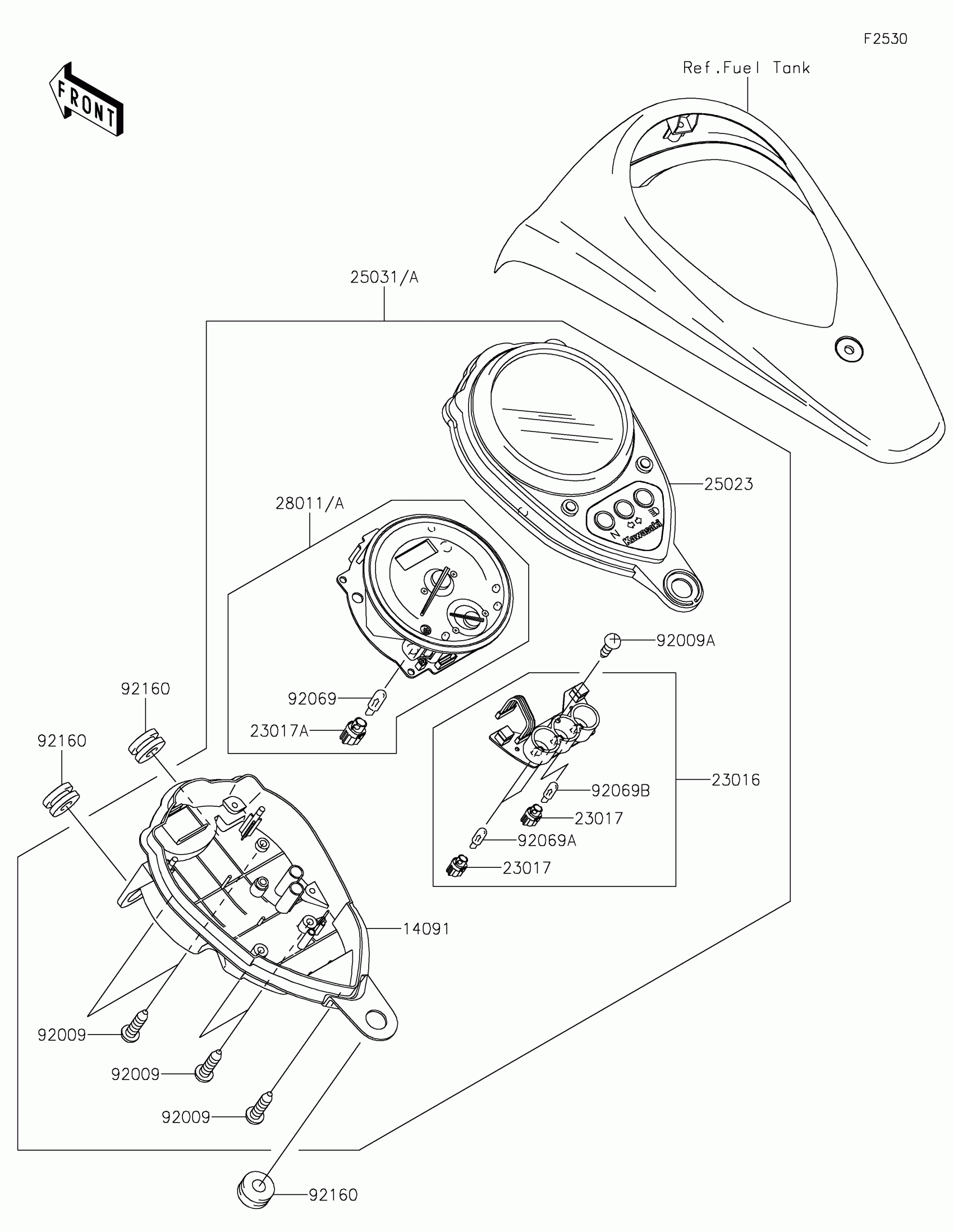

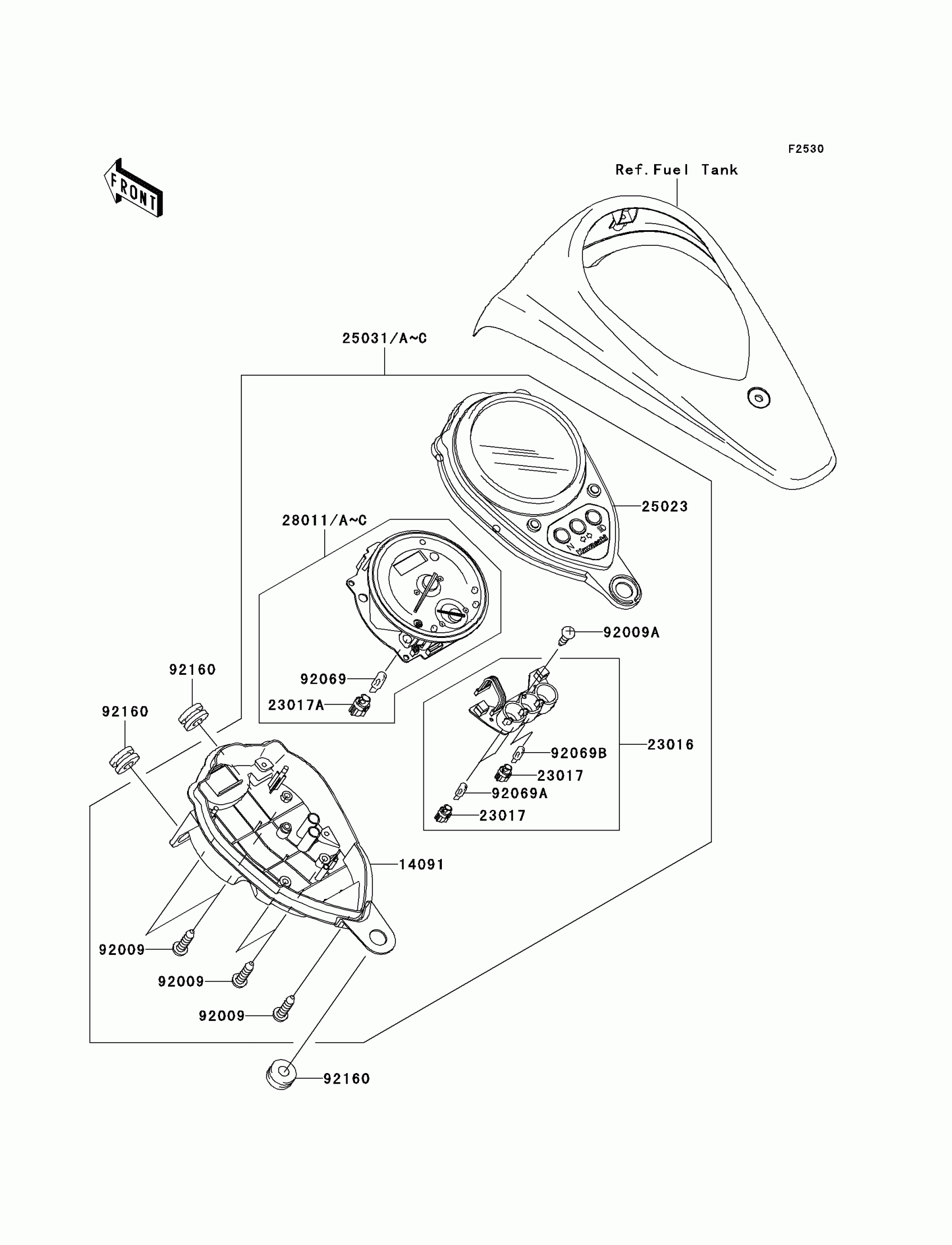

2010 Kawasaki Vulcan® 900 Classic Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-1215

1

$66.82

In stock

23016

LAMP-ASSY

23016-1186

1

$79.60

In stock

23017

1

$3.29

In stock

23017A

SOCKET

23017-1064

1

$5.19

In stock

25023

1

$187.54

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,TAPPING,4X14

92009-1503

1
Out of stock

92069

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92069A

BULB,12V 2W,T5

92069-1105

1

$4.07

In stock

92069B

BULB,12V 1.4W,T5

92069-1117

1

$3.95

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

25031B

METER-ASSY,MPH

25031-0273

1

$841.23

In stock

25031C

METER-ASSY,KPH

25031-0274

1

$841.23

In stock

28011B

1

$543.25

In stock

28011C

1

$607.39

In stock
