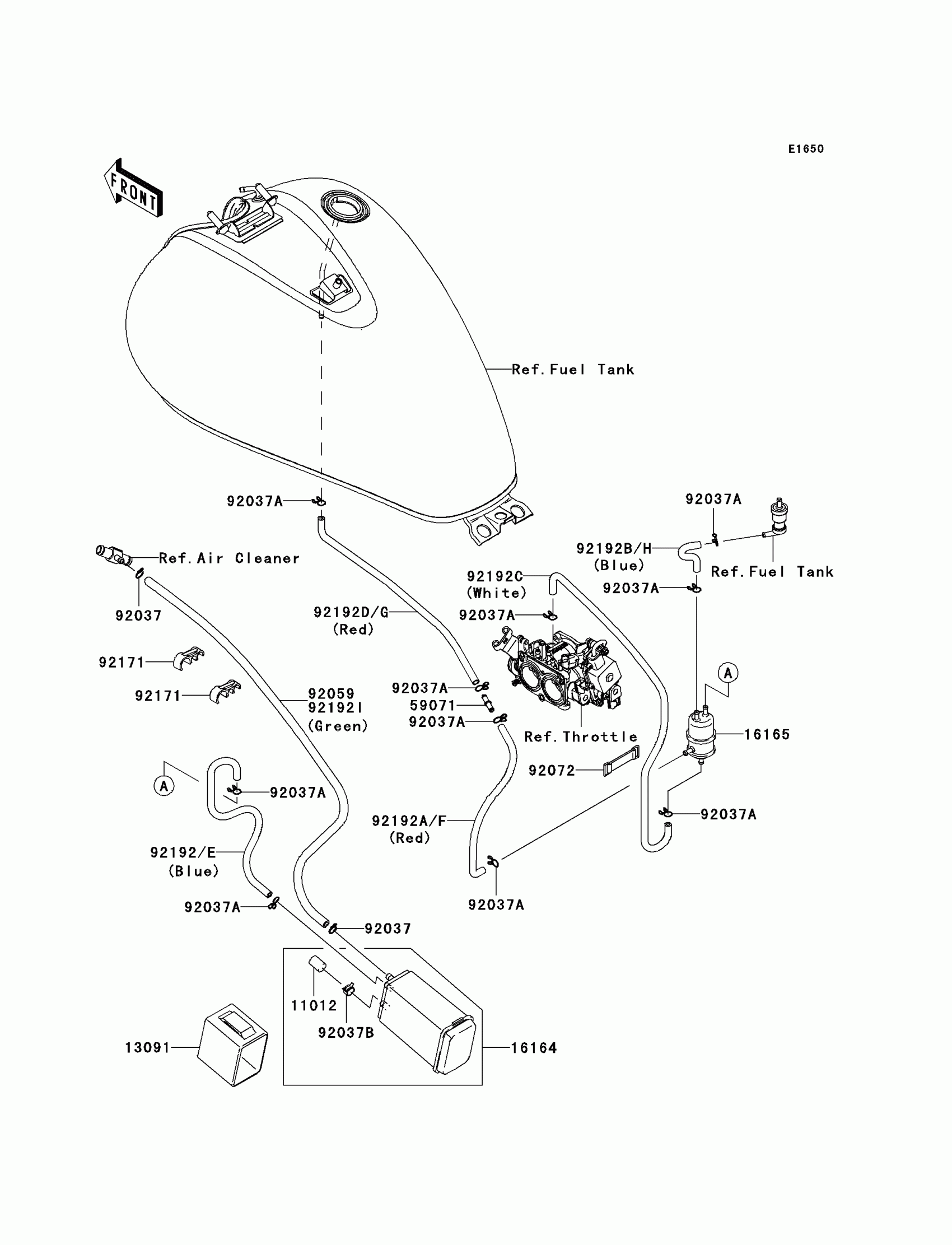

Find the part on the Fuel Evaporative System diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

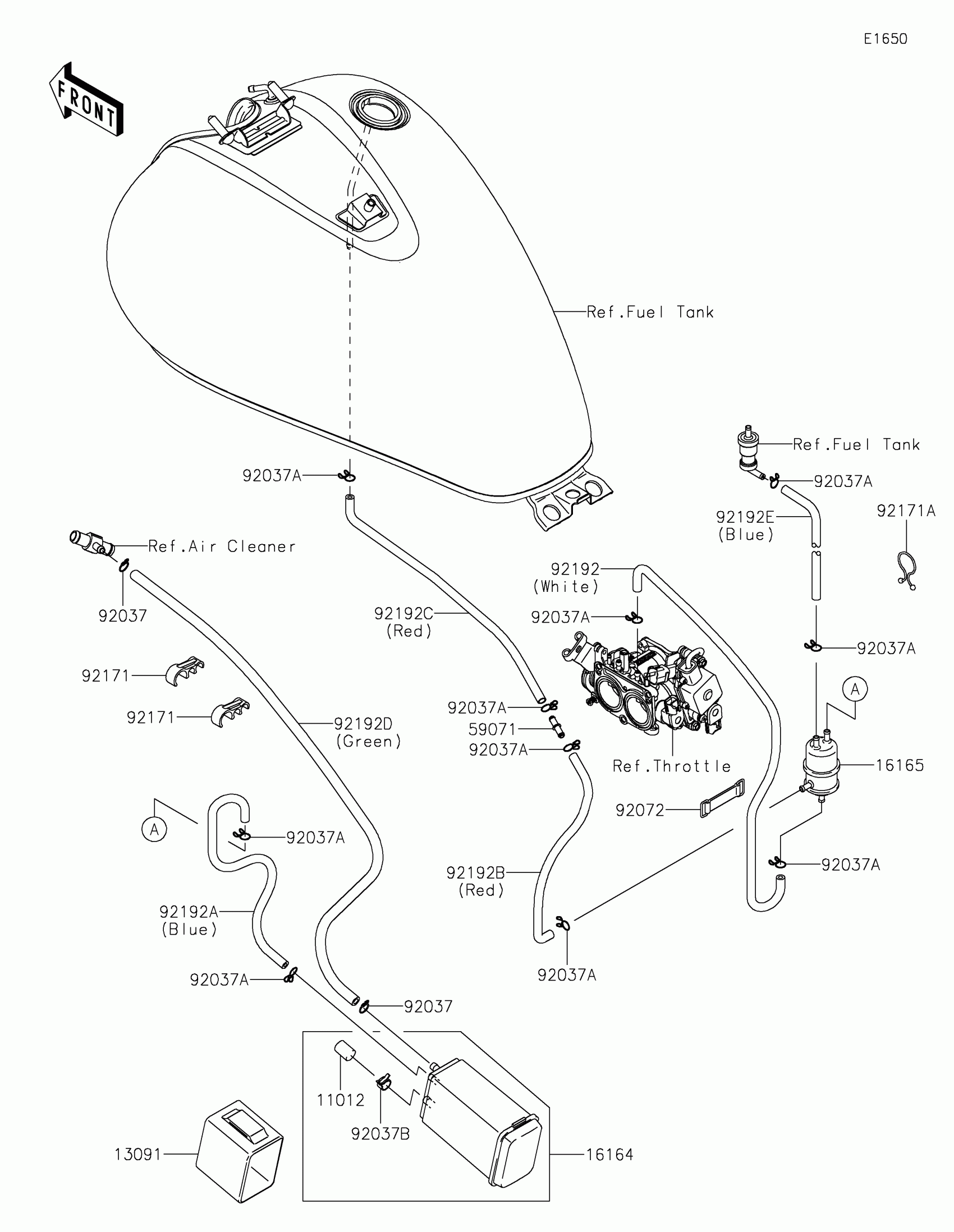

2010 Kawasaki Vulcan® 900 Classic Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

13091

HOLDER,CANISTER

13091-1308

1
Out of stock

16164

CANISTER

16164-1054

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

59071

JOINT

59071-3717

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92072

BAND,L=50

92072-1419

1
Out of stock

92171

CLAMP

92171-0765

1
Out of stock

92192C

TUBE,SEPARATOR-THROBO,WHITE

92192-0275

1
Out of stock

92192E

TUBE,SEPARATOR-CANISTER,BLUE

92192-0505

1
Out of stock

92192F

TUBE,SEPARATOR-JOINT,RED

92192-0506

1
Out of stock

92192G

TUBE,JOINT-TANK,RED

92192-0507

1
Out of stock

92192H

TUBE,SEPARATOR-VALVE,BLUE

92192-0508

1
Out of stock

92192I

TUBE,7X12X760,GREEN

92192-0509

1
Out of stock
