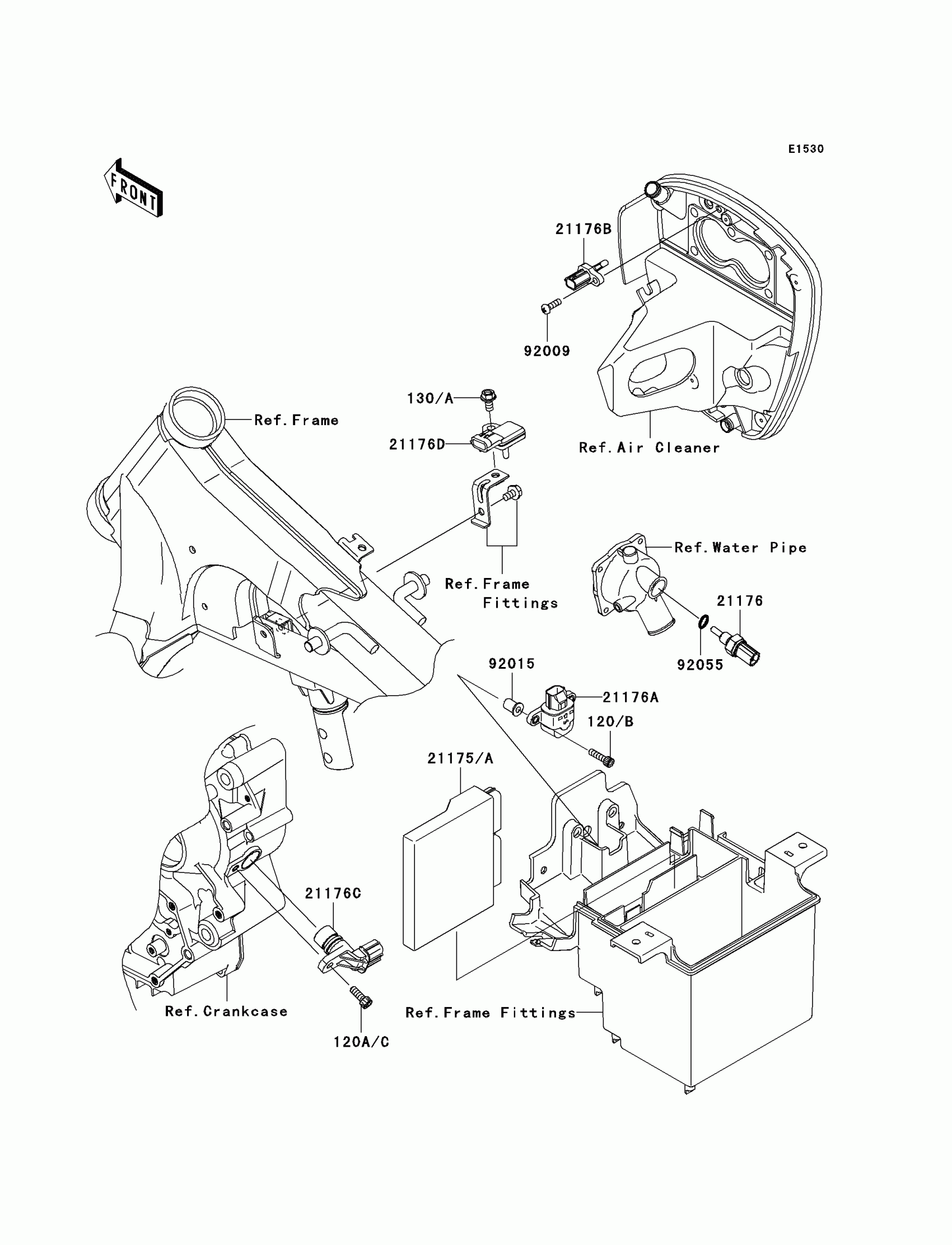

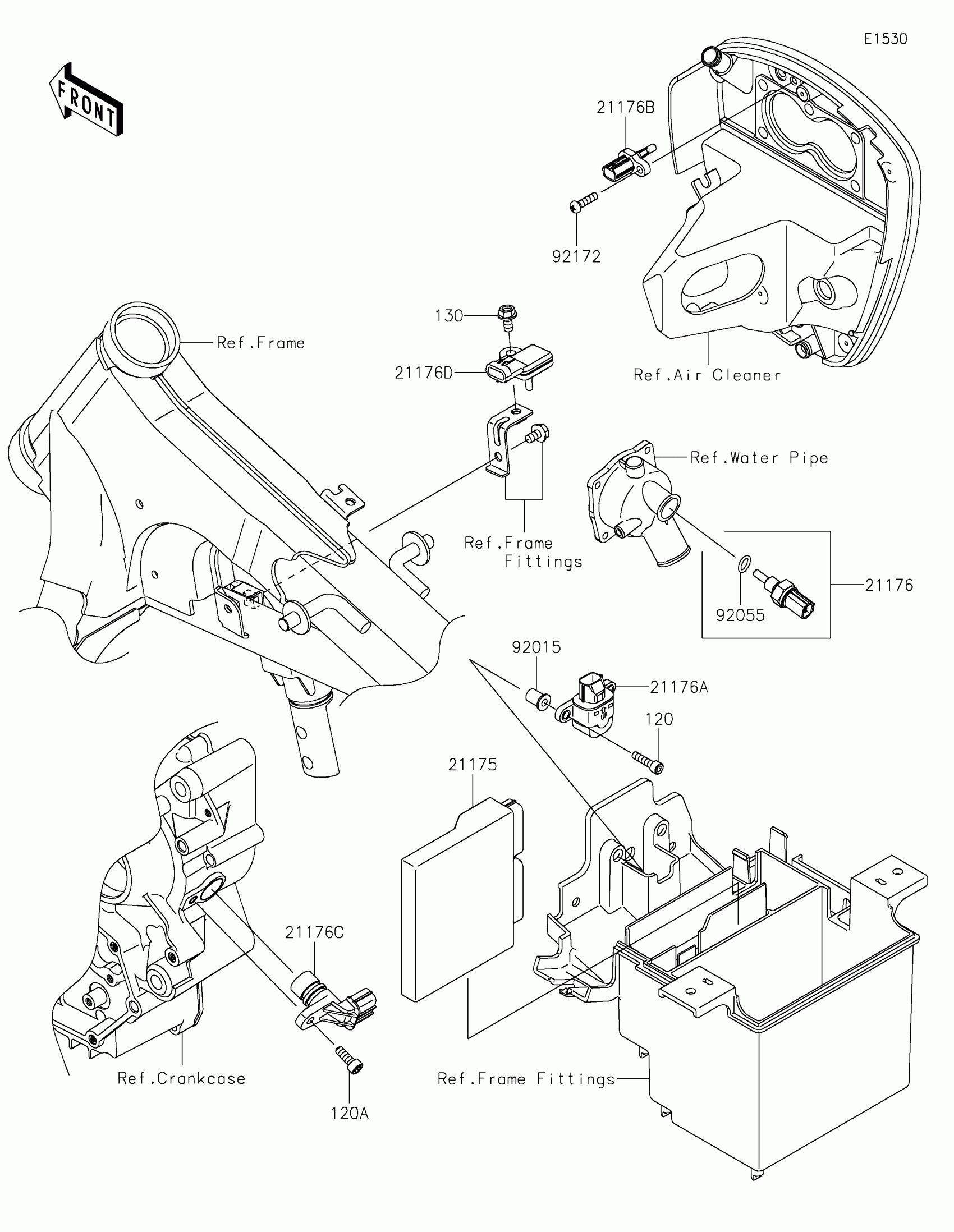

Kawasaki Vulcan® 900 Classic Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X20

120CA0520

$3.76

120A

BOLT-SOCKET,6X16

120CA0616

$1.77

130

BOLT-FLANGED,6X12

130BA0612

$1.25

21175A

CONTROL UNIT-ELECTRONIC

21175-0146

$955.13

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR

21176-0025

$88.65

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,SPEED

21176-0054

$75.97

21176D

SENSOR,PRESSURE

21176-0058

$126.04

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92015

NUT,WELL,5MM

92015-1757

$5.58

92055

RING-O,9.5X1.9

92055-0016

$6.77
