2010 Kawasaki Vulcan® 900 Classic Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2010 Kawasaki Vulcan® 900 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

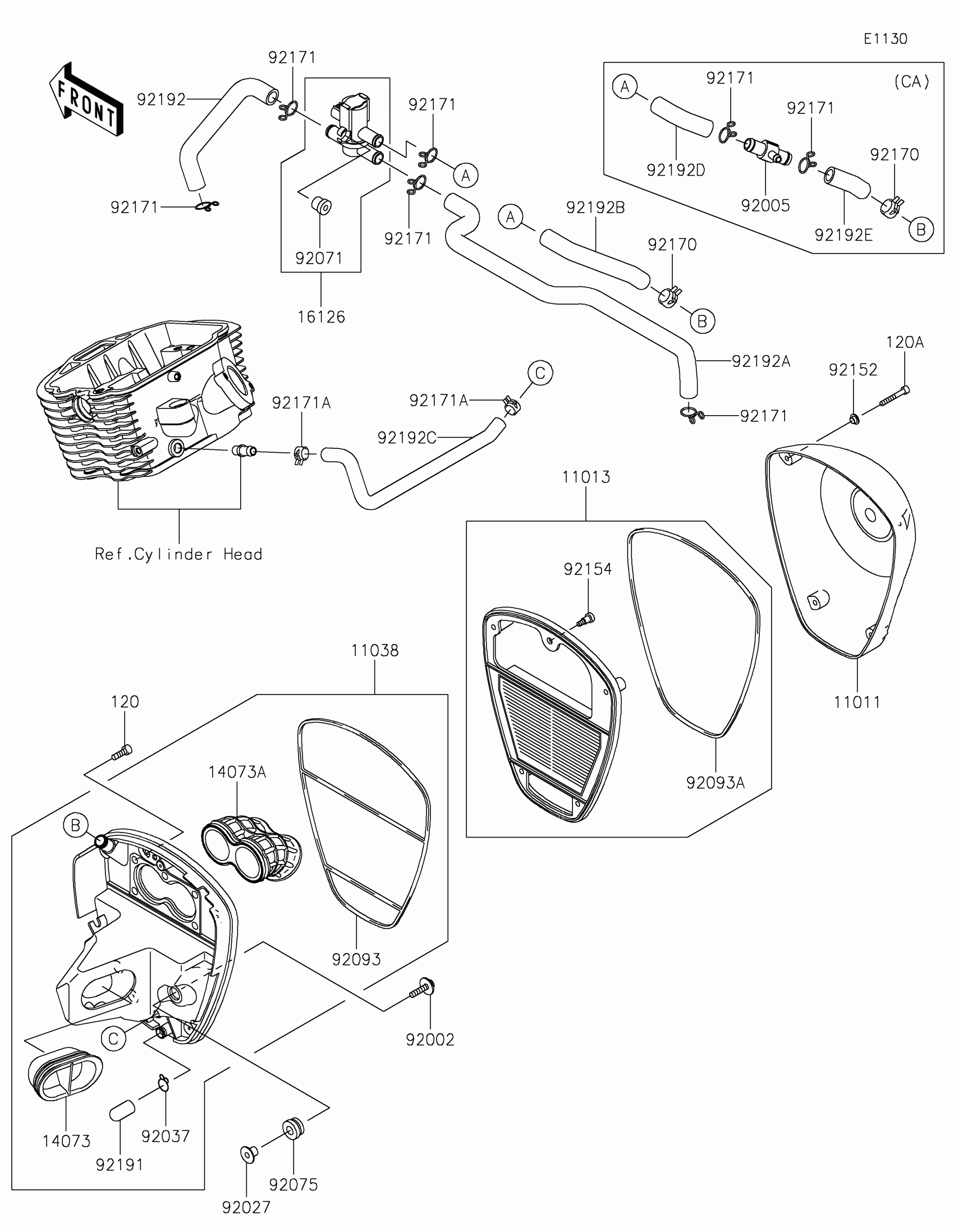

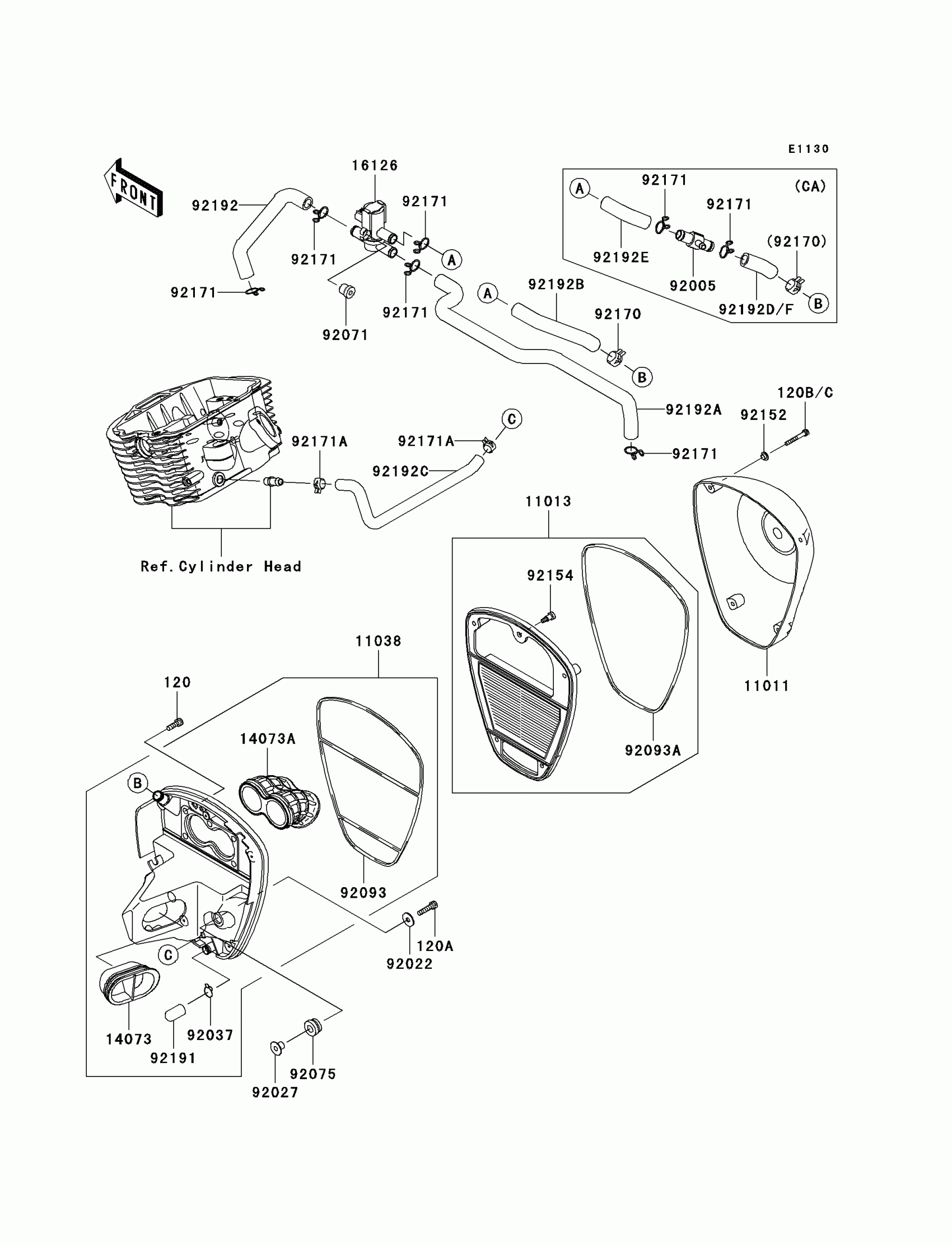

2010 Kawasaki Vulcan® 900 Classic Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X18

120CA0618

1
Out of stock

120A

BOLT-SOCKET,6X25

120CA0625

1
Out of stock

120B

BOLT-SOCKET,5X35

120CC0535

1
Out of stock

11011

CASE-AIR FILTER

11011-0080

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0015

1
Out of stock

11038

CASE-ASSY-AIR FILTER

11038-0015

1
Out of stock

14073

DUCT,INTAKE

14073-0103

1
Out of stock

14073A

DUCT,THROTTLE BODY

14073-0104

1
Out of stock

16126

VALVE,AIR SWITCHING

16126-1437

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,L=12

92027-1062

1
Out of stock

92037

CLAMP,14.5MM

92037-1900

1
Out of stock

92071

GROMMET

92071-0026

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92093

SEAL

92093-0054

1
Out of stock

92093A

SEAL

92093-0057

1
Out of stock

92152

COLLAR

92152-0451

1
Out of stock

92154

BOLT,SOCKET,5X16.5

92154-0120

1
Out of stock

92170

CLAMP

92170-1989

1
Out of stock

92171A

CLAMP

92171-1441

1
Out of stock

92191

TUBE

92191-1704

1
Out of stock

92192

TUBE,ASV-FR HEAD

92192-0266

1
Out of stock

92192A

TUBE,ASV-RR HEAD

92192-0267

1
Out of stock

92192C

TUBE,BLOWBY

92192-0269

1
Out of stock

92005

FITTING

92005-0054

1
Out of stock

92171

CLAMP

92171-0790

1
Out of stock

92171

CLAMP

92171-0790

1
Out of stock

92192B

TUBE,A/C-ASV

92192-0268

1
Out of stock

92192E

TUBE,ASV-FITTING

92192-0345

1
Out of stock

92192F

TUBE,A/C-FITTING

92192-0510

1
Out of stock
