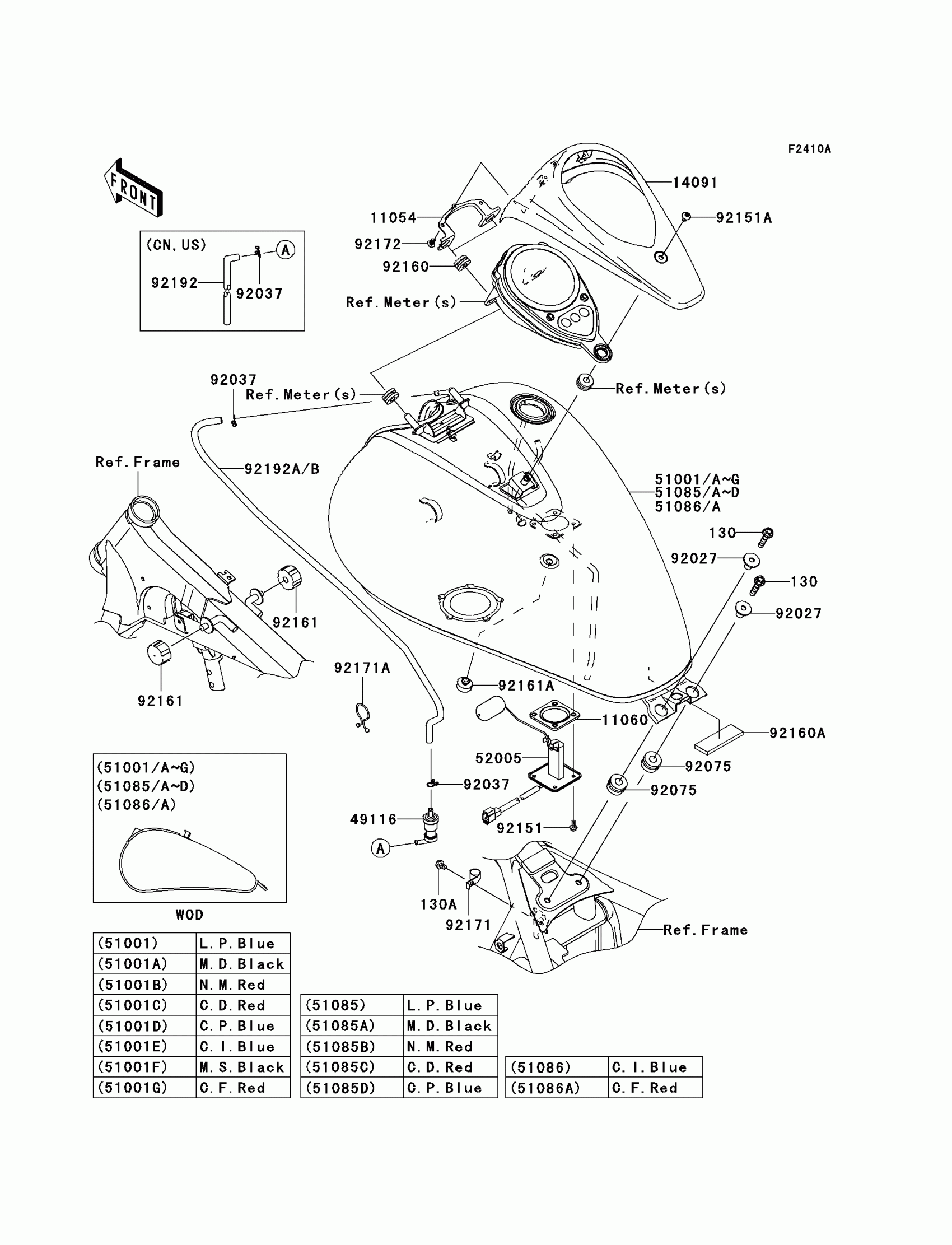

Kawasaki Vulcan® 900 Classic Fuel Tank(4/4)(B8F-BAF) Diagram

Description

Price

11054

BRACKET,METER,FR

11054-0034

$12.95

11060

GASKET,FUEL GAUGE

11060-1952

$19.64

14091

COVER,METER

14091-0516

$125.75

49116

VALVE-ASSY,CHECK

49116-0014

$47.25

52005

GAUGE,FUEL

52005-0083

Unavailable

92027

COLLAR,L=19.3

92027-1780

$5.21

130

BOLT-FLANGED,8X30

130BA0830

$1.68

130A

BOLT-FLANGED,6X10

130BB0610

$2.05

92075

DAMPER

92075-1736

$5.21

92151

BOLT,5X12

92151-1599

$1.28

92151A

BOLT,SOCKET,6X12

92151-1940

$2.97

92160

DAMPER

92160-1162

$3.97

92160A

DAMPER

92160-1323

$3.26

92161

DAMPER,FUEL TANK

92161-0293

$6.23

92161A

DAMPER

92161-1065

$2.97

92171

CLAMP

92171-0595

$4.95

92171A

CLAMP

92171-1185

$2.03

92172

SCREW,TAPPING,5X14

92172-0006

$2.29

51001E

TANK-COMP-FUEL,C.I.BLUE

51001-0336-25U

$1,277.82

51001F

TANK-COMP-FUEL,M.S.BLACK

51001-0336-660

$1,277.82

51001G

TANK-COMP-FUEL,C.F.RED

51001-0336-816

$1,362.66

51086

TANK-COMP-FUEL,C.I.BLUE

51086-5383-25U

$985.17

51086A

TANK-COMP-FUEL,C.F.RED

51086-5383-816

$985.17

92037

CLAMP,TUBE

92037-147

$5.84

92037

CLAMP,TUBE

92037-147

$5.84

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0215

$10.31

92192A

TUBE,FUEL TANK-VALVE

92192-0303

$18.41

92192B

TUBE,FUEL TANK-VALVE

92192-0526

$81.05
