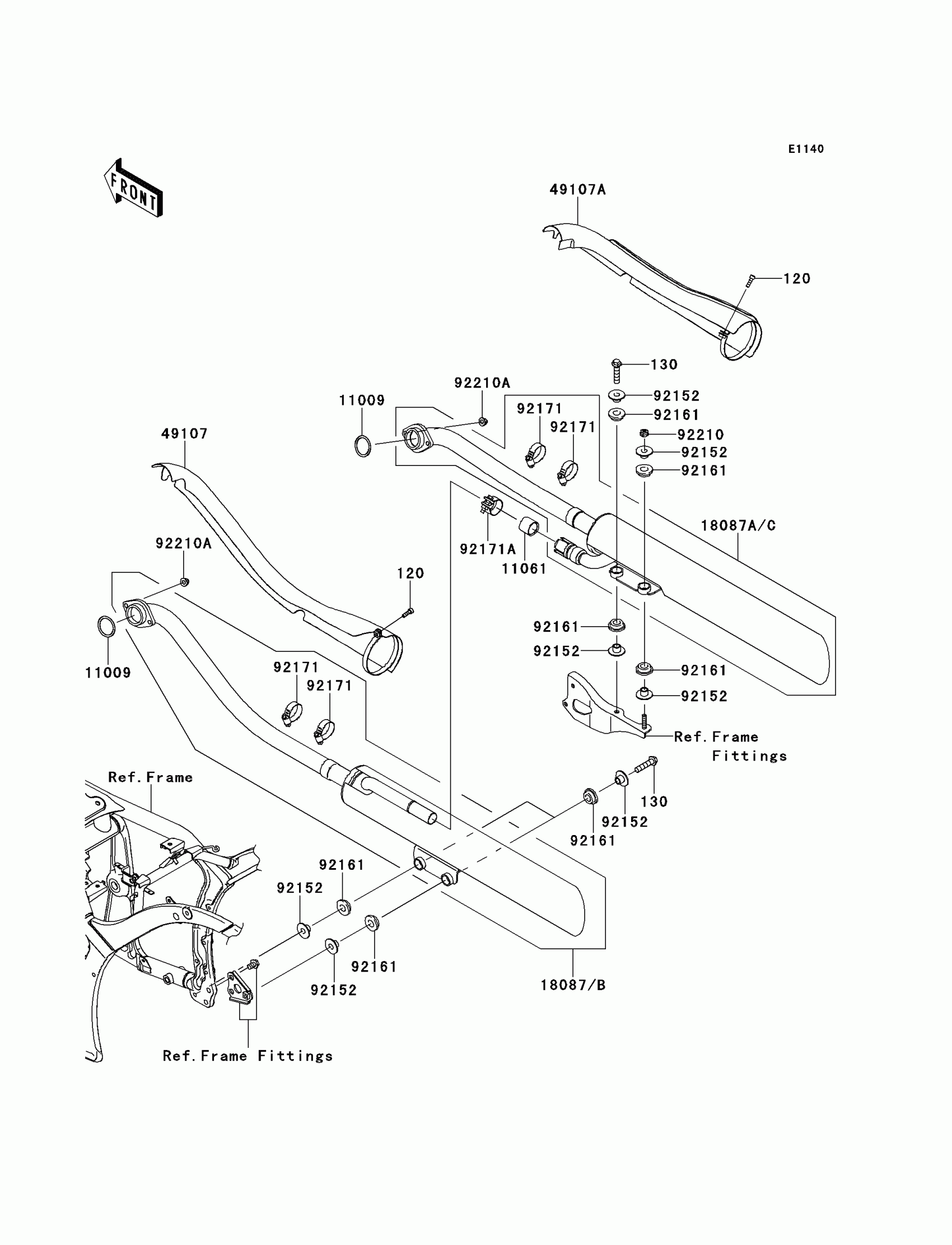

Kawasaki VULCAN 900 CLASSIC (Canadian) Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CC0620

$1.53

130

BOLT-FLANGED,8X35

130BB0835

$3.39

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$4.28

11061

GASKET,MUFFLER JOINT

11061-0207

$22.33

18087B

MUFFLER,FR

18087-0281

$960.40

18087C

MUFFLER,RR

18087-0282

$960.40

49107

COVER-EXHAUST PIPE,FR

49107-0087

$328.54

49107A

COVER-EXHAUST PIPE,RR

49107-0106

$328.54

92152

COLLAR,8.8X12X10.6

92152-0082

$8.81

92161

DAMPER

92161-0135

$2.38

92171

CLAMP

92171-0059

$6.08

92171A

CLAMP

92171-0593

$15.93

92210

NUT,FLANGED,8MM

92210-0004

$4.07

92210A

NUT,CAP,8MM

92210-1132

$3.19
