2013 Kawasaki Vulcan 900 Classic (Canadian) Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2013 Kawasaki Vulcan 900 Classic (Canadian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

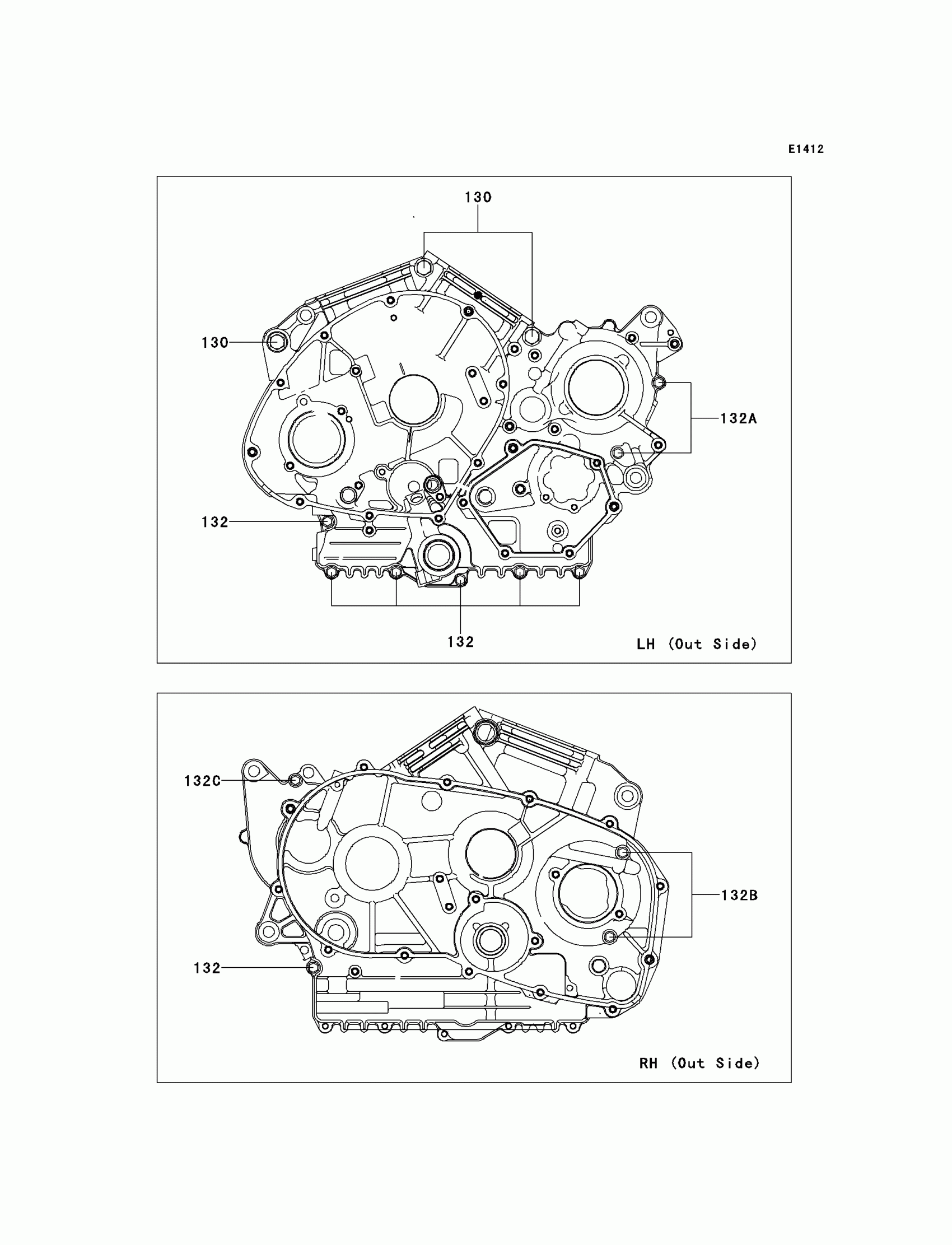

2013 Kawasaki Vulcan 900 Classic (Canadian) Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X90

130BB1090

1

$3.19

In stock

132

1

$2.17

In stock

132A

1

$3.69

In stock

132B

1

$2.92

In stock

132C

1

$2.63

In stock
← Crankcase Crankshaft →
