2013 Kawasaki Vulcan 900 Classic (Canadian) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2013 Kawasaki Vulcan 900 Classic (Canadian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

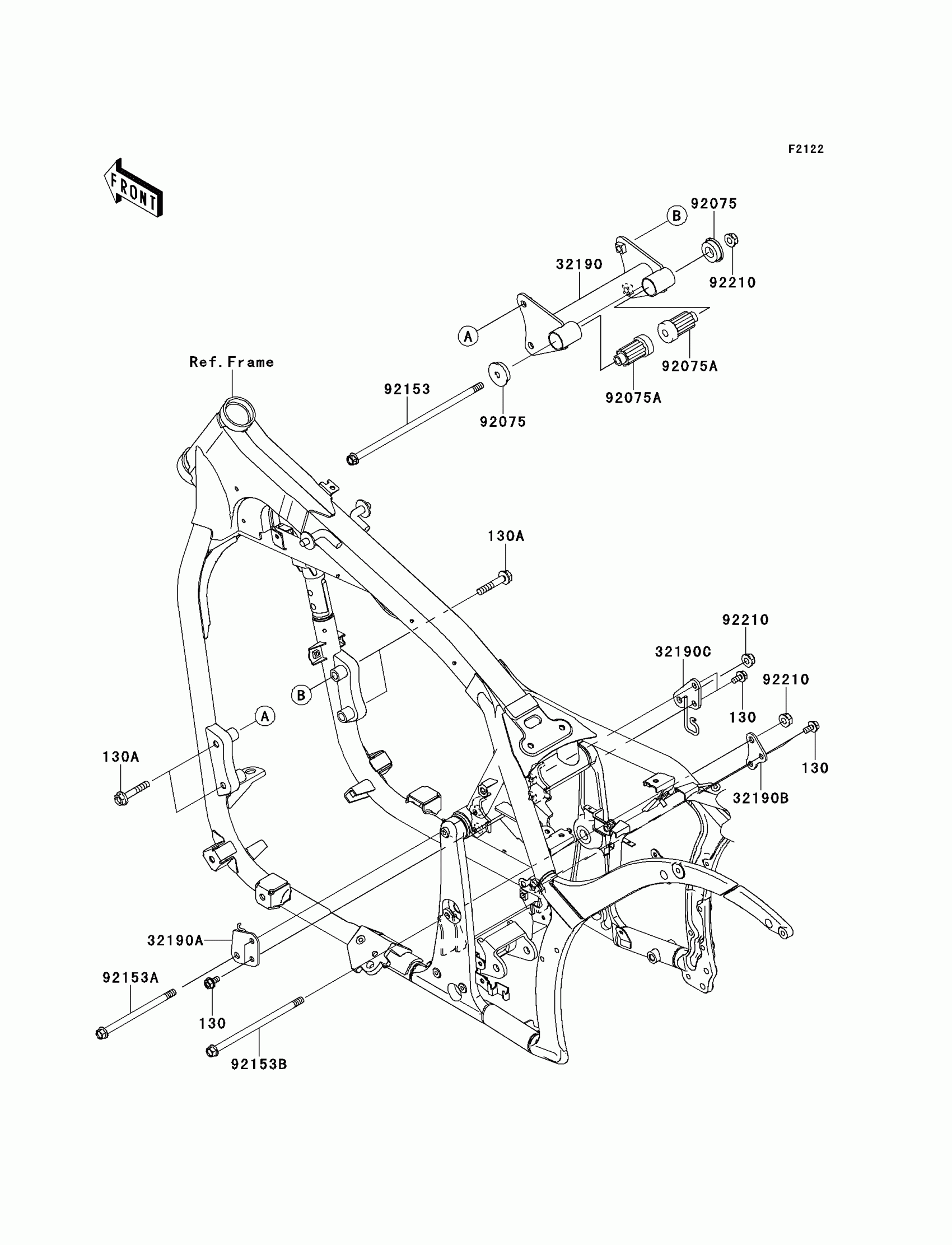

2013 Kawasaki Vulcan 900 Classic (Canadian) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130BB0816

1

$1.47

In stock

130A

BOLT-FLANGED,10X55

130BB1055

1

$5.28

In stock

32190

BRACKET-ENGINE,FR,F.S.BLACK

32190-0229-18R

1
Out of stock

32190A

BRACKET-ENGINE,RR,LH,UPP

32190-0274

1
Out of stock

32190B

BRACKET-ENGINE,RR,RH,LWR

32190-0275

1
Out of stock

32190C

BRACKET-ENGINE,RR,RH,UPP

32190-0276

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

1
Out of stock

92153

BOLT,FLANGED,10X285

92153-1909

1
Out of stock

92153A

BOLT,FLANGED,10X158

92153-1910

1
Out of stock

92153B

BOLT,FLANGED,10X198

92153-1911

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
