1995 Kawasaki Vulcan 88 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

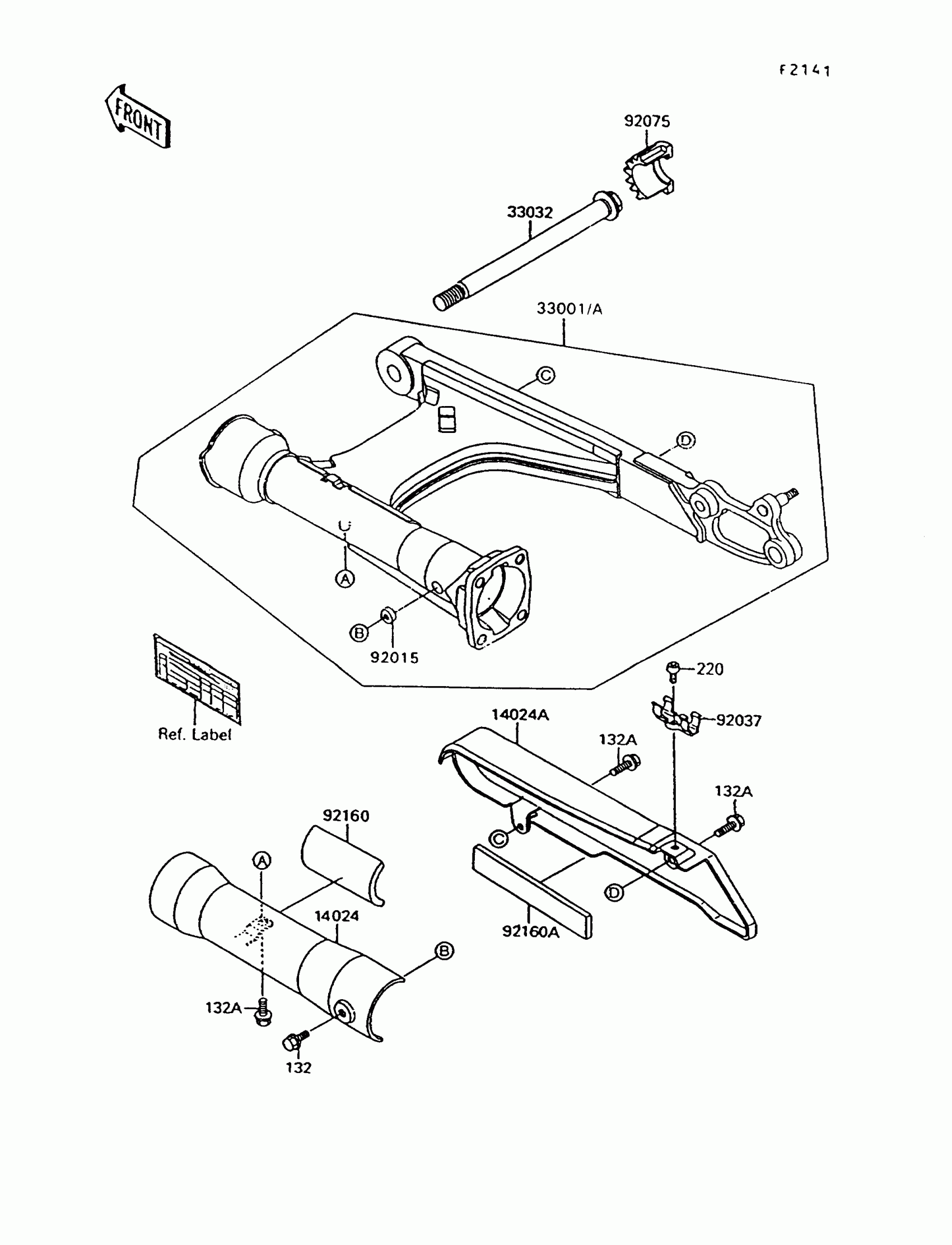

1995 Kawasaki Vulcan 88 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.72

In stock

132A

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

220

SCREW-PAN-CROS,5X8

220E0508

1
Out of stock

14024

COVER,SWING ARM,LH

14024-1410

1
Out of stock

14024A

COVER,SWING ARM,RH

14024-1411

1
Out of stock

33001A

ARM-COMP-SWING,SILVER NO.25

33001-1453-CE

1
Out of stock

33032

SHAFT-SWING ARM

33032-1131

1
Out of stock

92015

NUT,POP,6MM,L=14

92015-1629

1
Out of stock

92037

CLAMP

92037-1879

1
Out of stock

92075

DAMPER,SWING ARM COVER

92075-1917

1
Out of stock

92160

DAMPER

92160-1004

1
Out of stock

92160A

DAMPER,SWING ARM COVER,RH

92160-1005

1
Out of stock
