1991 Kawasaki Vulcan 88 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

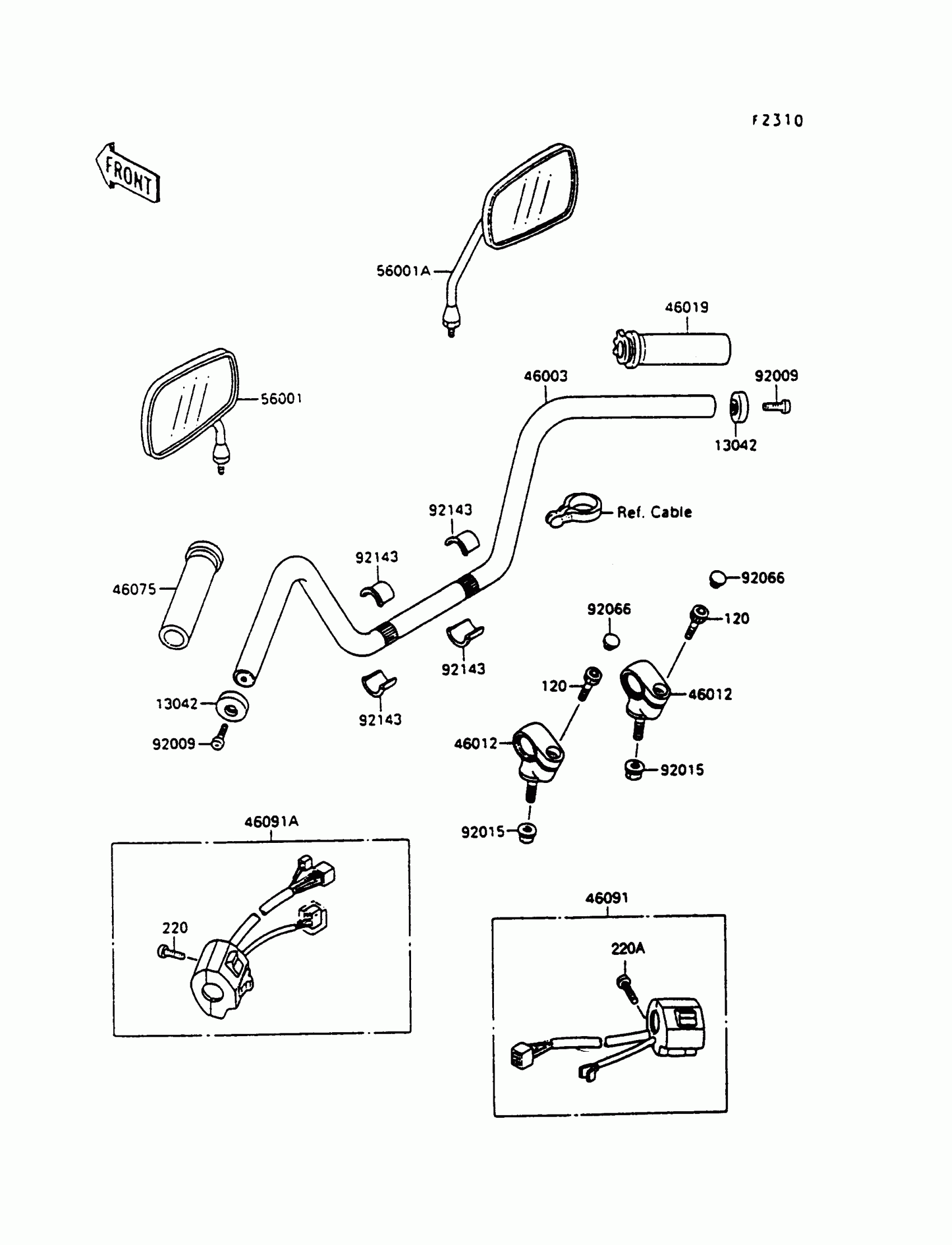

1991 Kawasaki Vulcan 88 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-1068

1
Out of stock

46003

HANDLE

46003-1243

1

$153.87

In stock

46012

HOLDER-HANDLE

46012-1171

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1065

1

$37.74

In stock

46075

GRIP,LH

46075-1074

1

$22.67

In stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1448

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1449

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1303

1

$89.30

In stock

56001A

MIRROR-ASSY,RH

56001-1304

1

$83.15

In stock

92009

SCREW,8X20

92009-1484

1
Out of stock

92015

1

$7.86

In stock

92066

PLUG

92066-1285

1

$6.18

In stock

92143

1

$9.44

In stock

120

BOLT-SOCKET,10X25

120P1025

1
Out of stock

220

SCREW-PAN-CROS,5X14

220E0514

1
Out of stock
