1991 Kawasaki Vulcan 88 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

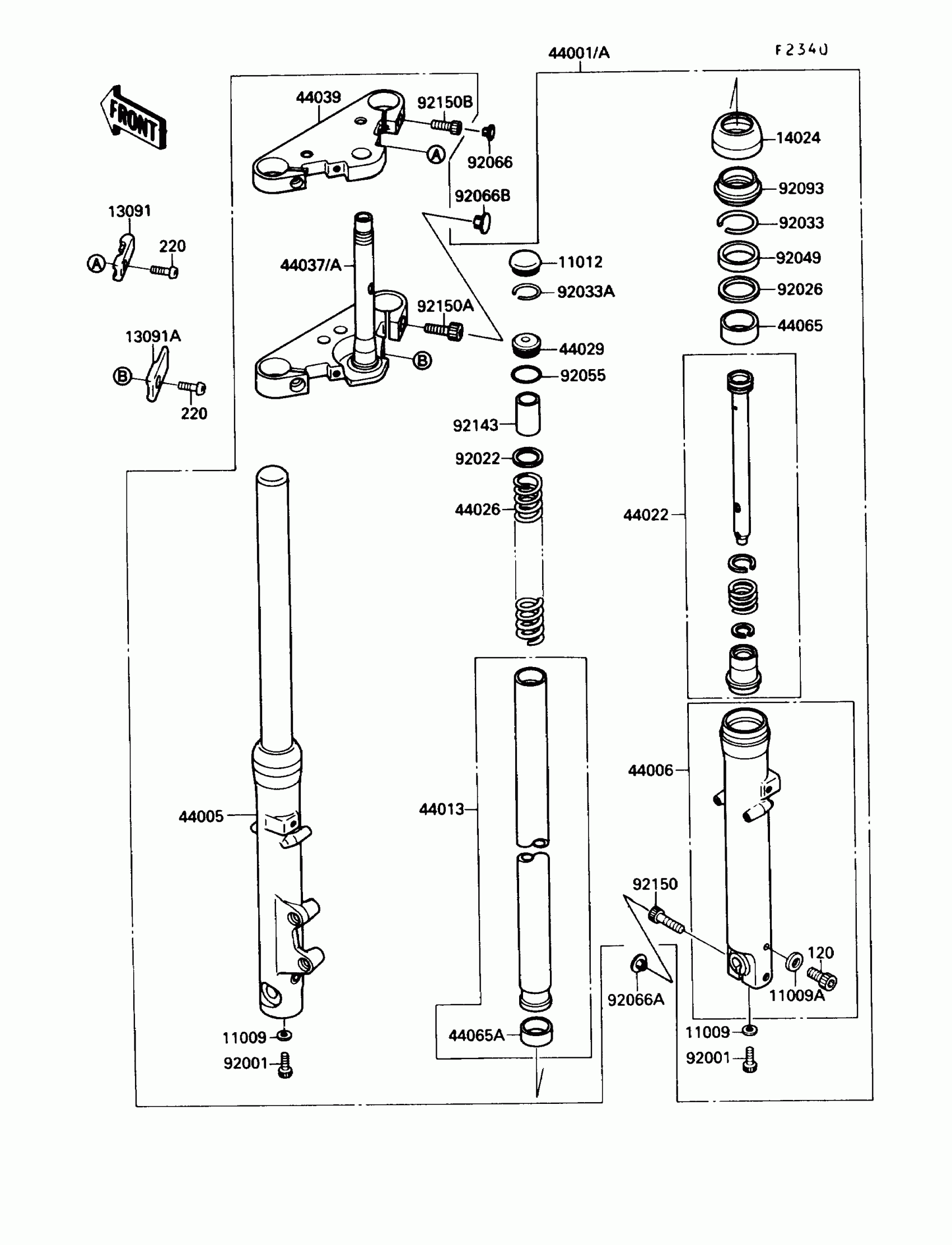

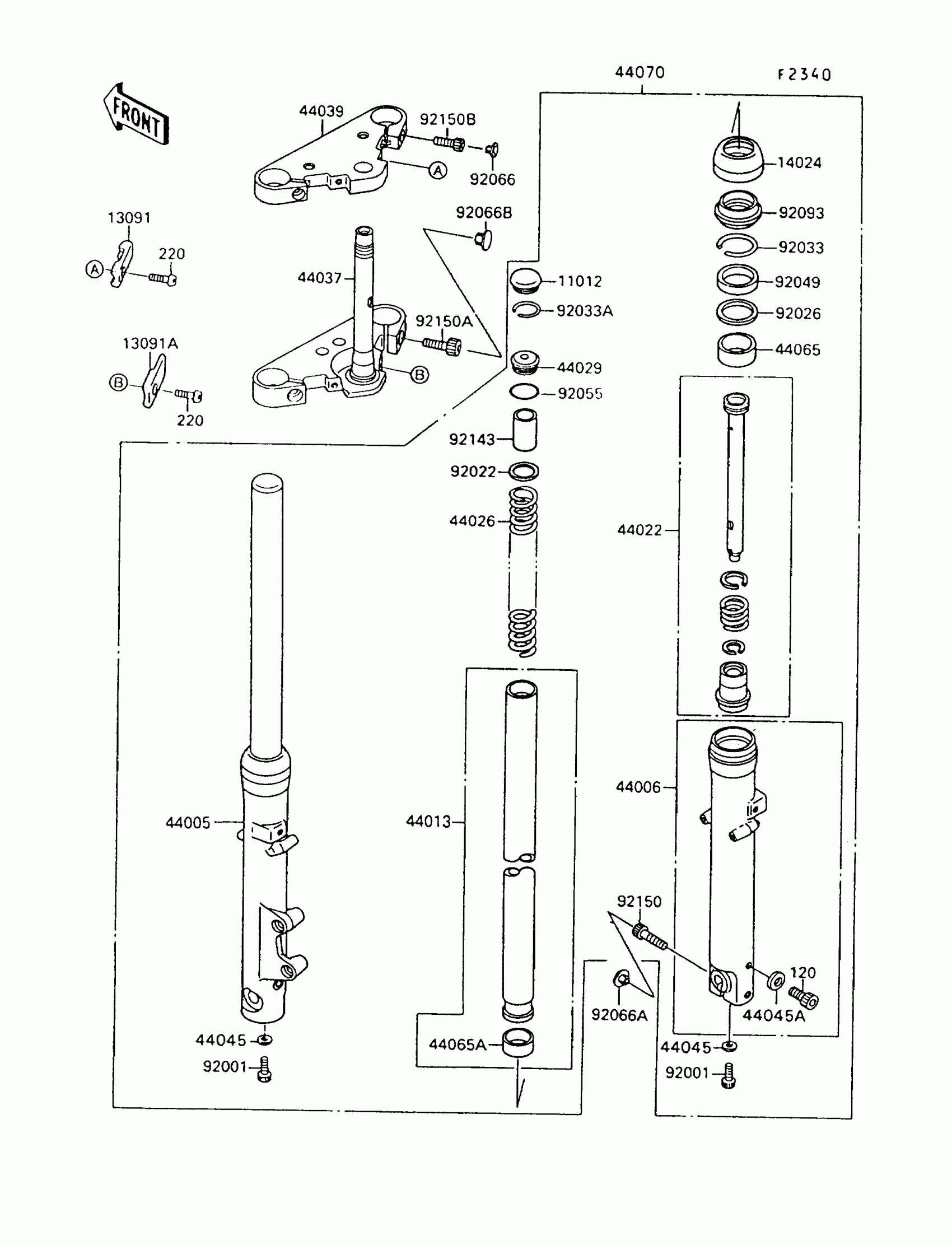

1991 Kawasaki Vulcan 88 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.88

In stock

11009A

GASKET,DRAIN PLUG

44045-052

1

$7.42

In stock

11012

CAP,FORK TOP

11012-1618

1

$23.07

In stock

13091

HOLDER,UPP

13091-1482

1

$25.83

In stock

13091A

HOLDER,LWR

13091-1483

1
Out of stock

14024

COVER,FORK OUTER TUBE

14024-1600

1
Out of stock

44001A

FORK-FRONT

44001-1695

1

$3,201.31

In stock

44005

PIPE-LEFT FORK OUTER

44005-1264

1
Out of stock

44006

1

$495.54

In stock

44013

PIPE-FORK INNER

44013-1268

1
Out of stock

44022

CYLINDER-FORK

44022-1215

1
Out of stock

44026

SPRING-FRONT FORK

44026-1372

1
Out of stock

44029

SEAT-FORK SPRING

44029-1125

1

$44.89

In stock

44037A

HOLDER-FORK UNDER

44037-1235

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1151

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1079

1

$22.97

In stock

44065A

1

$27.24

In stock

92001

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92022

WASHER

92022-1909

1
Out of stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92033A

1

$5.40

In stock

92049

SEAL-OIL,FORK OUTER

92049-1272

1
Out of stock

92055

RING-O,SPRING SEAT

92055-1363

1

$5.84

In stock

92066

PLUG

92066-1277

1

$5.90

In stock

92066A

PLUG

92066-1285

1

$6.18

In stock

92066B

PLUG

92066-1302

1

$7.71

In stock

92093

1

$23.35

In stock

92143

COLLAR,FORK SPRING

92143-1053

1

$9.49

In stock

92150

BOLT,SOCKET,10X40

92150-1029

1
Out of stock

92150A

BOLT,SOCKET,12MM

92150-1030

1

$9.59

In stock

92150B

BOLT,SOCKET,8X30

92150-1031

1
Out of stock

120

BOLT-SOCKET

120P0608

1
Out of stock

220

SCREW-PAN-CROS,6X20

220E0620

1
Out of stock
