1995 Kawasaki Vulcan 88 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

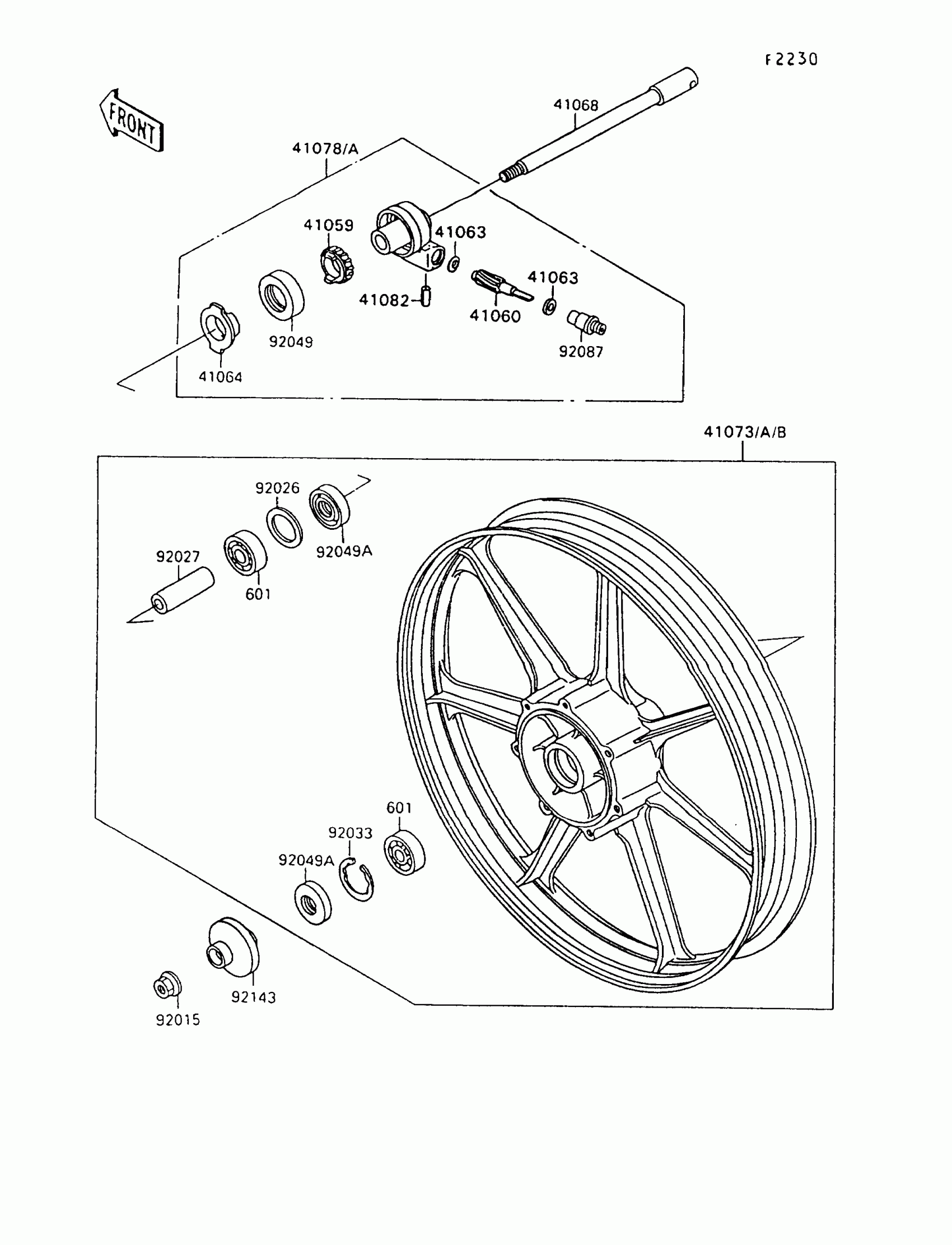

1995 Kawasaki Vulcan 88 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$38.63

In stock

41059

1

$43.35

In stock

41060

GEAR-METER SCREW,9T

41060-1006

1

$39.54

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

RECEIVER-SPEEDOMETER

41064-1053

1
Out of stock

41068

AXLE,FR

41068-1189

1

$74.19

In stock

41073B

WHEEL-ASSY,FR,BLACK

41073-1587-18

1
Out of stock

41078A

CASE-ASSY-METER GEAR

41078-1099

1
Out of stock

41082

PIN,SPRING

41082-001

1

$3.53

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92026

SPACER,32X41.5X2.6

92026-1354

1
Out of stock

92027

COLLAR,L=70

92027-1866

1

$20.88

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1056

1

$20.39

In stock

92143

COLLAR,FRONT AXLE,L=30

92143-1082

1
Out of stock
