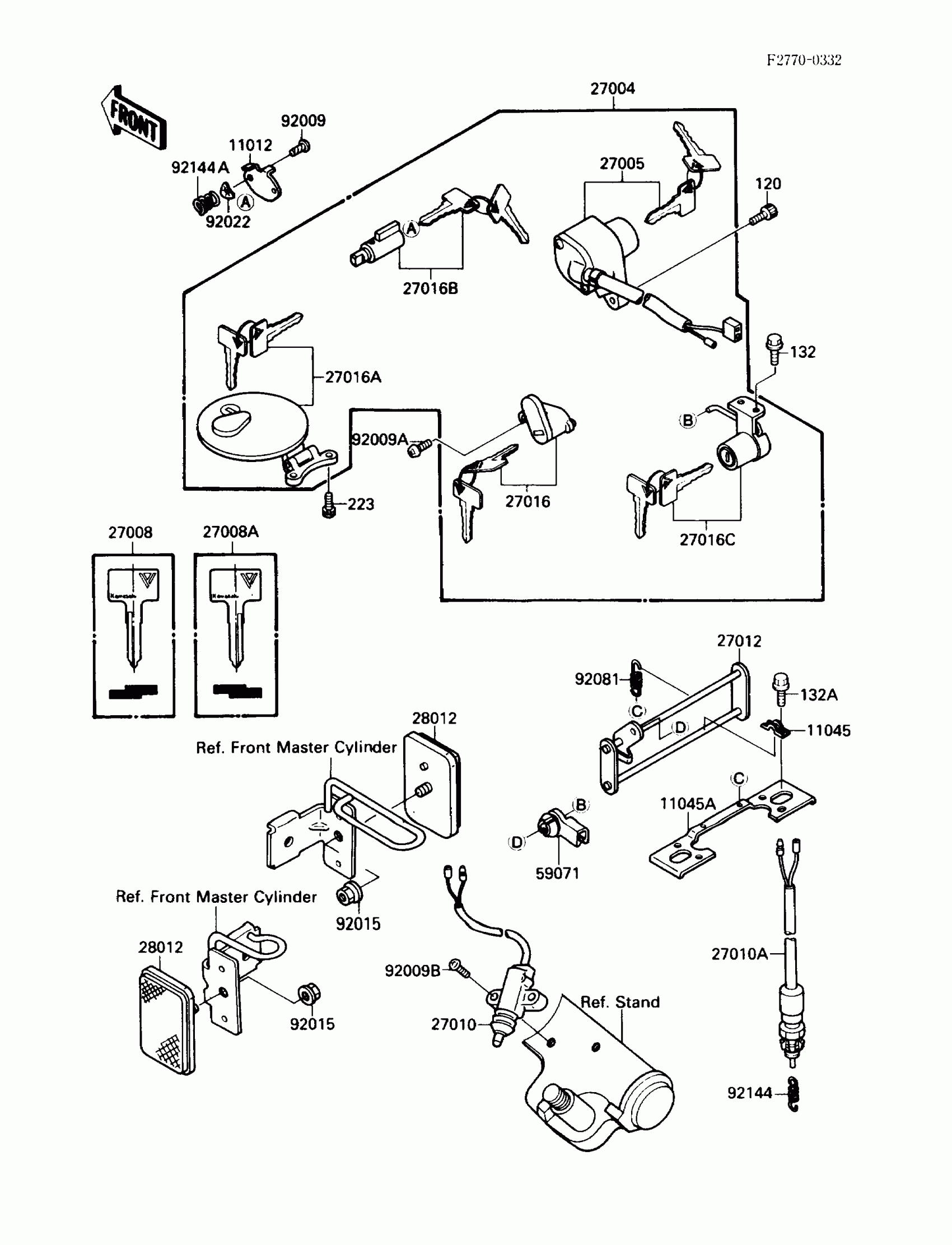

Kawasaki Vulcan 88 Ignition Switch Diagram

#

Description
Price

11012

CAP,STEERING LOCK

11012-1586

Unavailable

11045

BRACKET,SEAT HOOK

11045-1700

$5.92

11045A

BRACKET,SEAT HOOK

11045-1701

Unavailable

27004

SWITCH-ASSY

27004-5310

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-1128

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1138

$19.58

27008A

KEY-LOCK,BLANK,#B

27008-1139

$19.34

27010

SWITCH,SIDE STAND

27010-1223

$73.52

27010A

SWITCH,REAR BRAKE

27010-1238

$35.81

27012

HOOK,SEAT

27012-1371

Unavailable

27016

LOCK-ASSY,HELMET

27016-5129

$69.10

27016A

LOCK-ASSY,FUEL TANK COVER

27016-5130

Unavailable

27016B

LOCK-ASSY,STEERING

27016-5131

$87.55

27016C

LOCK-ASSY,SEAT

27016-5132

Unavailable

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

59071

JOINT

59071-1103

$6.90

92009

SCREW,3.51MM

92008-007

$3.27

92009A

SCREW,5X12

92009-1296

$3.53

92009B

SCREW,5X20

92009-1459

$3.92

92015

NUT,FLANGED,5MM

92015-1656

$2.59

92022

WASHER,WAVE

92097-003

$3.57

92081

SPRING,HOOK RETURN

92081-1466

$6.75

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.34

92144A

SPRING,STEERING LOCK

92144-1222

$3.98

120

BOLT-SOCKET

120P0512

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132G0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

223

SCREW-PAN-WS-CROS

223B0410

Unavailable
