1995 Kawasaki Vulcan 88 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

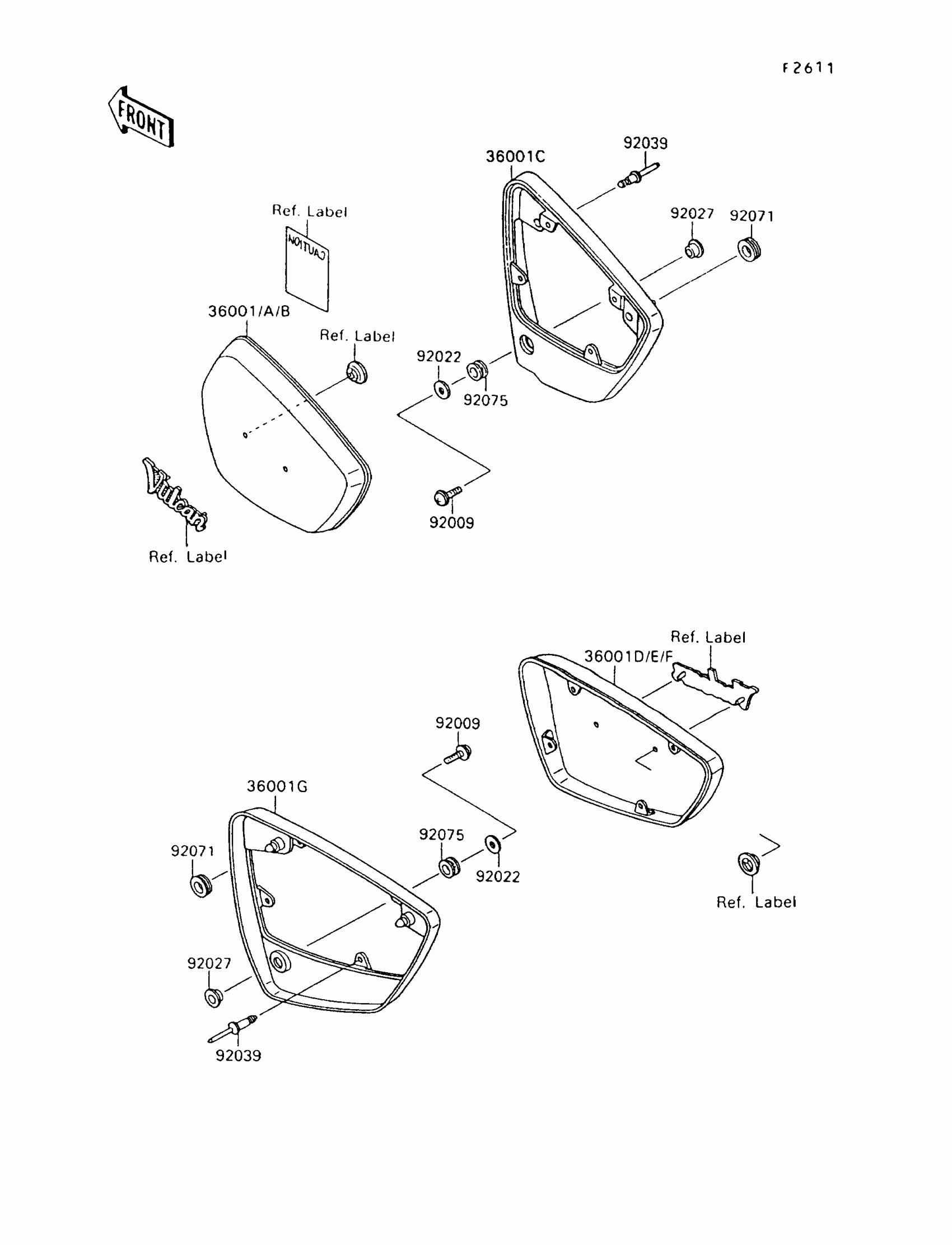

1995 Kawasaki Vulcan 88 Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001A

COVER-SIDE,LH,C.C.RED

36001-1355-L1

1

$200.10

In stock

36001B

COVER-SIDE,LH,P.T.GREEN

36001-1355-SM

1

$200.10

In stock

36001C

COVER-SIDE,BASE,LH,F.BLACK

36001-1356-21

1
Out of stock

36001E

COVER-SIDE,RH,C.C.RED

36001-1357-L1

1

$200.10

In stock

36001F

COVER-SIDE,RH,P.T.GREEN

36001-1357-SM

1

$200.10

In stock

36001G

1

$55.41

In stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92022

1

$4.25

In stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1

$4.87

In stock

92039

RIVET

92039-1232

1

$2.02

In stock

92071

GROMMET

92071-1164

1
Out of stock

92075

DAMPER

92075-1634

1

$3.72

In stock
