1995 Kawasaki Vulcan 88 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

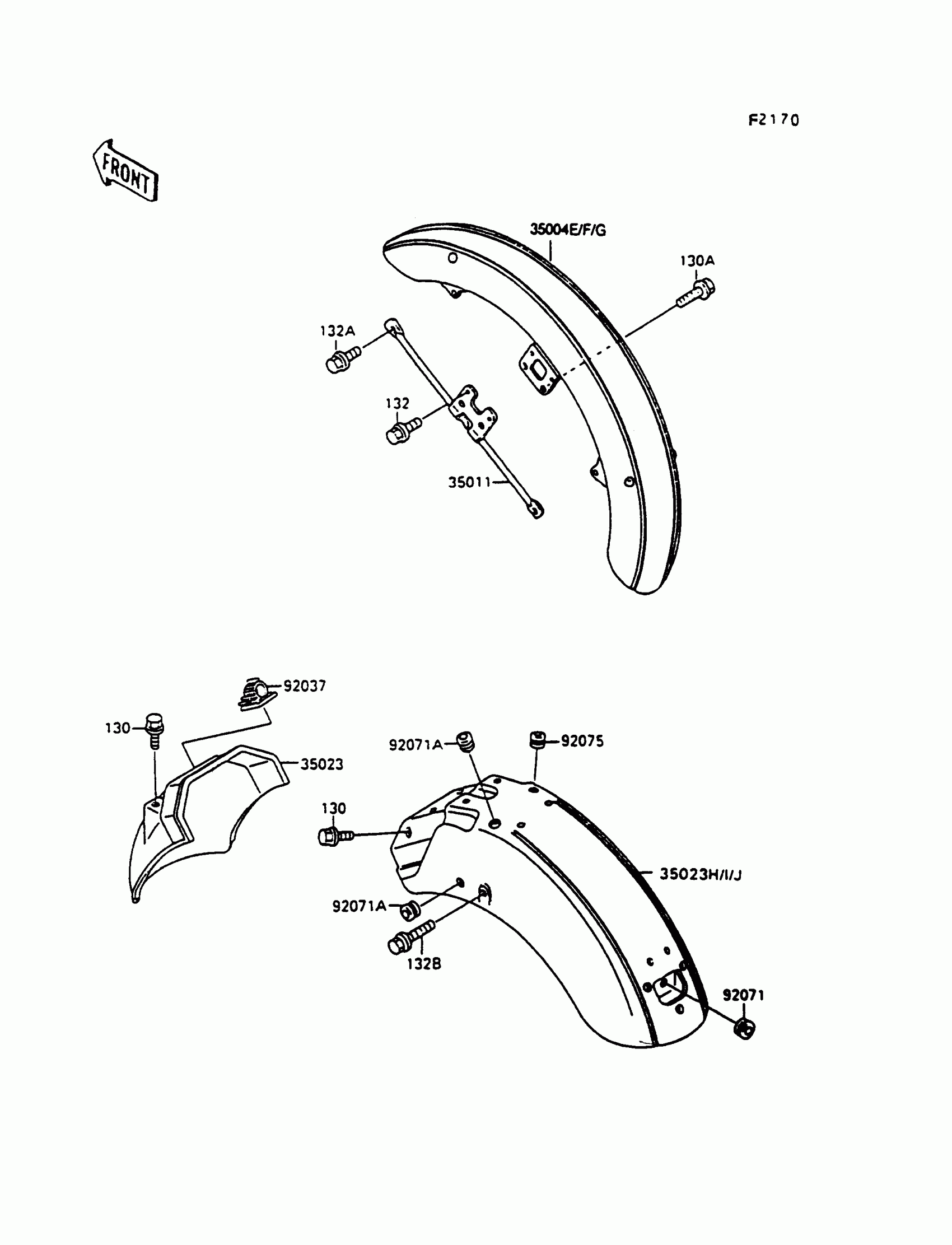

1995 Kawasaki Vulcan 88 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130C0612

1
Out of stock

130A

BOLT-FLANGED

130D0814

1
Out of stock

132

BOLT-FLANGED-SMALL,5X10

132E0510

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X10

132E0610

1
Out of stock

132B

BOLT-FLANGED-SMALL,8X40

132E0840

1
Out of stock

35004F

FENDER-FRONT,GREEN/BLUE

35004-5099-40

1
Out of stock

35004G

FENDER-FRONT,RED/GRAY

35004-5101-JG

1
Out of stock

35011

STAY,FRONT FENDER

35011-1333

1
Out of stock

35023

FENDER-REAR,FR

35023-1189

1
Out of stock

35023I

FENDER-REAR,RR,GREEN/BLUE

35023-5065-40

1
Out of stock

35023J

FENDER-REAR,RR,RED/GRAY

35023-5071-JG

1
Out of stock

92037

CLAMP,HARNESS

92037-1816

1
Out of stock

92071

GROMMET,13MM

92071-099

1
Out of stock

92071A

GROMMET

92071-1148

1
Out of stock

92075

DAMPER

92075-294

1
Out of stock
← Decals Footrests →

More Body & Frame diagrams
