1991 Kawasaki Vulcan 88 Frame Diagram

← All diagrams

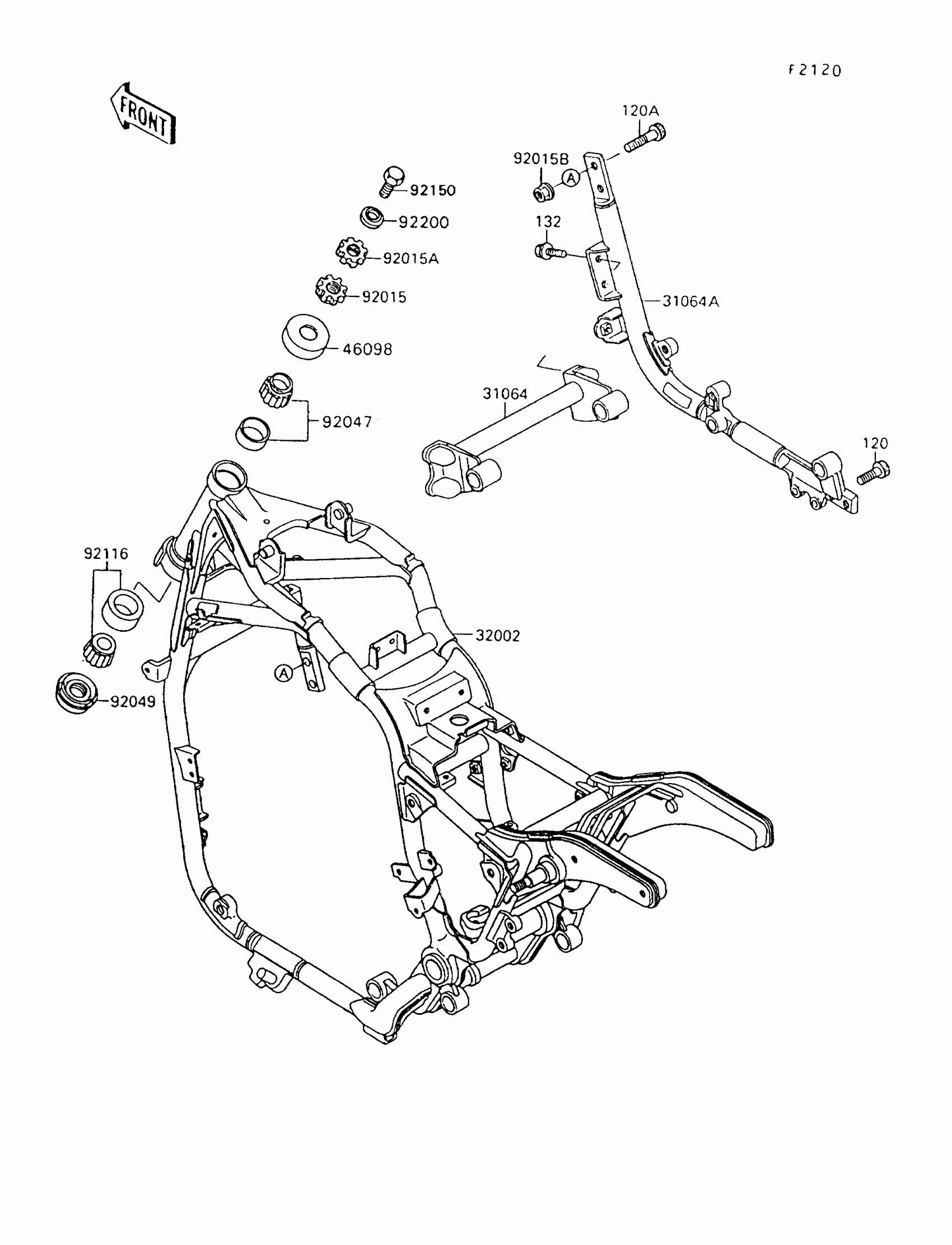

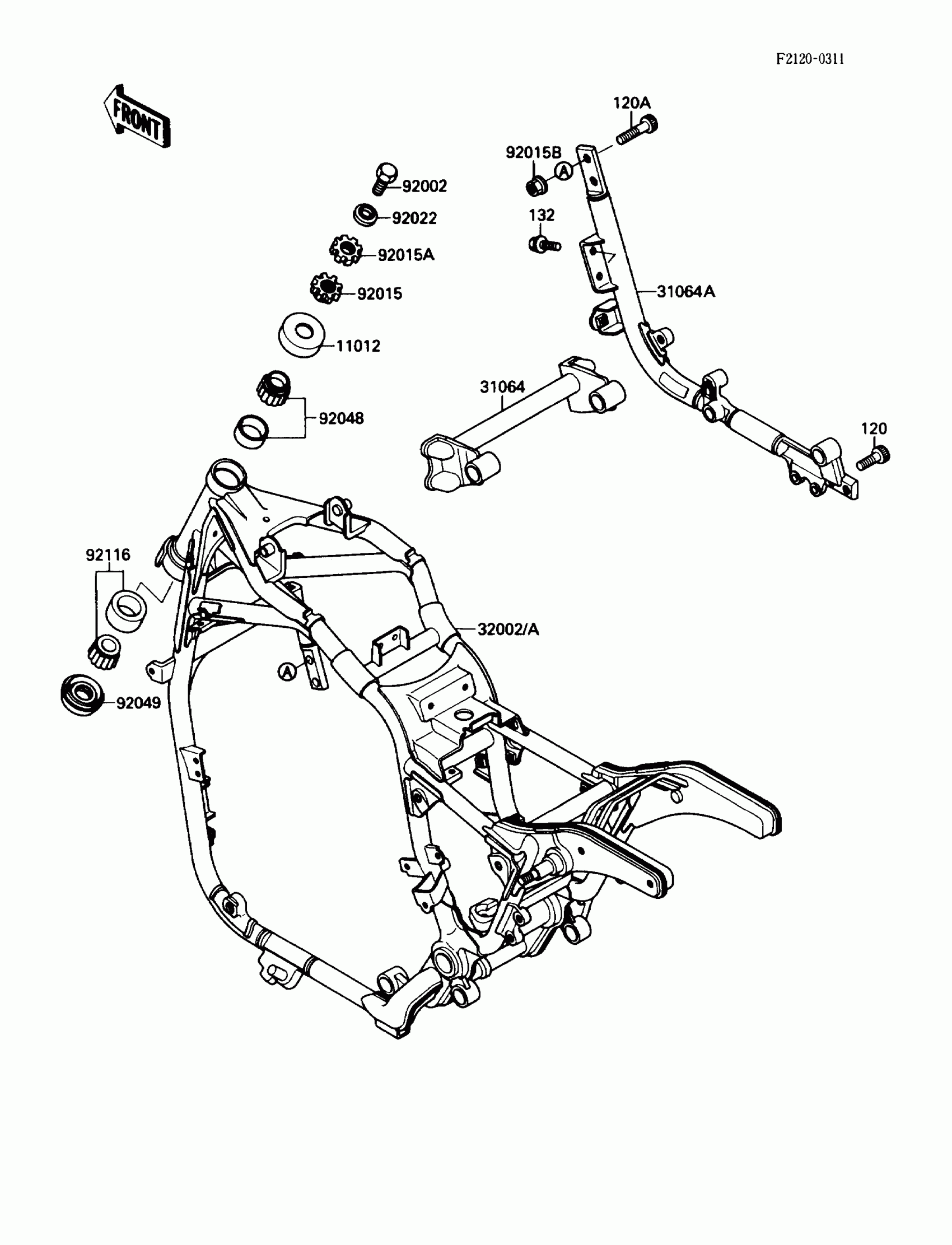

Find the part on the Frame diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Vulcan 88 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-017

1

$5.37

In stock

31064

PIPE-COMP,FRAME,CROSS

31064-1083

1
Out of stock

31064A

PIPE-COMP,FRAME,RH

31064-1084

1
Out of stock

32002A

FRAME-COMP

32002-1987

1
Out of stock

92002

BOLT,14X25

92002-1611

1
Out of stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92015B

NUT,FLANGED,10MM

92015-1669

1
Out of stock

92022

WASHER,14.5X36X4.5

92022-1733

1

$11.03

In stock

92048

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92116

1

$33.21

In stock

120

BOLT-SOCKET,10X20

120S1020

1
Out of stock

120A

BOLT-SOCKET,10X30

120S1030

1
Out of stock

132

BOLT-FLANGED-SMALL,8X16

132J0816

1
Out of stock
