1991 Kawasaki Vulcan 88 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1991 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

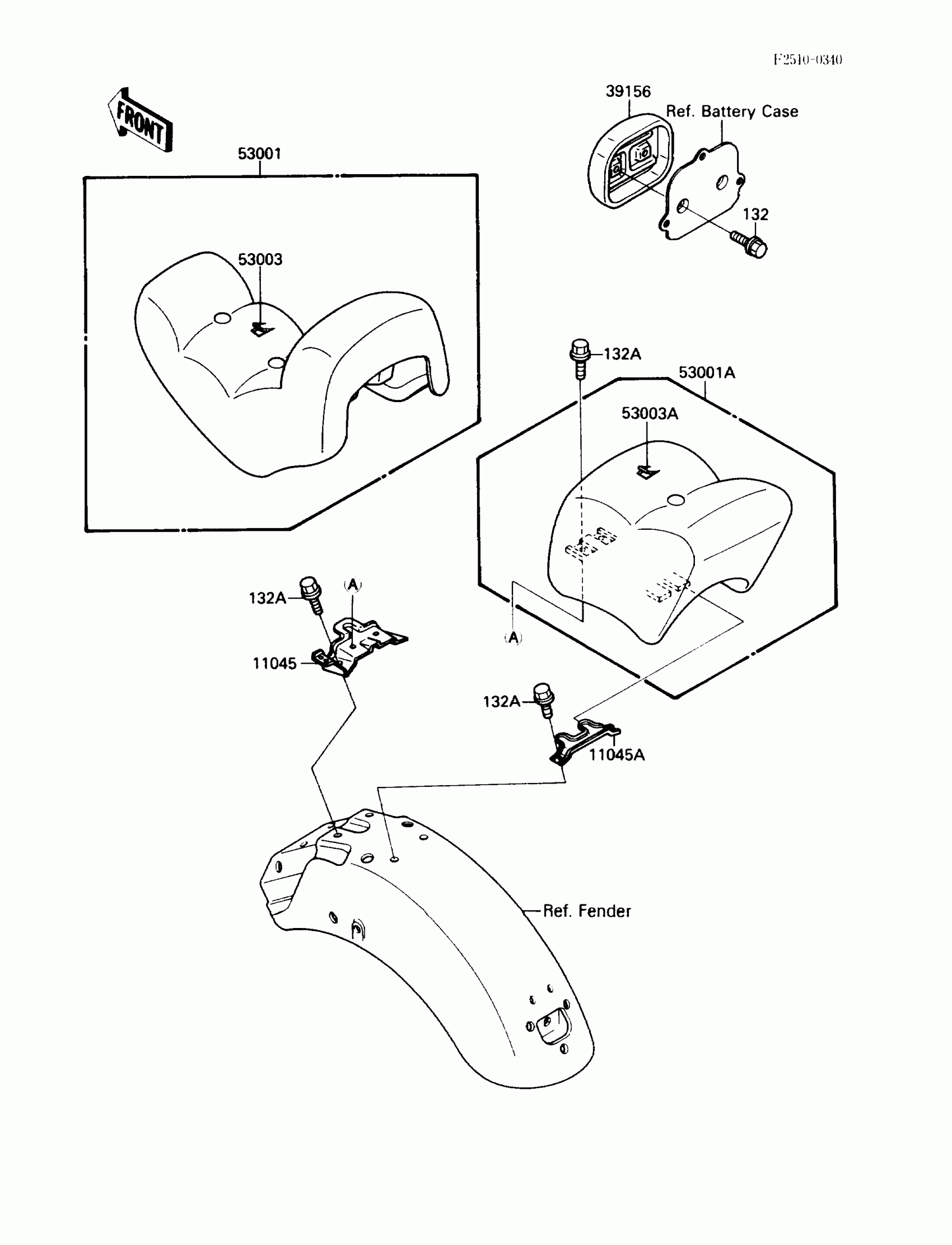

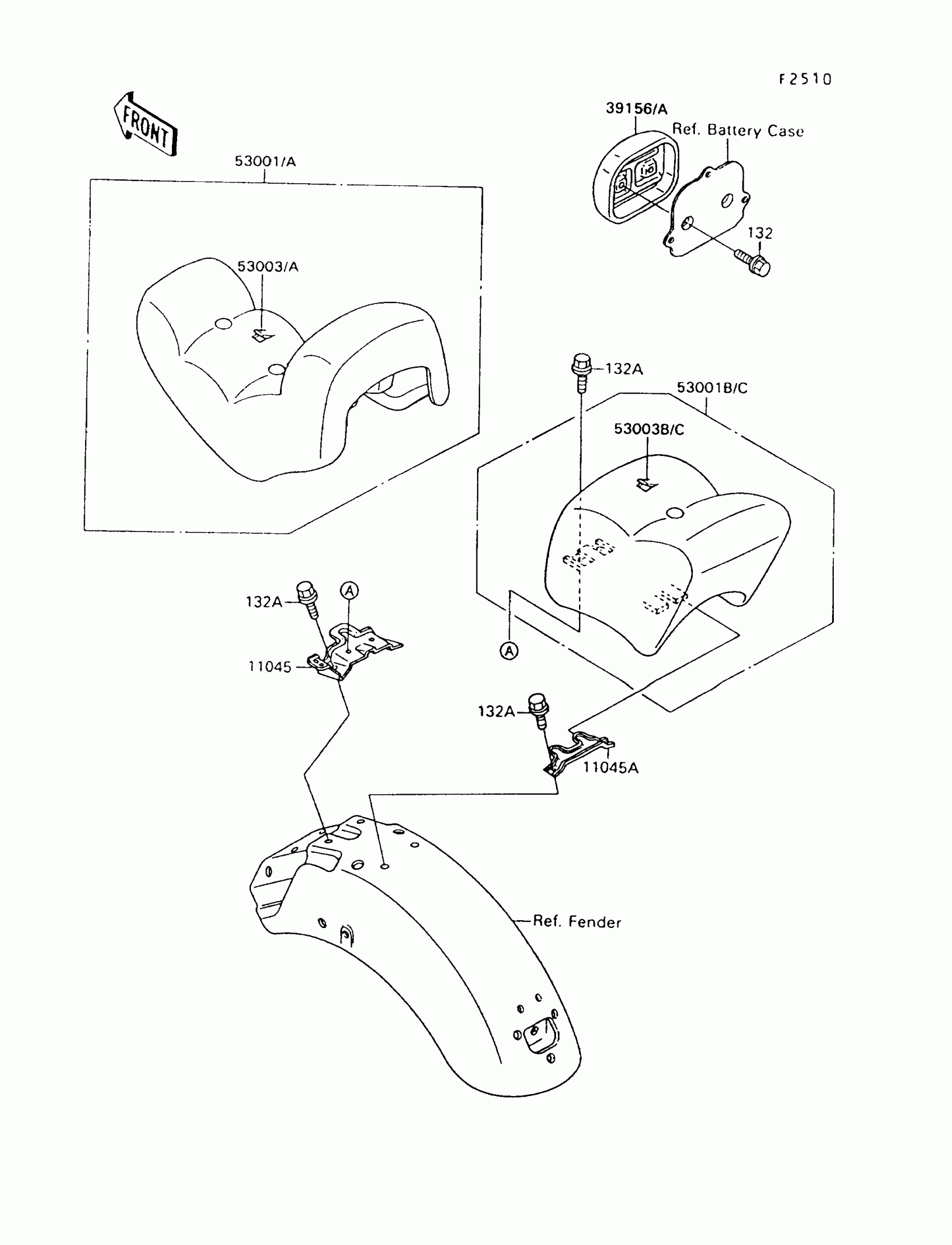

1991 Kawasaki Vulcan 88 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,REAR SEAT,FR

11045-1449

1
Out of stock

11045A

BRACKET,REAR SEAT,RR

11045-1450

1
Out of stock

39156

PAD,BACK REST

39156-1070

1
Out of stock

53001

SEAT-ASSY,FR

53001-1499

1

$609.34

In stock

53001A

SEAT-ASSY,RR

53001-1500

1
Out of stock

53003

LEATHER,FRONT SEAT

53003-1189

1
Out of stock

53003A

LEATHER,REAR SEAT

53003-1190

1
Out of stock

132

1

$3.75

In stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock
