1989 Kawasaki Vulcan 88 SE Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1989 Kawasaki Vulcan 88 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

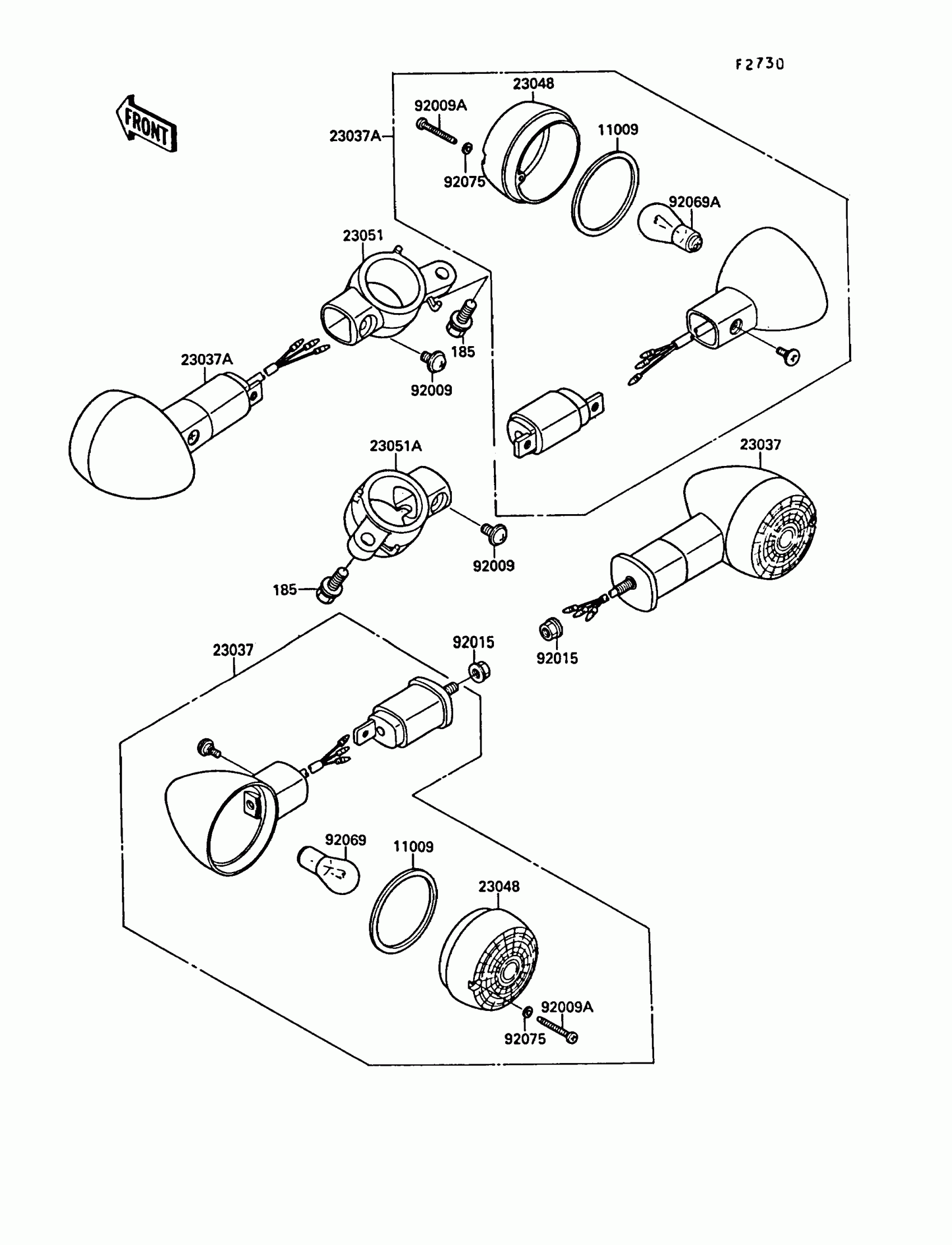

1989 Kawasaki Vulcan 88 SE Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP LENS

11009-1661

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR

23037-1244

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,FR

23037-1245

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1078

1
Out of stock

23051

BRACKET-SIGNAL LAMP,FR,LH

23051-1194

1
Out of stock

23051A

BRACKET-SIGNAL LAMP,FR,RH

23051-1195

1
Out of stock

92009

SCREW,6X8

92009-1294

1
Out of stock

92009A

SCREW,TAPPING,4X40

92009-1468

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92075

WASHER,PLAIN,4MM

23058-002

1
Out of stock

185

BOLT-UPSET-WSP-SMALL,8X22

185N0822

1
Out of stock
