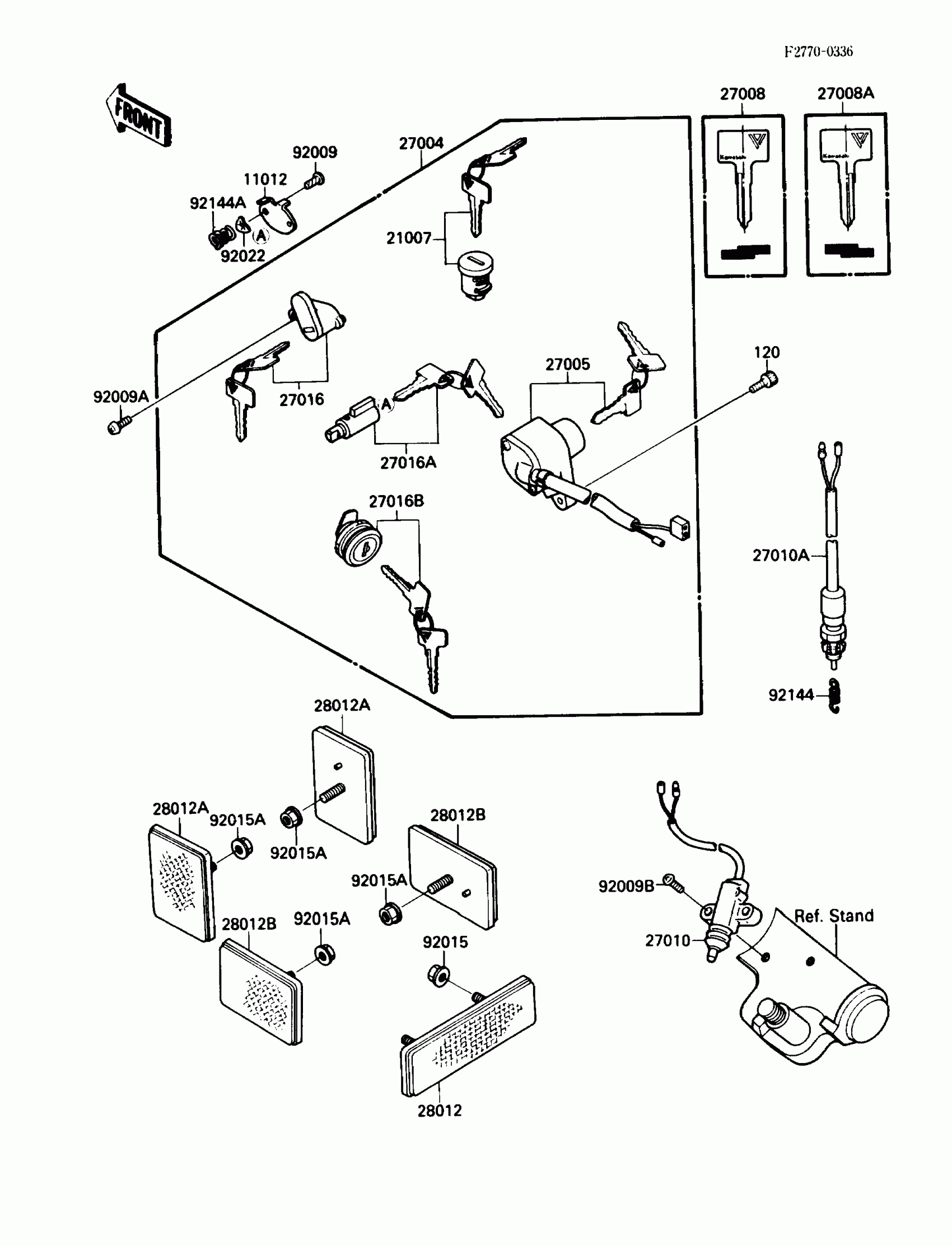

Kawasaki Vulcan 88 SE Ignition Switch/Locks/Reflectors Diagram

Description

Price

11012

CAP,STEERING LOCK

11012-1586

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5024

$74.13

27004

SWITCH-ASSY

27004-5319

$452.46

27005

SWITCH-ASSY-IGNITION

27005-1128

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1138

$19.58

27008A

KEY-LOCK,BLANK,#B

27008-1139

$16.89

27010

SWITCH,SIDE STAND

27010-1223

$73.52

27010A

SWITCH,REAR BRAKE

27010-1238

$35.81

27016

LOCK-ASSY,HELMET

27016-5129

$69.10

27016A

LOCK-ASSY,STEERING

27016-5131

$87.55

27016B

LOCK-ASSY,TOOL CASE COVER

27016-5133

Unavailable

28012

REFLECTOR-REFLEX,RR

28012-1005

$28.89

28012A

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012B

REFLECTOR-REFLEX,RR

28012-1051

$24.63

92009

SCREW,3.51MM

92008-007

$3.14

92009A

SCREW,5X12

92009-1296

$3.53

92009B

SCREW,5X20

92009-1459

$3.92

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,FLANGED,5MM

92015-1656

$2.00

92022

WASHER,WAVE

92097-003

$3.43

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92144A

SPRING,STEERING LOCK

92144-1222

$3.98

120

BOLT-SOCKET

120P0512

Unavailable
