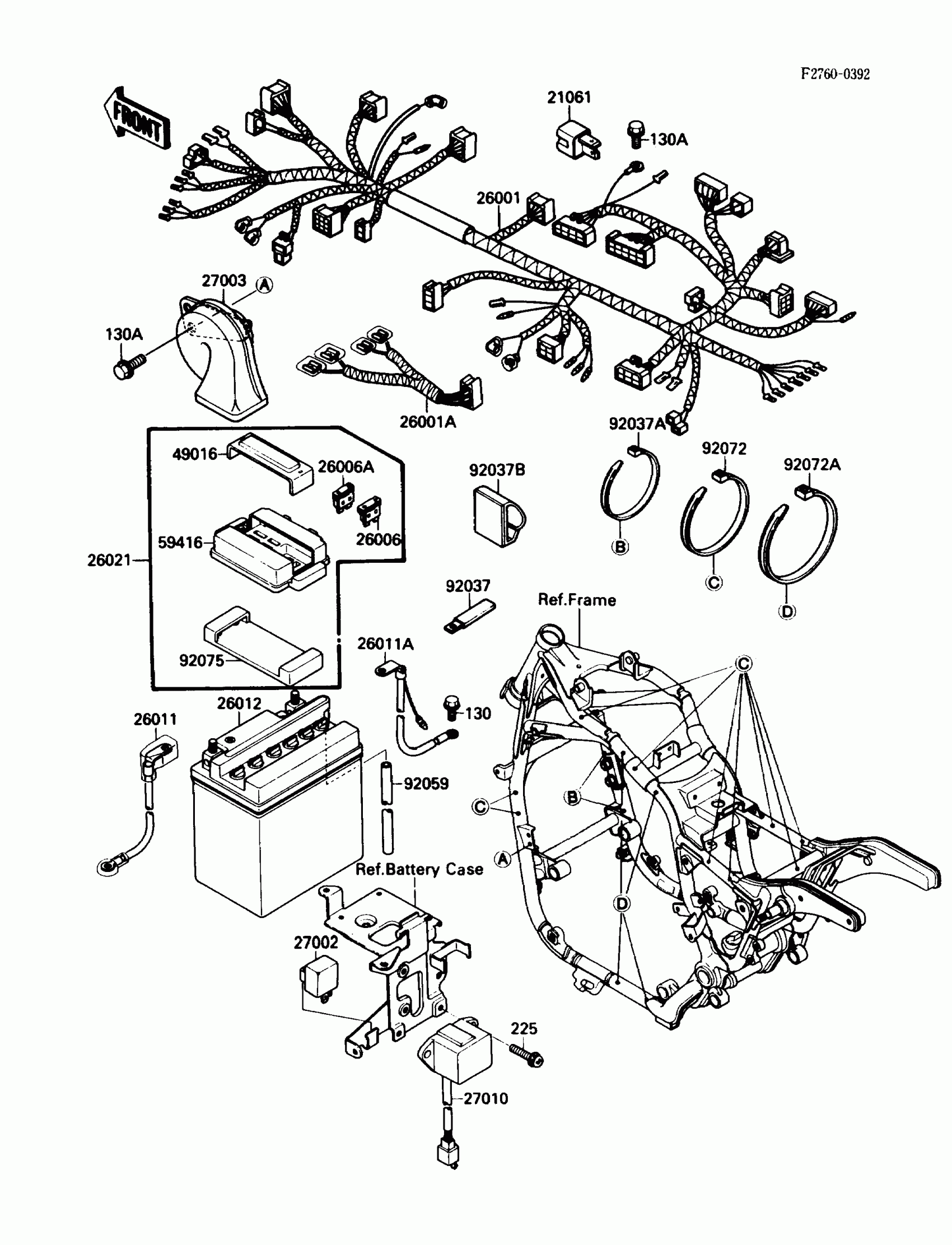

Find the part on the Chassis Electrical Equipment diagram for your 1989 Kawasaki Vulcan 88 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Vulcan 88 SE Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21061

RECTIFIER

21061-1003

1
Out of stock

26001

HARNESS,MAIN

26001-1857

1
Out of stock

26001A

HARNESS,IGNITION

26001-1862

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1391

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1392

1
Out of stock

26012

BATTERY,12V 20AH,Y50-N18L-A

26012-1187

1
Out of stock

26021

JUNCTION BOX

26021-1068

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

1
Out of stock

27003

HORN,LOW TONE

27003-1264

1
Out of stock

27010

SWITCH,RESERVE LIGHTING

27010-1069

1
Out of stock

49016

COVER-SEAL,FUSE

49016-1125

1
Out of stock

59416

CASE-ELECTRIC,JUNCTION BOX

59416-1065

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,BAND,L=137

92037-1817

1
Out of stock

92037B

CLAMP,WIRING HARNESS

92037-1954

1
Out of stock

92059

TUBE,5X8X570

92059-1840

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92075

DAMPER,JUNCTION BOX

92075-1688

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X10

130C0610

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock
